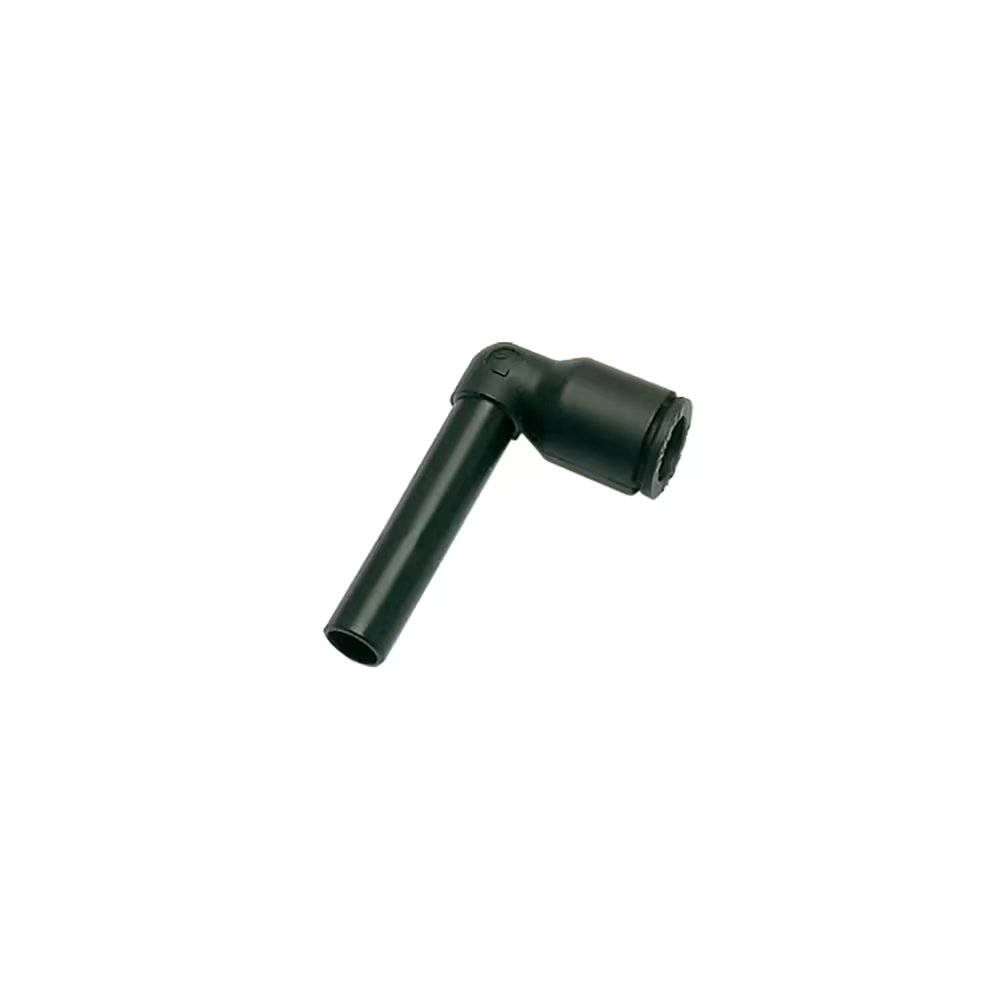

3184 04 06 by Parker | Legris Plug-In Fittings | 4 mm Push-to-Connect x 6 mm Tube Stem | 38.5 mm Length | 90° Elbow | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3184 Extended Equal and Unequal Plug-In Elbow
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $34.79 |
| 40–79 | $31.46 |
| 80+ | $27.76 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD1 | ØD2 | G | H | H1 | H2 | L | Kg |
| 3184 04 00 | 4 mm | 4 mm | 8.5 mm | 32.5 mm | 15.5 mm | 25 mm | 14 mm | .004 Kg |
| 3184 04 06 | 4 mm | 6 mm | 10.5 mm | 38.5 mm | 19 mm | 29 mm | 16 mm | .004 Kg |
| 3184 06 00 | 6 mm | 6 mm | 10.5 mm | 38.5 mm | 19 mm | 29 mm | 16 mm | .002 Kg |
| 3184 06 08 | 6 mm | 8 mm | 13.5 mm | 49 mm | 23.5 mm | 37 mm | 23 mm | .007 Kg |
| 3184 08 00 | 8 mm | 8 mm | 13.5 mm | 49 mm | 23.5 mm | 37 mm | 23 mm | .003 Kg |
| 3184 08 10 | 8 mm | 10 mm | 16 mm | 56 mm | 26.5 mm | 41.5 mm | 26.5 mm | .011 Kg |
| 3184 10 00 | 10 mm | 10 mm | 16 mm | 56 mm | 26.5 mm | 41.5 mm | 26.5 mm | .005 Kg |
| 3184 10 12 | 10 mm | 12 mm | 19 mm | 62.5 mm | 28 mm | 45.5 mm | 31 mm | .017 Kg |
| 3184 12 00 | 12 mm | 12 mm | 19 mm | 62.5 mm | 28 mm | 45.5 mm | 31 mm | .008 Kg |
The references in diameter 4mm and 12mm are not grooved in standard version
