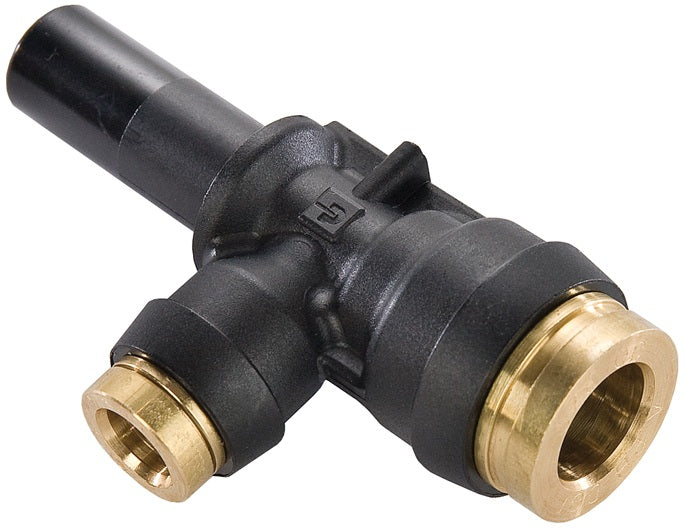

31835600DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Plug In Run Tee | 1/4" Tube OD | Composite/Brass

31835600DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Plug In Run Tee | 1/4" Tube OD | Composite/Brass

Sale price$14.31

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Plug In Run Tee | Tube End x Tube End x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.
Buy More, Save More!
Quantity Price Each
10–39 $13.45
40–79 $12.16
80+ $11.45
Discounts applied in cart/checkout.
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body (Unless noted below)
  • Brass collet
  • Stainless steel tube support
  • Nitrile Rubber seal
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • Complies with the performance requirements of D.O.T FMVSS 571.106 (SAE J1131) and SAE J2494-3.
Part Number Tube O.D.
31835600DOT 1/4"

Product Data:

Shape:

Tee

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • 1/4in Push-to-Connect
  • Some Ends Match
Material(s):
  • Plastic
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
