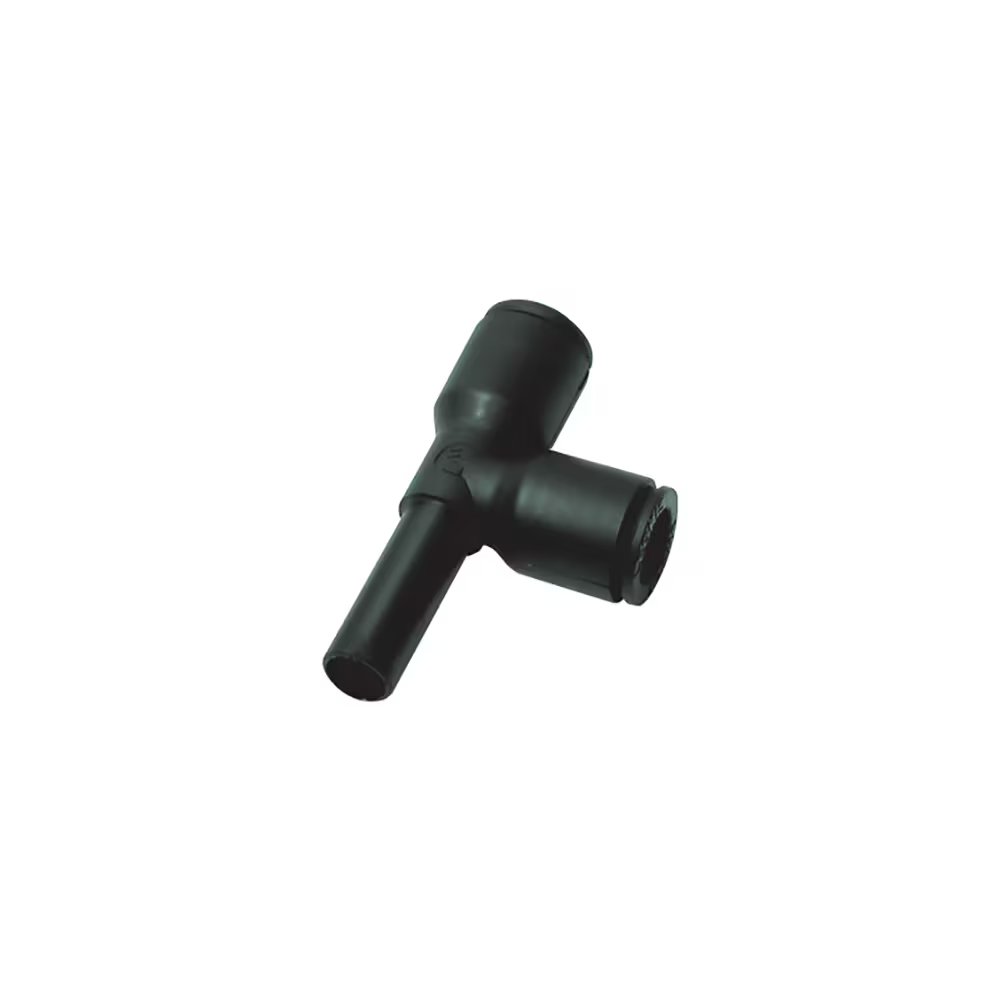

3183 10 12 by Parker | Legris Plug-In Fittings | 10 mm Push-to-Connect x 12mm Tube Stem | 65.5 mm Length | Tee | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3183 Equal and Unequal Plug-In Run Tee
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $83.99 |
| 20–59 | $75.95 |
| 60+ | $67.01 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD1 | ØD2 | G | H | H1 | H2 | L | Kg |
| 3183 04 00 | 4 mm | 4 mm | 8.5 mm | 33 mm | 6 mm | 15.5 mm | 14.5 mm | .002 Kg |
| 3183 04 06 | 4 mm | 6 mm | 10.5 mm | 38.5 mm | 7 mm | 17 mm | 17.5 mm | .006 Kg |
| 3183 06 00 | 6 mm | 6 mm | 10.5 mm | 38.5 mm | 7 mm | 17 mm | 17 mm | .002 Kg |
| 3183 06 08 | 6 mm | 8 mm | 13.5 mm | 48.5 mm | 8 mm | 21.5 mm | 23 mm | .014 Kg |
| 3183 08 00 | 8 mm | 8 mm | 13.5 mm | 49 mm | 8 mm | 21.5 mm | 23 mm | .004 Kg |
| 3183 08 10 | 8 mm | 10 mm | 16 mm | 56.5 mm | 10.5 mm | 24.5 mm | 26.5 mm | .018 Kg |
| 3183 10 00 | 10 mm | 10 mm | 16 mm | 57 mm | 10.5 mm | 24.5 mm | 26.5 mm | .007 Kg |
| 3183 10 12 | 10 mm | 12 mm | 19 mm | 65.5 mm | 10.5 mm | 27.5 mm | 31 mm | .034 Kg |
| 3183 12 00 | 12 mm | 12 mm | 19 mm | 65.5 mm | 10.5 mm | 27.5 mm | 31 mm | .011 Kg |
