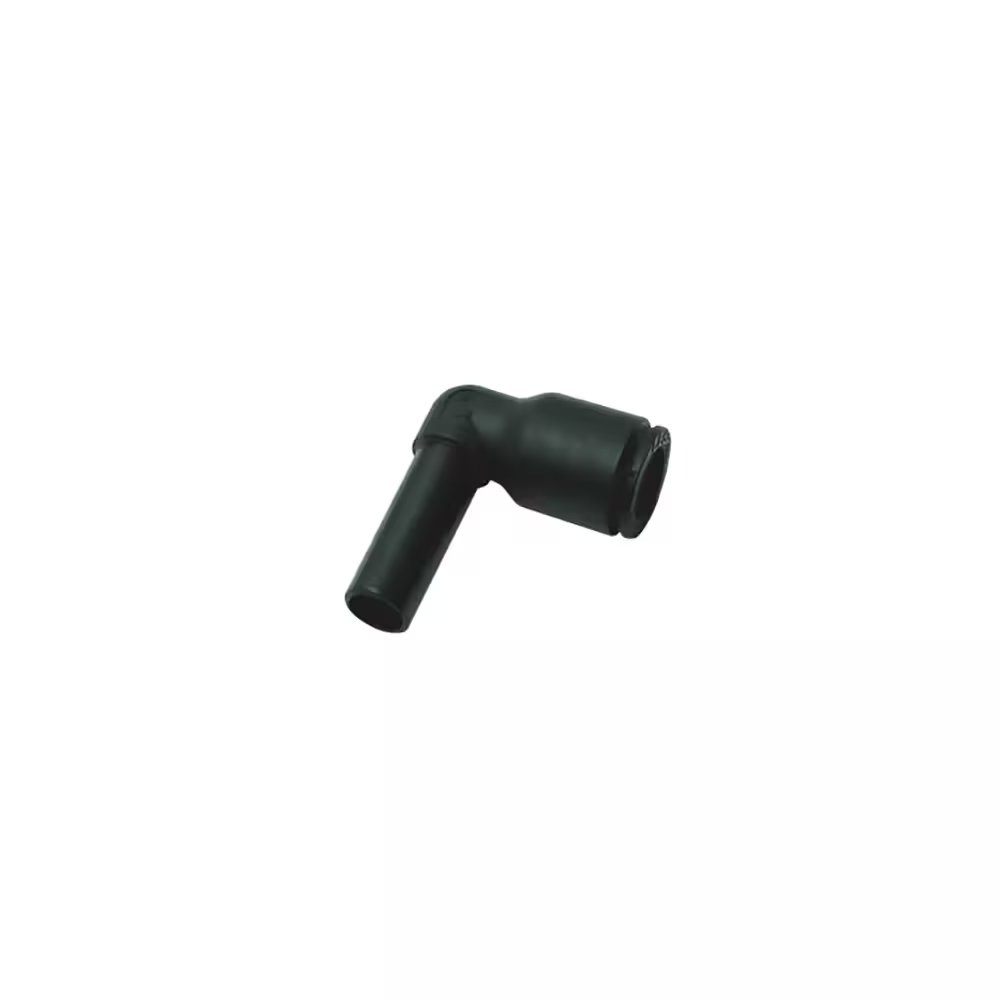

3182 04 06 by Parker | Legris Plug-In Fittings | 4 mm Push-to-Connect x 6 mm Tube Stem | 26.5 mm Length | 90° Elbow | Polymer | Pack of 10

3182 04 06 by Parker | Legris Plug-In Fittings | 4 mm Push-to-Connect x 6 mm Tube Stem | 26.5 mm Length | 90° Elbow | Polymer | Pack of 10

Sale price$37.01

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3182 Equal and Unequal Plug-In Elbow

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $34.79
40–79 $31.46
80+ $27.76
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3182 Series
Shape:

90° Elbow
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 G H H1 H2 L Kg
3182 04 00 4 mm 4 mm 8.5 mm 23 mm 6 mm 15.5 mm 14 mm .005 Kg
3182 04 06 4 mm 6 mm 10.5 mm 26.5 mm 7 mm 17 mm 16 mm .004 Kg
3182 06 04 6 mm 4 mm 10.5 mm 24.5 mm 7 mm 15.5 mm 16 mm .001 Kg
3182 06 00 6 mm 6 mm 10.5 mm 26.5 mm 7 mm 17 mm 16 mm .001 Kg
3182 06 08 6 mm 8 mm 13.5 mm 33.5 mm 8 mm 21.5 mm 23 mm .007 Kg
3182 08 00 8 mm 8 mm 13.5 mm 33.5 mm 8 mm 21.5 mm 23 mm .003 Kg
3182 08 10 8 mm 10 mm 16 mm 39 mm 10 mm 24.5 mm 26.5 mm .010 Kg
3182 10 00 10 mm 10 mm 16 mm 39 mm 10 mm 24.5 mm 26.5 mm .004 Kg
3182 10 12 10 mm 12 mm 19 mm 44.5 mm 10.5 mm 27.5 mm 31 mm .016 Kg
3182 12 00 12 mm 12 mm 19 mm 45.5 mm 10.5 mm 27.5 mm 31 mm .007 Kg

The references in diameter 4mm and 12mm are not grooved in standard version
