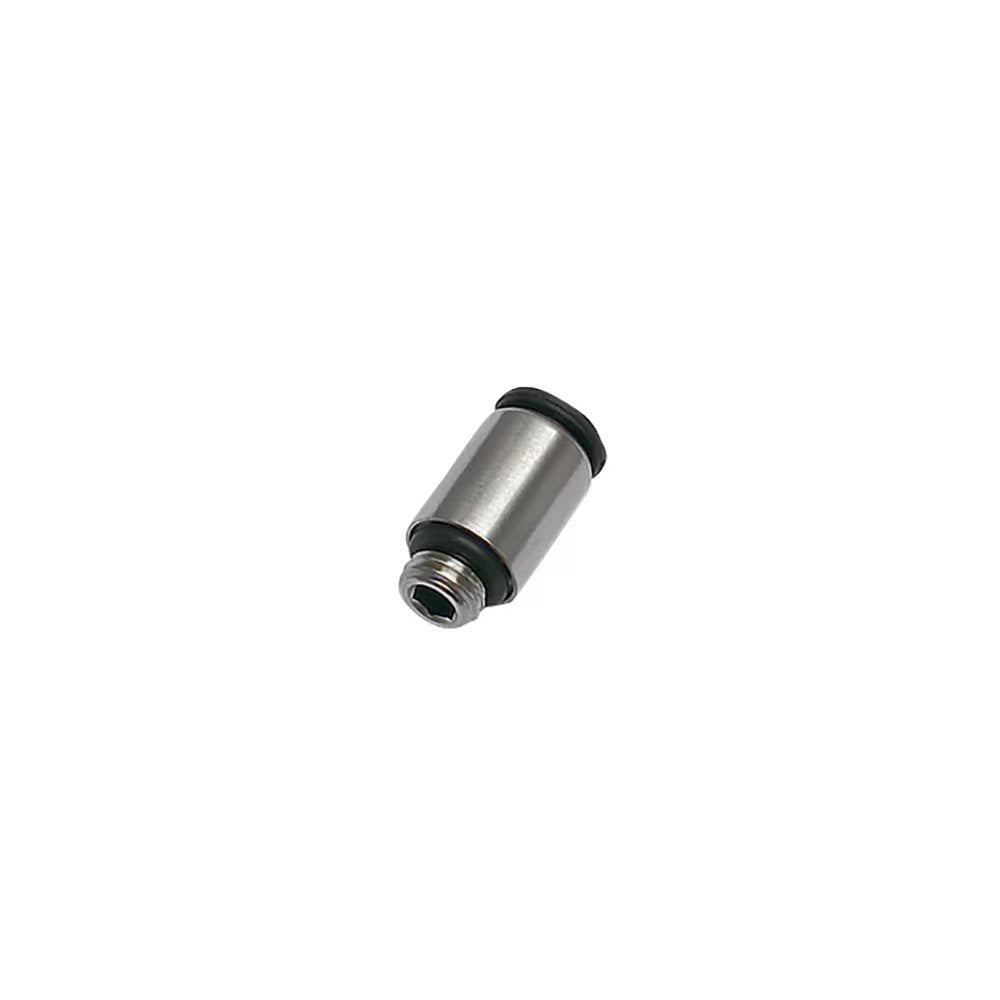

3181 06 55 by Parker | Legris Stud Fitting | 6 mm Push-to-Connect x M7x1 Male M7 Thread | Straight | Polymer | Pack of 10

3181 06 55 by Parker | Legris Stud Fitting | 6 mm Push-to-Connect x M7x1 Male M7 Thread | Straight | Polymer | Pack of 10

Sale price$96.37

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3181 Stud Fitting Round Body, Male Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $90.59
30–59 $81.91
60+ $72.28
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3181 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F1 F2 H Kg
3181 04 19 4 mm M5x0.8 3.5 mm 2.5 mm 8.5 mm 14.5 mm .003 Kg
3181 04 55 4 mm M7x1 5 mm 3 mm 10 mm 14 mm .004 Kg
3181 06 19 6 mm M5x0.8 3.5 mm 2.5 mm 11 mm 16.5 mm .005 Kg
3181 06 55 6 mm M7x1 5 mm 3 mm 10 mm 16 mm .005 Kg

The internal hexagon and circular external shape ensure that model 3181 provides highly compact assembly

They can be easily installed with an Allen key without the need of a spanner.
