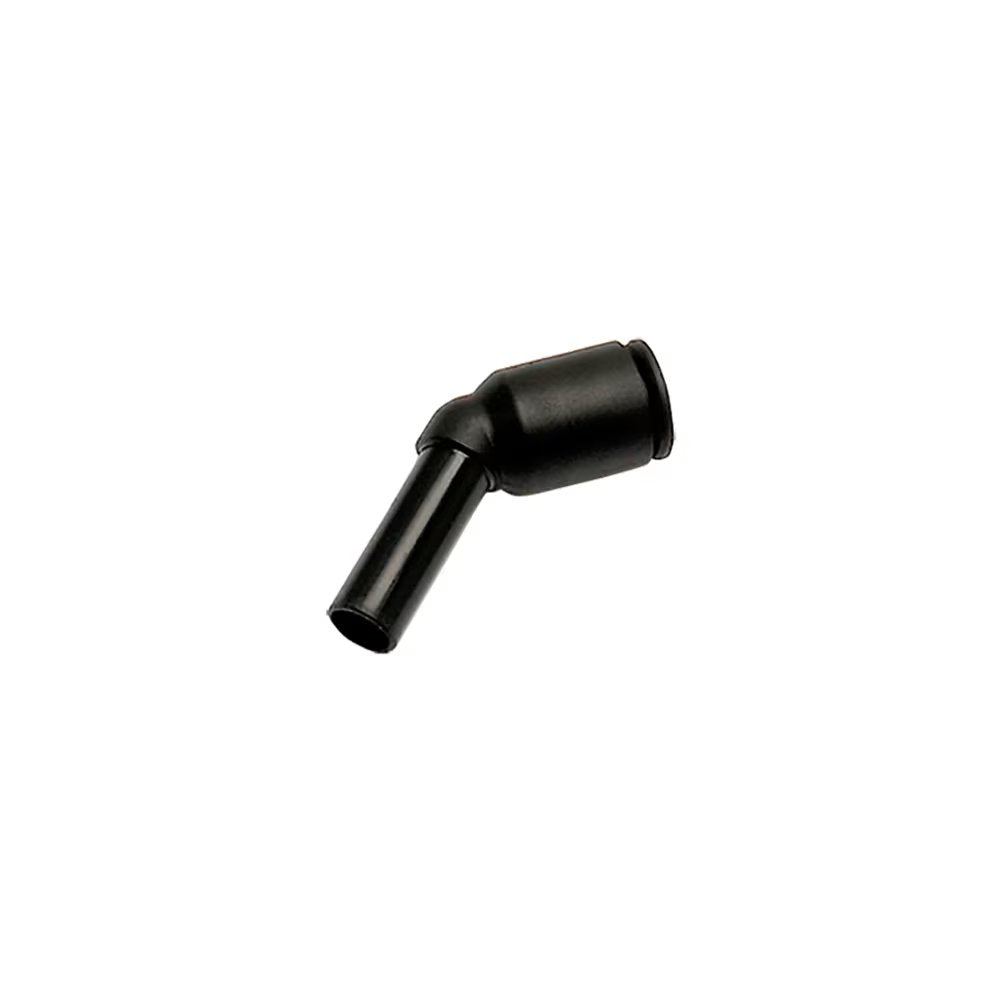

3180 08 00 by Parker | Legris Plug-In Fittings | 8 mm Push-to-Connect x 8 mm Tube Stem | 44 mm Length | 45° Elbow | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3180 45° Plug-In Equal Elbow
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $32.80 |
| 40–79 | $29.66 |
| 80+ | $26.17 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD1 | ØD2 | G | H | H1 | H2 | L | Kg |
| 3180 04 00 | 4 mm | 4 mm | 9 mm | 33.5 mm | 19 mm | 21 mm | 13 mm | .001 Kg |
| 3180 06 00 | 6 mm | 6 mm | 11 mm | 39 mm | 21 mm | 25 mm | 14.5 mm | .002 Kg |
| 3180 08 00 | 8 mm | 8 mm | 13.5 mm | 44 mm | 21.5 mm | 25.5 mm | 19.5 mm | .003 Kg |
| 3180 10 00 | 10 mm | 10 mm | 16 mm | 53 mm | 27 mm | 32.5 mm | 23 mm | .004 Kg |
| 3180 12 00 | 12 mm | 12 mm | 19 mm | 58.5 mm | 27.5 mm | 34 mm | 26.5 mm | .007 Kg |
