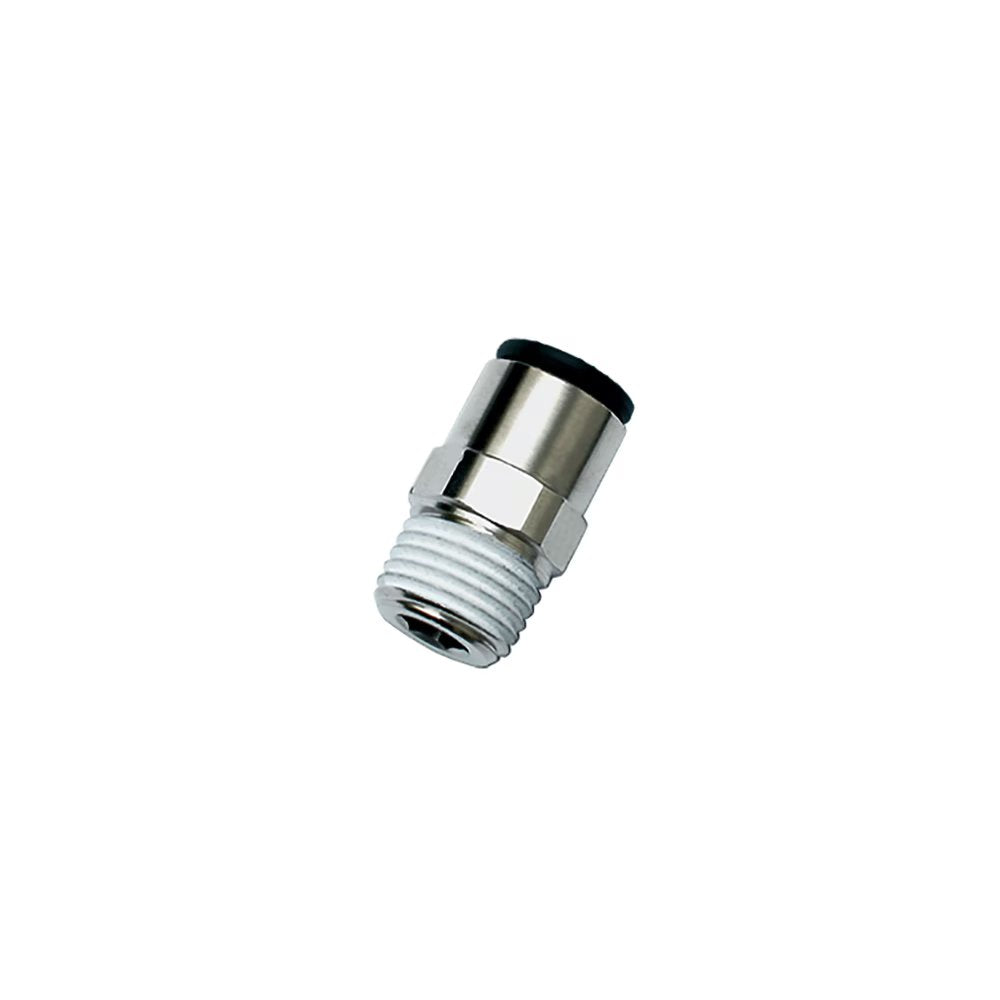

3175 60 17 by Parker | Legris Stud Fitting | 3/8" Push-to-Connect x 3/8" Male BSPT Thread | 17 mm Hex | Straight | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3175 Stud Fitting, Male BSPT Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $102.27 |
| 20–59 | $92.48 |
| 60+ | $81.60 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | C | F1 | F2 | H | Kg |
| 3175 53 10 | 1/8" | 1/8" | 11 mm | 3 mm | 8.5 mm | .005 Kg |
| 3175 55 10 | 3/16" | 1/8" | 11.1 mm | 3.2 mm | 15.5 mm | .009 Kg |
| 3175 55 13 | 3/16" | 1/4" | 14.3 mm | 4 mm | 15 mm | .020 Kg |
| 3175 56 10 | 1/4" | 1/8" | 11 mm | 4 mm | 12 mm | .006 Kg |
| 3175 56 13 | 1/4" | 1/4" | 14 mm | 4 mm | 9.5 mm | .021 Kg |
| 3175 60 13 | 3/8" | 1/4" | 17 mm | 7 mm | 16.5 mm | .019 Kg |
| 3175 60 17 | 3/8" | 3/8" | 17 mm | 7 mm | 16.5 mm | .019 Kg |
| 3175 60 21 | 3/8" | 1/2" | 21 mm | 7 mm | 14 mm | .037 Kg |
| 3175 62 13 | 1/2" | 1/4" | 22 mm | 6 mm | 26.9 mm | .044 Kg |
| 3175 62 17 | 1/2" | 3/8" | 22 mm | 7 mm | 25.9 mm | .048 Kg |
| 3175 62 21 | 1/2" | 1/2" | 24 mm | 7 mm | 20.5 mm | .049 Kg |
Pre-coated thread
