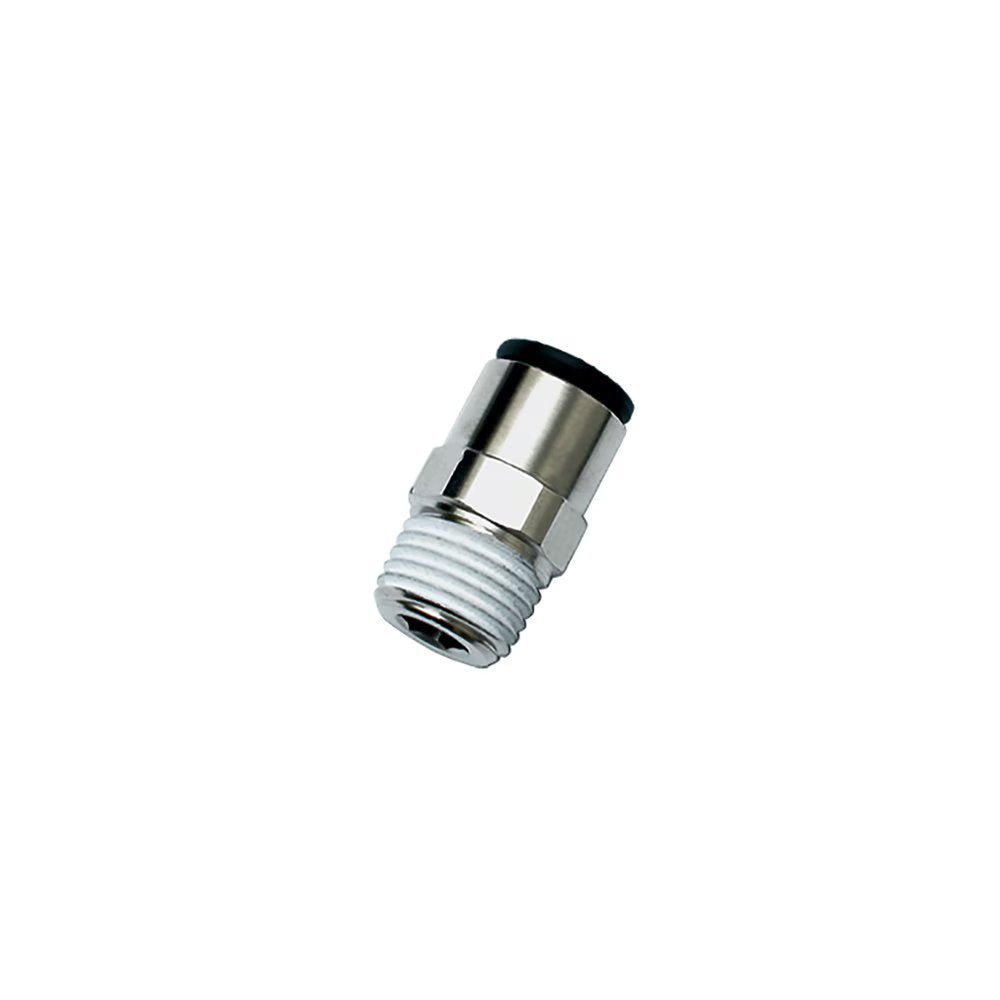

3175 04 13 by Parker | Legris Stud Fitting | 4 mm Push-to-Connect x 1/4" Male BSPT Thread | 14 mm Hex | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3175 Stud Fitting, Male BSPT Thread
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | C | F1 | F2 | H | Kg |
| 3175 04 10 | 4 mm | 1/8" | 10 mm | 3 mm | 9.5 mm | .005 Kg |
| 3175 04 13 | 4 mm | 1/4" | 14 mm | 3 mm | 6.5 mm | .011 Kg |
| 3175 04 17 | 4 mm | 3/8" | 17 mm | 3 mm | 8 mm | .024 Kg |
| 3175 06 10 | 6 mm | 1/8" | 11 mm | 4 mm | 11.5 mm | .005 Kg |
| 3175 06 13 | 6 mm | 1/4" | 14 mm | 4 mm | 8.5 mm | .011 Kg |
| 3175 06 17 | 6 mm | 3/8" | 17 mm | 4 mm | 8.5 mm | .021 Kg |
| 3175 06 21 | 6 mm | 1/2" | 21 mm | 4 mm | 9 mm | .043 Kg |
| 3175 08 10 | 8 mm | 1/8" | 13 mm | 5 mm | 20 mm | .011 Kg |
| 3175 08 13 | 8 mm | 1/4" | 14 mm | 6 mm | 17 mm | .014 Kg |
| 3175 08 17 | 8 mm | 3/8" | 17 mm | 6 mm | 13 mm | .021 Kg |
| 3175 08 21 | 8 mm | 1/2" | 21 mm | 6 mm | 12 mm | .039 Kg |
| 3175 10 10 | 10 mm | 1/8" | 16 mm | 5 mm | 22.5 mm | .017 Kg |
| 3175 10 13 | 10 mm | 1/4" | 16 mm | 7 mm | 20 mm | .017 Kg |
| 3175 10 17 | 10 mm | 3/8" | 17 mm | 8 mm | 16.5 mm | .019 Kg |
| 3175 10 21 | 10 mm | 1/2" | 21 mm | 8 mm | 14 mm | .036 Kg |
| 3175 12 13 | 12 mm | 1/4" | 19 mm | 7 mm | 26.5 mm | .029 Kg |
| 3175 12 17 | 12 mm | 3/8" | 19 mm | 9 mm | 24 mm | .028 Kg |
| 3175 12 21 | 12 mm | 1/2" | 21 mm | 10 mm | 19.5 mm | .036 Kg |
| 3175 14 17 | 14 mm | 3/8" | 22 mm | 9 mm | 28.5 mm | .044 Kg |
| 3175 14 21 | 14 mm | 1/2" | 24 mm | 10 mm | 23.5 mm | .046 Kg |
| 3175 16 17 | 16 mm | 3/8" | 27 mm | 9 mm | 32.5 mm | .068 Kg |
| 3175 16 21 | 16 mm | 1/2" | 27 mm | 12 mm | 32.5 mm | .079 Kg |
Pre-coated thread
