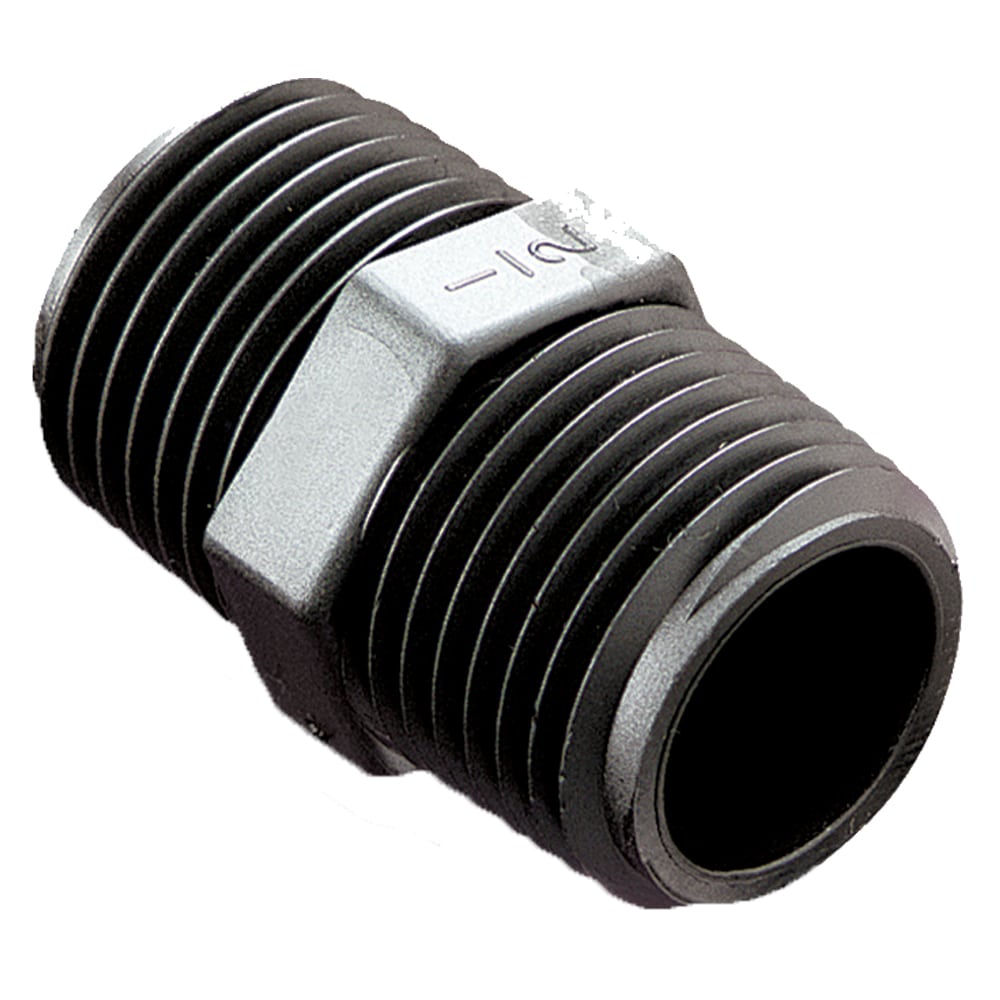

316P-8-4PP by Parker | Pipe Fitting | 1/2" Male NPT Pipe Thread x 1/4" Male NPT Pipe Thread | 7/8" Hex | 1.36" Length | Straight | Black | Polypropylene
Minimum Order Quantity: 10 Units
by Parker Hannifin
Par-Barb® Fittings:Hex Nipple 316P
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.29 |
| 40–79 | $1.16 |
| 80+ | $1.03 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | Up to 125 PSI (8.6 bar) |
| Temperature Range: | Nylon: -40° to +200° F (-40° to +93.3° C) Polypropylene: 0° to +212° F (-12.2° to +100° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| White Nylon Part Number | Black Polypropylene Part Number | NPT Pipe Thread Side 1 | NPT Pipe Thread Side 2 | Hex (C) | L | Flow Diameter (D) |
| 316P-2N | 316P-2PP | 1/8" | 1/8" | 7/16" | .99" | .22" |
| 316P-4-2N | 316P-4-2PP | 1/4" | 1/8" | 9/16" | 1.13" | .22" |
| 316P-4N | 316P-4PP | 1/4" | 1/4" | 9/16" | 1.24" | .31" |
| 316P-6-2N | 316P-6-2PP | 3/8" | 1/8" | 11/16" | 1.11" | .22" |
| 316P-6-4N | 316P-6-4PP | 3/8" | 1/4" | 11/16" | 1.25" | .31" |
| 316P-6N | 316P-6PP | 3/8" | 3/8" | 11/16" | 1.23" | .43" |
| 316P-8-2N | 316P-8-2PP | 1/2" | 1/8" | 7/8" | 1.23" | .22" |
| 316P-8-4N | 316P-8-4PP | 1/2" | 1/4" | 7/8" | 1.36" | .31" |
| 316P-8-6N | 316P-8-6PP | 1/2" | 3/8" | 7/8" | 1.35" | .43" |
| 316P-8N | 316P-8PP | 1/2" | 1/2" | 7/8" | 1.45" | .59" |
| 316P-12-8N | 316P-12-8PP | 3/4" | 1/2" | 1-1/8" | 1.47" | .59" |
| 316P-12N | 316P-12PP | 3/4" | 3/4" | 1-1/8" | 1.48" | .74" |
