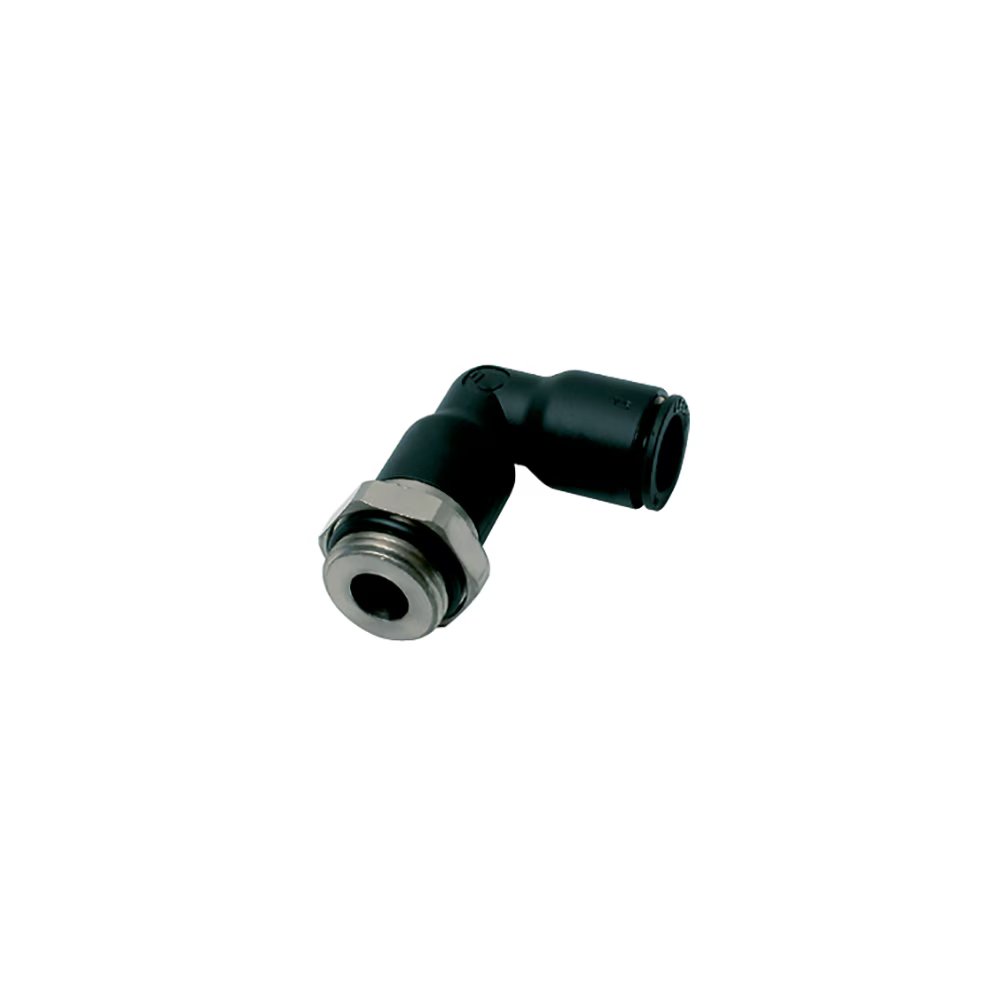

3169 12 13 by Parker | Legris Stud Fitting | 12 mm Push-to-Connect x 1/4" Male Swivel BSPP Thread | 19 mm Hex | 90° Elbow | Polymer | Pack of 10

3169 12 13 by Parker | Legris Stud Fitting | 12 mm Push-to-Connect x 1/4" Male Swivel BSPP Thread | 19 mm Hex | 90° Elbow | Polymer | Pack of 10

Sale price$143.67

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3169 Extended Stud Elbow, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $135.05
20–59 $122.12
60+ $107.75
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3169 Series
Shape:

90° Elbow
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F G H L Kg
3169 04 19 4 mm M5x0.8 3.5 mm 8 mm 8.5 mm 23 mm 19 mm .006 Kg
3169 04 10 4 mm 1/8" 5 mm 13 mm 8.5 mm 22.5 mm 19 mm .008 Kg
3169 04 13 4 mm 1/4" 5.5 mm 16 mm 8.5 mm 22.5 mm 19 mm .014 Kg
3169 06 19 6 mm M5x0.8 3.5 mm 10 mm 10.5 mm 27.5 mm 23 mm .008 Kg
3169 06 55 4 mm M7x1 4.5 mm 10 mm 10.5 mm 26 mm 23 mm .012 Kg
3169 06 10 6 mm 1/8" 5 mm 13 mm 10.5 mm 27 mm 23 mm .011 Kg
3169 06 13 6 mm 1/4" 5.5 mm 16 mm 10.5 mm 27 mm 23 mm .016 Kg
3169 08 10 8 mm 1/8" 5 mm 13 mm 13.5 mm 36 mm 29.5 mm .018 Kg
3169 08 13 8 mm 1/4" 5.5 mm 16 mm 13.5 mm 33 mm 29.5 mm .021 Kg
3169 08 17 8 mm 3/8" 5.5 mm 20 mm 13.5 mm 33 mm 29.5 mm .028 Kg
3169 10 13 10 mm 1/4" 5.5 mm 16 mm 16 mm 40.5 mm 34.5 mm .028 Kg
3169 10 17 10 mm 3/8" 5.5 mm 20 mm 16 mm 40.5 mm 34.5 mm .036 Kg
3169 10 21 10 mm 1/2" 7 mm 24 mm 16 mm 40.5 mm 34.5 mm .049 Kg
3169 12 13 12 mm 1/4" 5.5 mm 19 mm 19 mm 44.5 mm 40.5 mm .044 Kg
3169 12 17 12 mm 3/8" 5.5 mm 20 mm 19 mm 42 mm 40.5 mm .038 Kg
3169 12 21 12 mm 1/2" 7 mm 24 mm 19 mm 42 mm 40.5 mm .043 Kg
3169 14 17 14 mm 3/8" 5.5 mm 22 mm 22 mm 51 mm 46.5 mm .059 Kg
3169 14 21 14 mm 1/2" 7 mm 24 mm 22 mm 48.5 mm 46.5 mm .063 Kg
3169 16 17 16 mm 3/8" 7.5 mm 27 mm 27 mm 82.5 mm 52 mm .220 Kg
3169 16 21 16 mm 1/2" 9 mm 27 mm 27 mm 82.5 mm 52 mm .206 Kg

The body swivels for positioning purposes.
