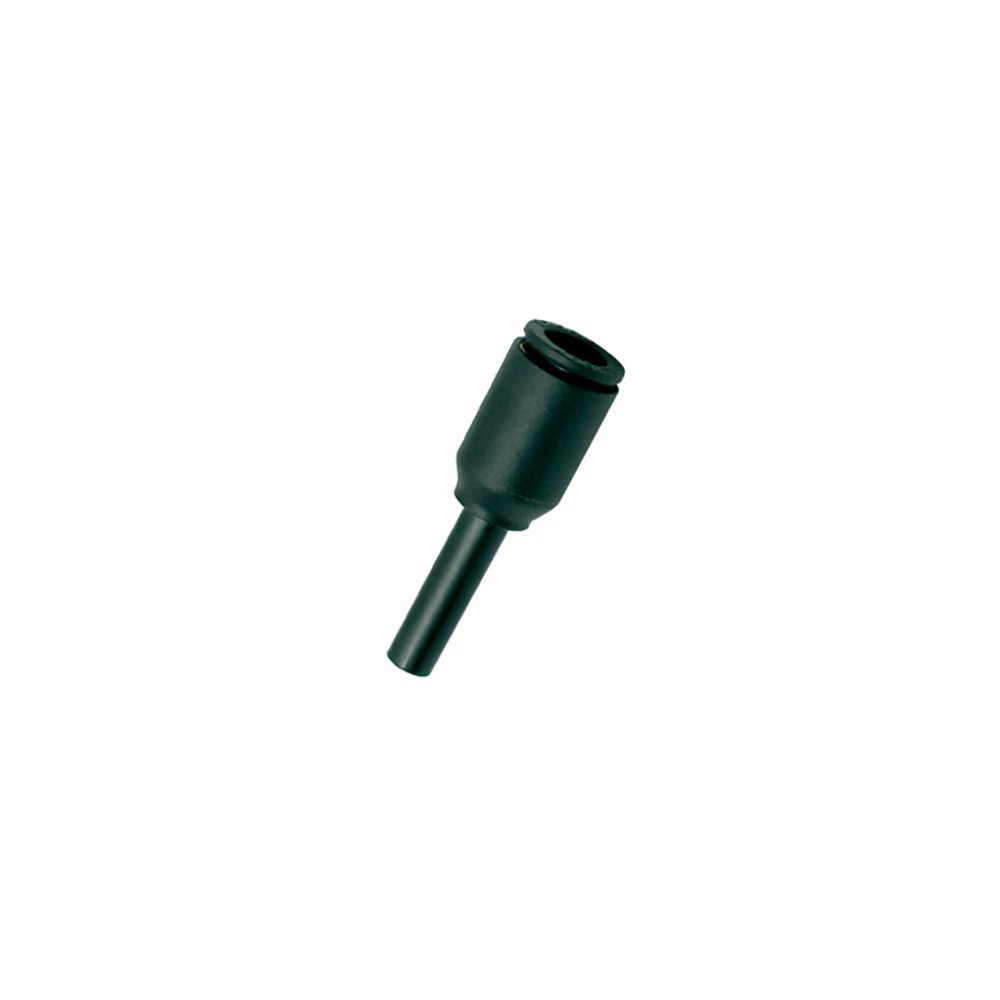

3168 56 04 by Parker | Legris Plug-In Fittings | 1/4" Push-to-Connect x 5/32" Tube Stem Increaser | 41mm Length | Straight | Polymer | Pack of 10

3168 56 04 by Parker | Legris Plug-In Fittings | 1/4" Push-to-Connect x 5/32" Tube Stem Increaser | 41mm Length | Straight | Polymer | Pack of 10

Sale price$26.37

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3168 Plug-In Increaser

Package Quantity: 10 Units

In stock
Buy More, Save More!
Quantity Price Each
10–39 $24.79
40–79 $22.41
80+ $19.78
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3168 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 G L L1 Kg
3168 56 53 1/4" 1/8" .43" 1.61" 1.16" .024 Kg
3168 56 06 1/4" 6 mm .53" 1.75" 1.02" .0062 Kg
3168 56 55 1/4" 3/16" 20.5 mm 41 mm 25 mm .002 Kg
3168 56 04 1/4" 5/32" 11 mm 41 mm 29 mm .002 Kg
3168 60 56 3/8" 1/4" .63" 1.58" 1.00" .0079 Kg
