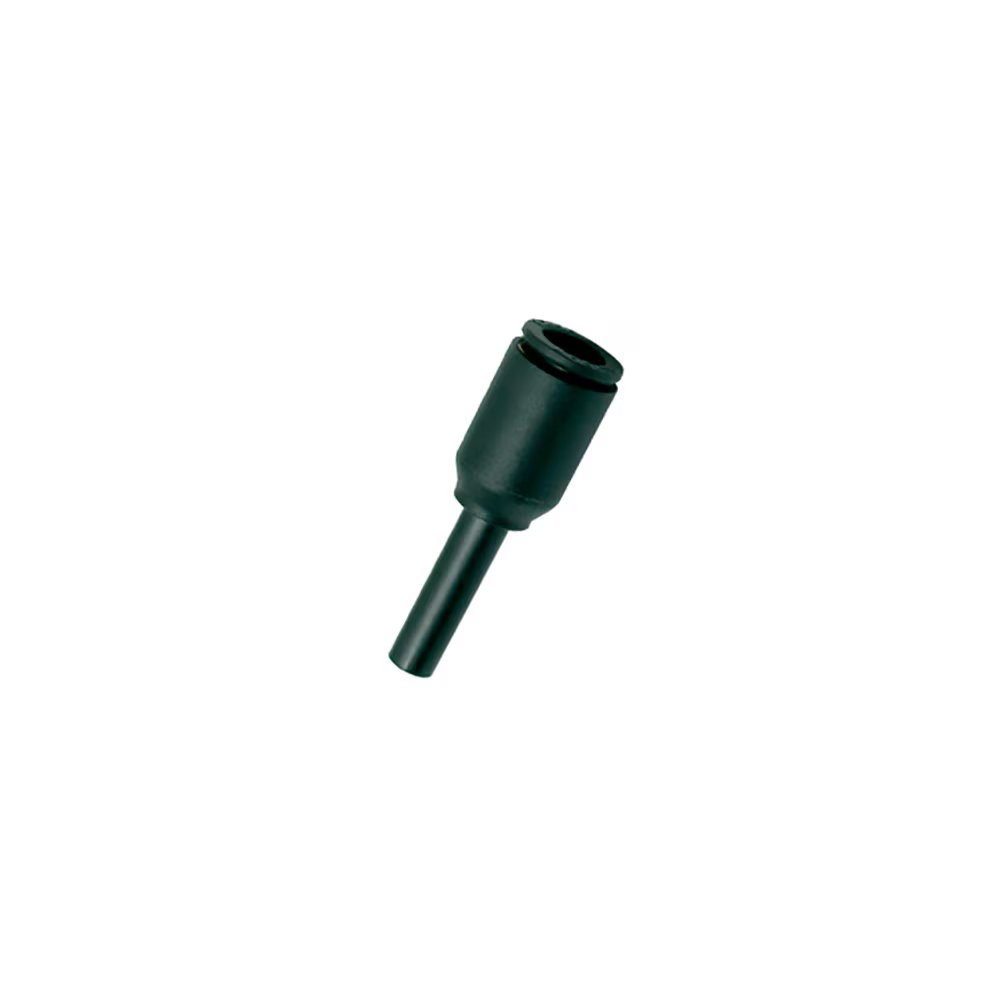

3168 08 06 by Parker | Legris Plug-In Fittings | 8 mm Push-to-Connect x 6 mm Tube Stem Increaser | 45 mm Length | Straight | Polymer | Pack of 10
| Quantity | Price Each |
| 50–99 | $34.92 |
| 100+ | $31.04 |
Discounts applied at checkout.
by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3168 Plug-In Increaser
Package Quantity: 10 Units
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD1 | ØD2 | G | L | L1 | Kg |
| 3168 04 53 | 4 mm | 1/8" | .43" | 1.61" | 1.16" | .0277 kg |
| 3168 06 04 | 6 mm | 4 mm | 10.5 mm | 35 mm | 23 mm | .002 kg |
| 3168 08 06 | 8 mm | 6 mm | 13.5 mm | 45 mm | 31.5 mm | .003 kg |
| 3168 08 56 | 8 mm | 1/4" | 16 mm | 40 mm | 25.5 mm | .009 kg |
| 3168 10 08 | 10 mm | 8 mm | 16 mm | 42.5 mm | 21 mm | .004 kg |
| 3168 12 10 | 12 mm | 10 mm | 19 mm | 49 mm | 24.5 mm | .006 kg |
