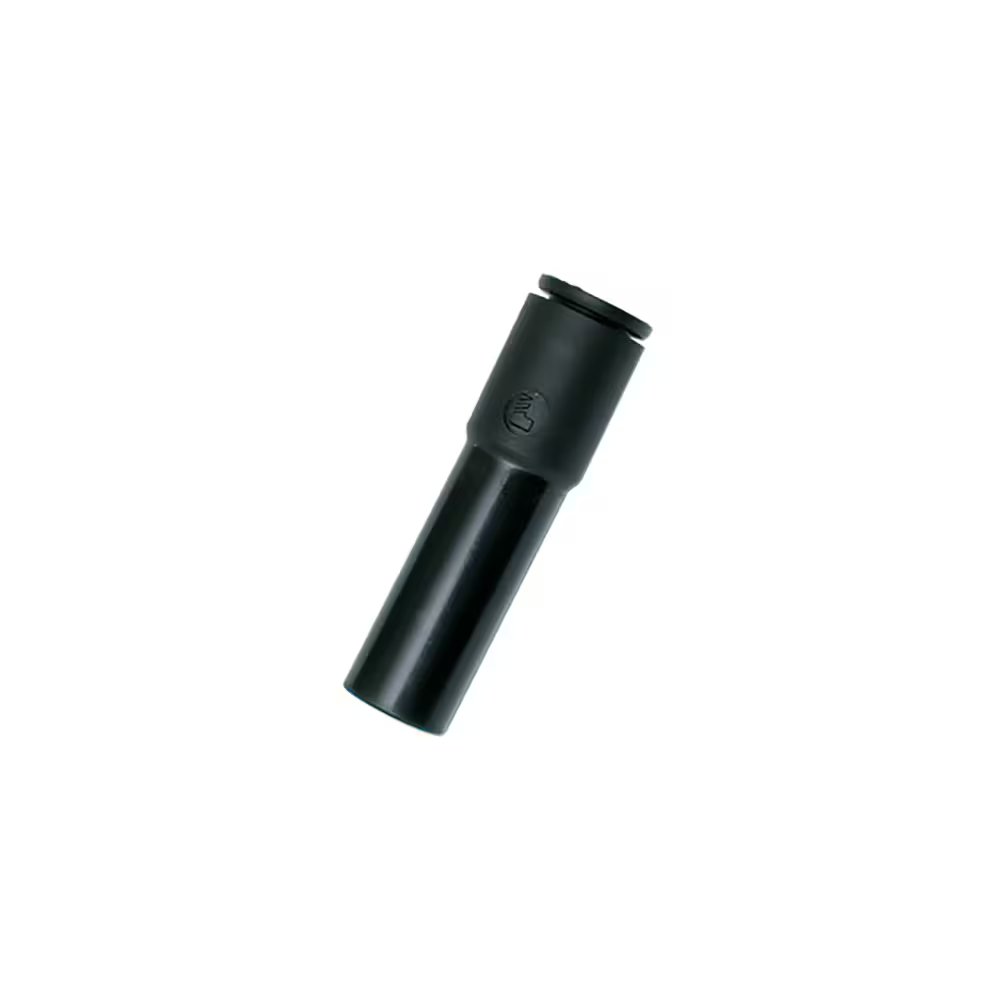

3166 04 10 by Parker | Legris Plug-In Fittings | 4 mm Push-to-Connect x 10 mm Tube Stem Reducer | 38 mm Length | Straight | Polymer | Pack of 10

3166 04 10 by Parker | Legris Plug-In Fittings | 4 mm Push-to-Connect x 10 mm Tube Stem Reducer | 38 mm Length | Straight | Polymer | Pack of 10

Sale price$60.45

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3166 Plug-In Reducer

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $56.82
40–79 $51.38
80+ $45.34
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3166 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 G L L1 Kg
3166 03 04 3 mm 4 mm 8.5 mm 37.5 mm 23.5 mm .002 Kg
3166 04 06 4 mm 6 mm 8.5 mm 37.5 mm 23.5 mm .001 Kg
3166 04 08 4 mm 8 mm 8.5 mm 37.5 mm 19 mm .001 Kg
3166 04 10 4 mm 10 mm 10.5 mm 38 mm 18 mm .003 Kg
3166 06 08 6 mm 8 mm 10.5 mm 37.5 mm 20 mm .001 Kg
3166 06 10 6 mm 10 mm 10.5 mm 38 mm 17.5 mm .002 Kg
3166 06 12 6 mm 12 mm 14.5 mm 46 mm 23 mm .005 Kg
3166 06 14 6 mm 14 mm 14.5 mm 48 mm 23 mm .007 Kg
3166 08 10 8 mm 10 mm 13.5 mm 49 mm 28.5 mm .003 Kg
3166 08 12 8 mm 12 mm 13.5 mm 49 mm 23 mm .004 Kg
3166 08 14 8 mm 14 mm 17 mm 48 mm 23 mm .007 Kg
3166 10 12 10 mm 12 mm 21.5 mm 56.5 mm 33.5 mm .005 Kg
3166 10 14 10 mm 14 mm 21.5 mm 58.5 mm 33.5 mm .005 Kg
3166 12 14 12 mm 14 mm 23.5 mm 58.5 mm 33.5 mm .007 Kg
