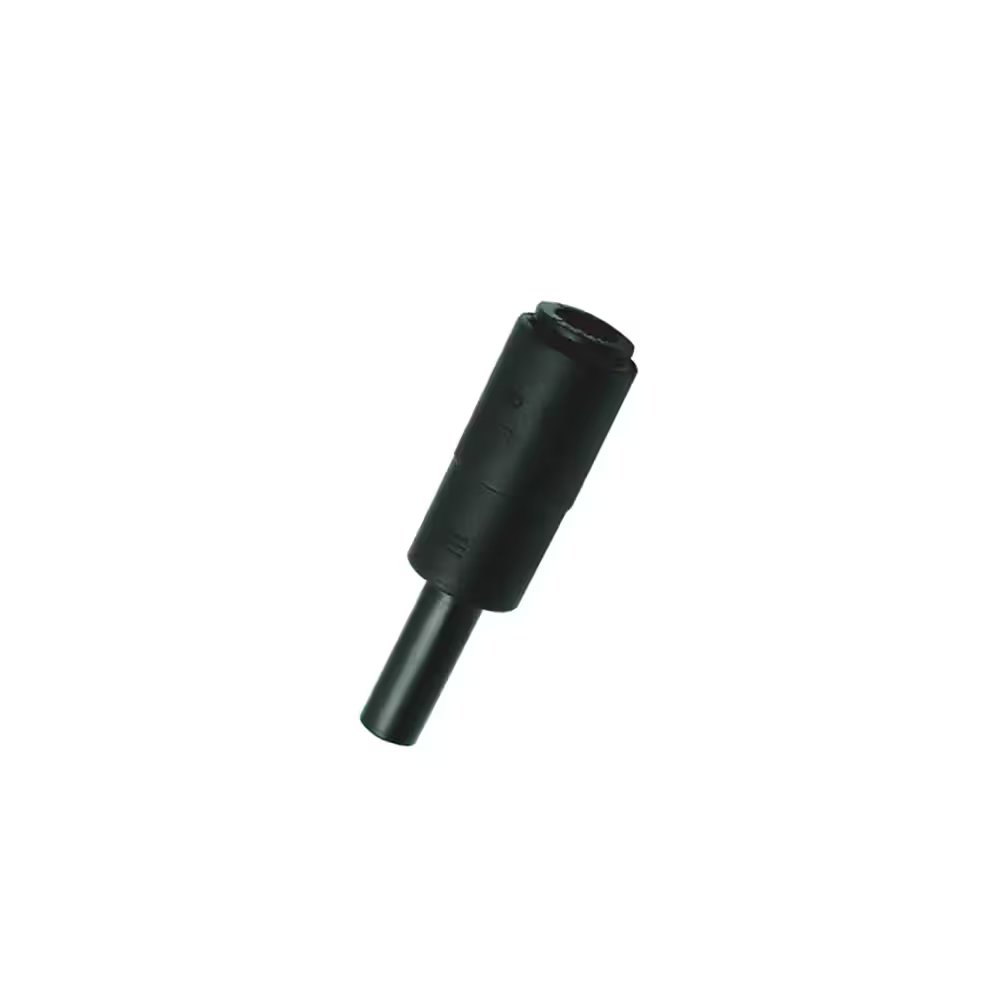

3160 04 00 by Parker | Legris Self-Sealing Plug-in Fitting | 4 mm Tube Size | 46 mm Length | Straight | Polymer | Pack of 10

3160 04 00 by Parker | Legris Self-Sealing Plug-in Fitting | 4 mm Tube Size | 46 mm Length | Straight | Polymer | Pack of 10

Sale price$166.81

by Parker Hannifin
LF 3000 ® Push-In Fittings / Self-Sealing and Oscillating Fittings:3160 Self-Sealing Plug-In Fitting

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $156.80
20–59 $141.79
60+ $125.11
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3160 Series
Shape:

Straight

Ends Configuration:
  • 4mm Push-to-Connect
  • 4mm Tube Stem
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 10 bar (10 bar: self-sealing fitting)
  • Working Temperature: -20°C to +80°C
Advantages:
  • Self-Sealing Fittings
  • Prevents fluid flow when there is no tube connected
  • Prevents incorrect assembly
  • Oscillating Fittings
  • Fitting swivels when cylinder is in movement : no bending of the tube
  • High durability fitting/tube assembly
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: Self-sealing fitting: nickel-plated brass
    Oscillating fitting: Technical Polymer
  • Adaptor: Nickel-Plated Brass
  • Anti-friction bearings
  • LF 3000® Components
Part Number ØD L L1 Kg
3160 04 00 4 mm 46 mm 33.5 mm .006 Kg
3160 06 00 6 mm 53.5 mm 31 mm .009 Kg
3160 08 00 8 mm 58 mm 31 mm .014 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
