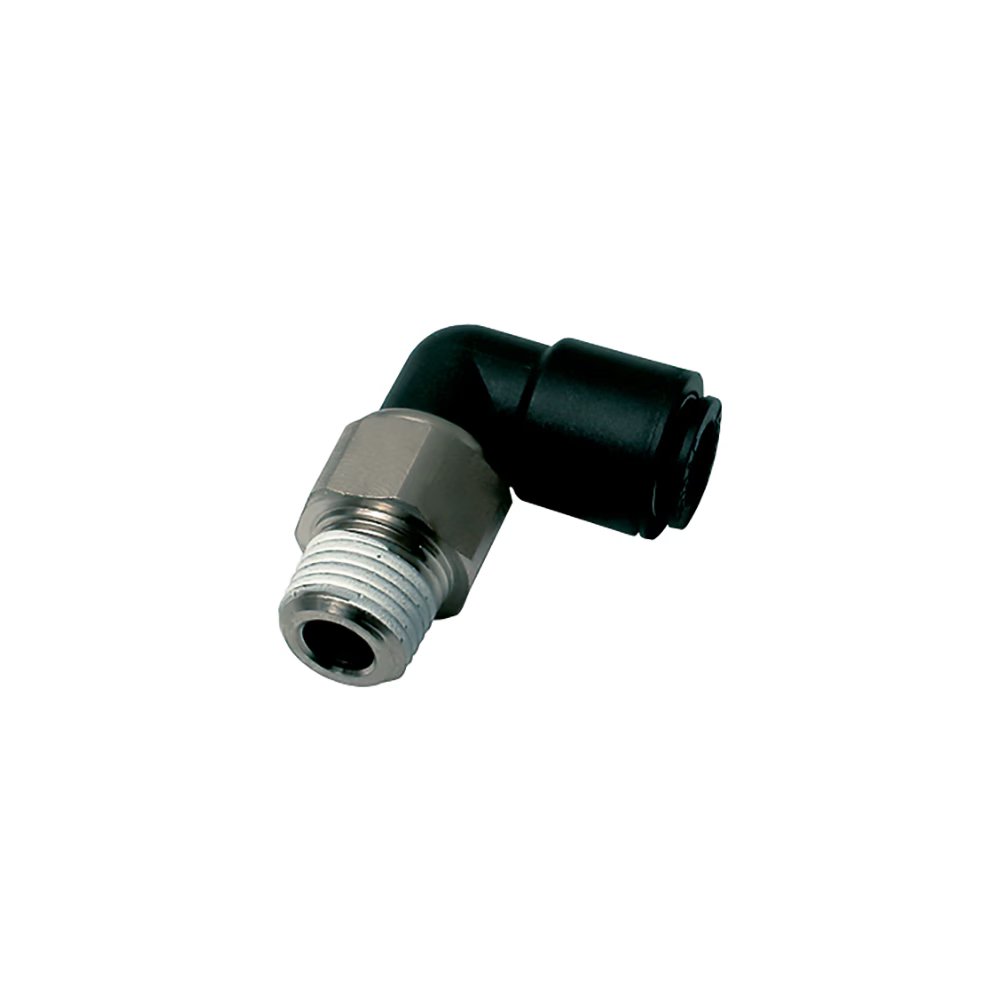

3159 10 13 by Parker | Legris Oscillating Fitting | 10mm Tube Size x 1/4" Male BSPT Thread | 19mm Hex | 90° Elbow | Polymer | Pack of 10

3159 10 13 by Parker | Legris Oscillating Fitting | 10mm Tube Size x 1/4" Male BSPT Thread | 19mm Hex | 90° Elbow | Polymer | Pack of 10

Sale price$512.67

by Parker Hannifin
LF 3000 ® Push-In Fittings / Self-Sealing and Oscillating Fittings:3159 Oscillating Elbow, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $481.91
15–29 $435.77
30+ $384.50
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3159 Series
Shape:

90° Elbow

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/4in Male BSPT
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 10 bar (10 bar: self-sealing fitting)
  • Working Temperature: -20°C to +80°C
Advantages:
  • Self-Sealing Fittings
  • Prevents fluid flow when there is no tube connected
  • Prevents incorrect assembly
  • Oscillating Fittings
  • Fitting swivels when cylinder is in movement : no bending of the tube
  • High durability fitting/tube assembly
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: Self-sealing fitting: nickel-plated brass
    Oscillating fitting: Technical Polymer
  • Adaptor: Nickel-Plated Brass
  • Anti-friction bearings
  • LF 3000® Components
Part Number ØD C F G H L Kg
3159 04 10 4 mm 1/8" 12 mm 11 mm 22 mm 17.5 mm .013 Kg
3159 06 10 6 mm 1/8" 14 mm 14 mm 26.5 mm 20.5 mm .020 Kg
3159 06 13 6 mm 1/4" 14 mm 14 mm 23.5 mm 20.5.5 mm .022 Kg
3159 08 10 8 mm 1/8" 17 mm 16 mm 32 mm 23.5 mm .034 Kg
3159 08 13 8 mm 1/4" 17 mm 16 mm 29 mm 23.5 mm .034 Kg
3159 08 17 8 mm 3/8" 17 mm 16 mm 25 mm 23.5 mm .031 Kg
3159 10 13 10 mm 1/4" 19 mm 19.5 mm 37.5 mm 29 mm .051 Kg
3159 10 17 10 mm 3/8" 19 mm 19.5 mm 33.5 mm 29 mm .046 Kg
3159 12 13 12 mm 1/4" 21 mm 22 mm 44.5 mm 33.5 mm .074 Kg
3159 12 17 12 mm 3/8" 21 mm 22 mm 41 mm 33.5 mm .068 Kg

Pre-coated thread
