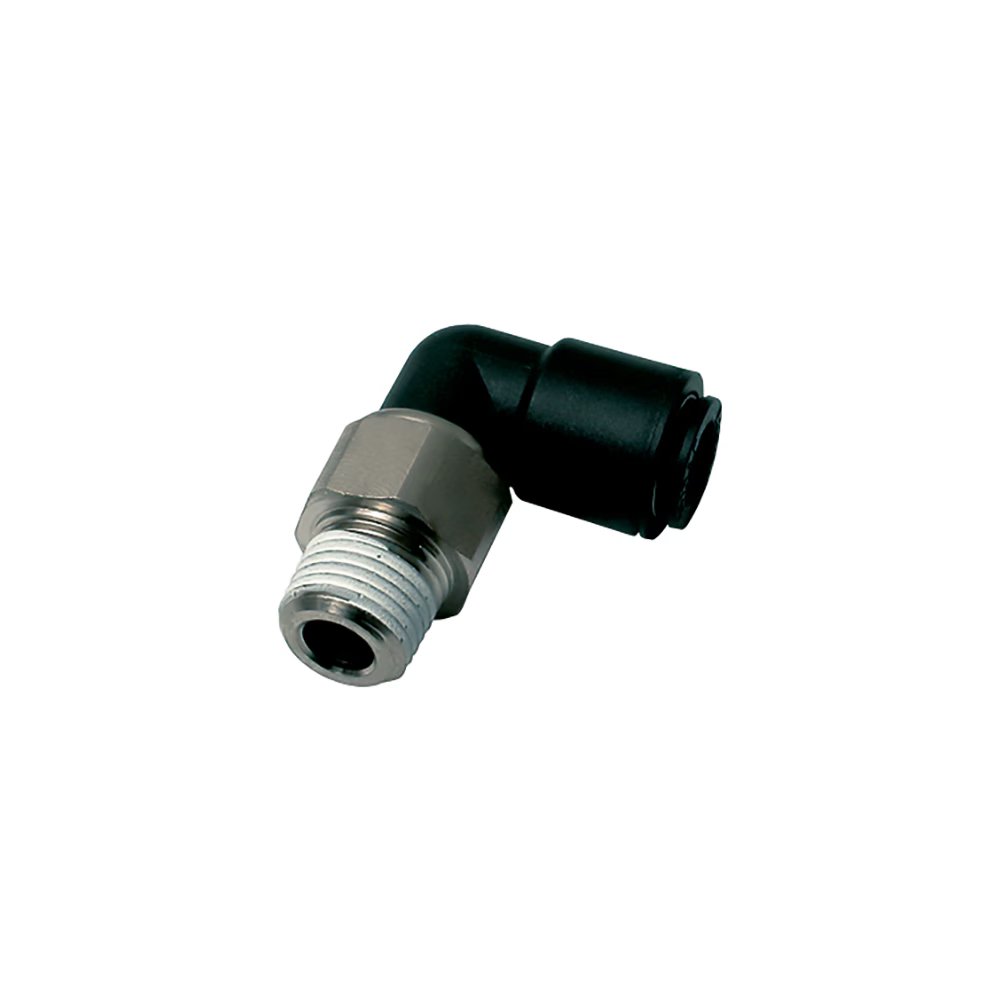

3159 04 11 by Parker | LF3000® Oscillating Swivel Fittings | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 12 mm Hex | 90° Elbow | Nylon | Pack of 10

3159 04 11 by Parker | LF3000® Oscillating Swivel Fittings | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 12 mm Hex | 90° Elbow | Nylon | Pack of 10

Sale price$257.64

by Parker Hannifin
Oscillating Fitting:3159 - oscillating male elbow fractional inch tube to NPT

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $242.18
15–29 $218.99
30+ $193.23
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3159 Series
Shape:

90° Elbow
Product Features:
      Oscillating Fittings
  • Prevents tube wear due to excessive flexing
  • Optimum reliability and durability
  • Simplifies circuit assembly
Markets:
  • Automotive
  • Textile
  • Packaging
  • Semi-Conductor
Applications:
  • Robotics
  • Automotive Process
  • Semi-Conductors
  • Textile
  • Packaging
Compatible Fluids
  • Compressed air
    Other fluids: please consult us
Working Pressure
  • 290 psi (20 bar)
    145 psi (10 bar) self sealing fittings
Vacuum Capability
  • 28" Hg
Working Temperature
  • -4° to 176° F (-20° to +80° C)
Part Number ØD NPT (C) F G H L Oz
3159 04 11 5/32" 1/8" 12 mm .43" .85" .69" .49 Oz
3159 56 11 1/4" 1/8" 14 mm .55" 1.04" .81" .71 Oz
3159 56 14 1/4" 1/4" 14 mm .55" 1.04" .81" .78 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
