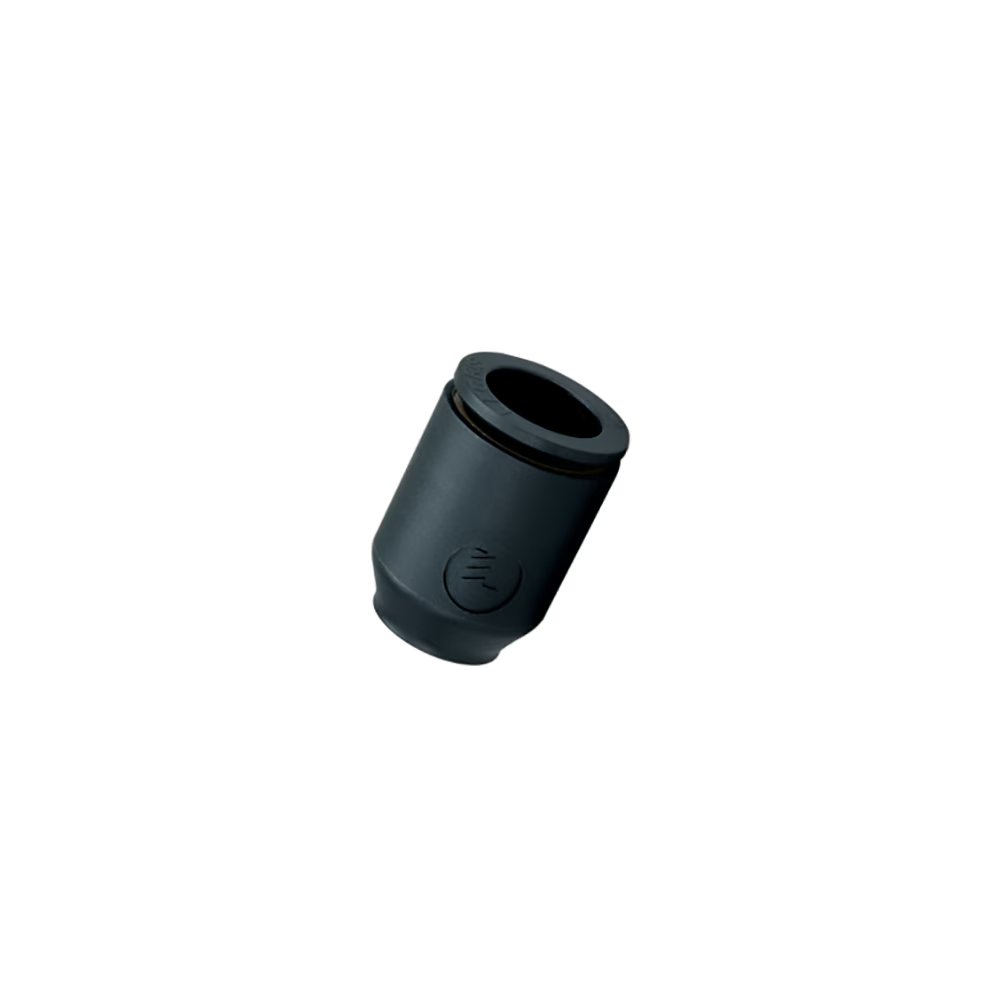

3151 53 00 by Parker | Legris Prestolok PLP Composite Push-to-Connect Fittings | Accessories | 1/8" End Cap (D) | .33" (G) | .55" Height | Polycarbonate | Pack of 10
by Parker Hannifin
Push-to-Connect Fittings:3151 End Caps
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $28.35 |
| 40–79 | $25.64 |
| 80+ | $22.62 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
No Orientation
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 290 PSI (19.9 bar) depending on tubing Up to 260 PSI (17.9 bar) depending on tubing (3/16” size only) |
| Temperature Range: | -4° to +175° F (-20° to +79.4° C) 5° to +155° F (-15° to +68.3° C) (3/16” size only) |
| Vacuum Rating: | 28" Hg |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | D (in) | G (in) | H (in) | D (mm) | G (mm) | H (mm) |
| 3151 53 00 | 1/8" | .33" | .55" | - | - | - |
| 3151 04 00 | 5/32" | .33" | .55" | 4 mm | 8.5 mm | 14.7 mm |
| 3151 56 00 | 1/4" | .41" | .64" | - | - | - |
| 3151 08 00 | 5/16" | .53" | .86" | 8 mm | 13.5 mm | 21.9 mm |
| 3151 60 00 | 3/8" | .53" | .86" | - | - | - |
