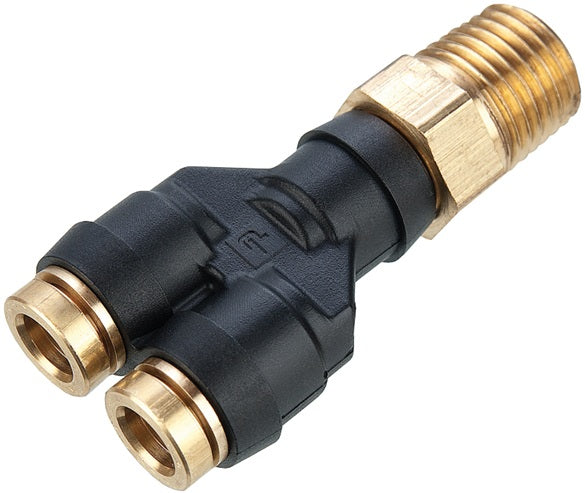

31485614DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Y Connector | 1/4" Male NPT x 1/4" Tube OD x 1/4" Tube OD | Composite/Brass

31485614DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Y Connector | 1/4" Male NPT x 1/4" Tube OD x 1/4" Tube OD | Composite/Brass

Sale price$27.91
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body (Unless noted below)
  • Brass collet
  • Stainless steel tube support
  • Nitrile Rubber seal
  • Brass threads
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • Complies with the performance requirements of D.O.T FMVSS 571.106 (SAE J1131) and SAE J2494-3
  • Fitting can be oriented 360°, allowing proper positioning of the fitting.
Part Number Tube O.D. Male NPT
31485611DOT 1/4" 1/8"
31485614DOT 1/4" 1/4"

Additional Product Data:

Shape:

Y

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/4in Male NPT
Material(s):
  • Plastic
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Explore Dixon Valve & Coupling
