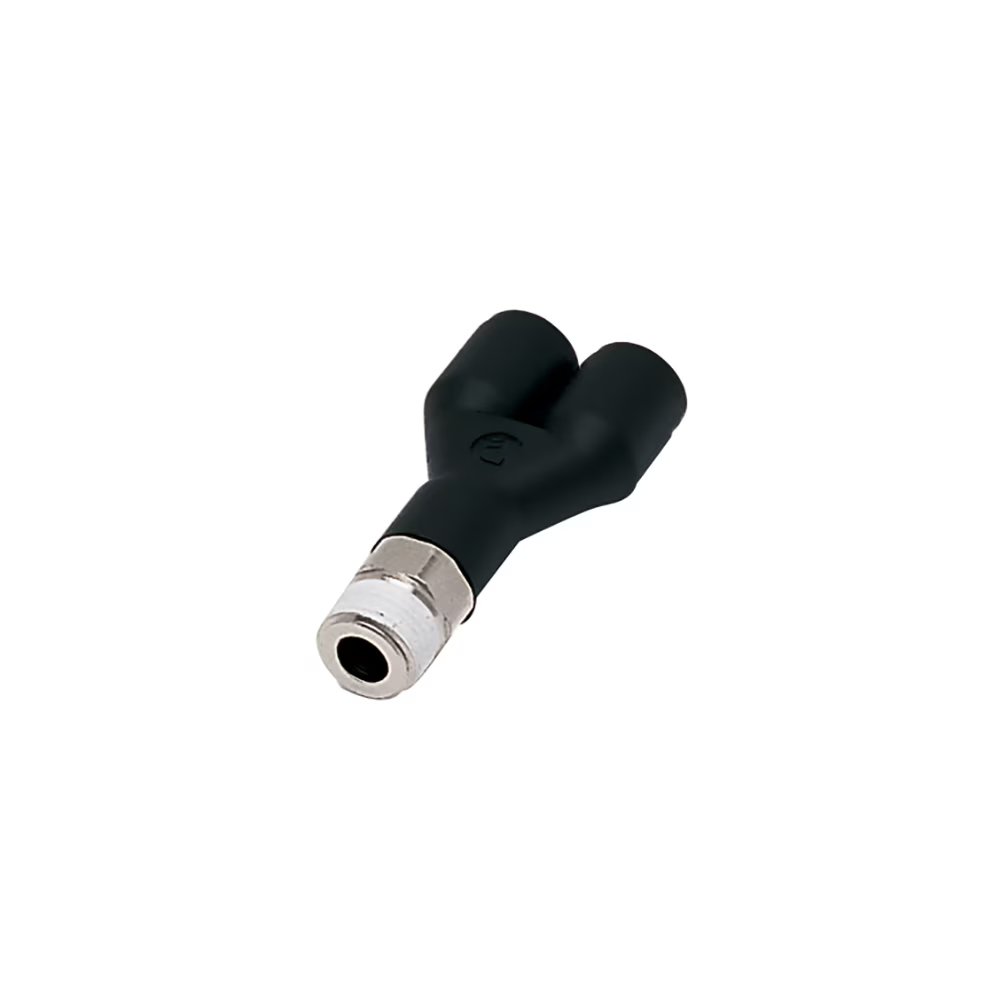

3148 04 11 by Parker | LF3000® Push-to-Connect Fittings | 5/32" Push-to-Connect x 1/8" Male NPT Thread | 11 mm Hex | 1.28" Length | Y | Nylon | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:3148 - “Y” male connector fractional inch tube to NPT
Package Quantity: 10 Units
Product Data:
Brand:
Series:
Shape:
Y
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range |
|
| Temperature Range |
|
| Vacuum Capability |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | NPT (C) | F | H | K | L | N | Oz |
| 3148 04 11 | 5/32" | 1/8" | 11 mm | 1.28" | .33" | .69" | .35" | .42 Oz |
| 3148 04 14 | 5/32" | 1/4" | 14 mm | 1.30" | .33" | .69" | .35" | .79 Oz |
| 3148 56 11 | 1/4" | 1/8" | 11 mm | 1.61" | .43" | .87" | .45" | .59 Oz |
| 3148 56 14 | 1/4" | 1/4" | 14 mm | 1.56" | .43" | .87" | .45" | .80 Oz |
| 3148 60 14 | 3/8" | 1/4" | 17 mm | 2.24" | .63" | 1.30" | .67" | 1.61 Oz |
| 3148 60 18 | 3/8" | 3/8" | 18 mm | 2.28" | .63" | 1.30" | .67" | 1.94 Oz |
