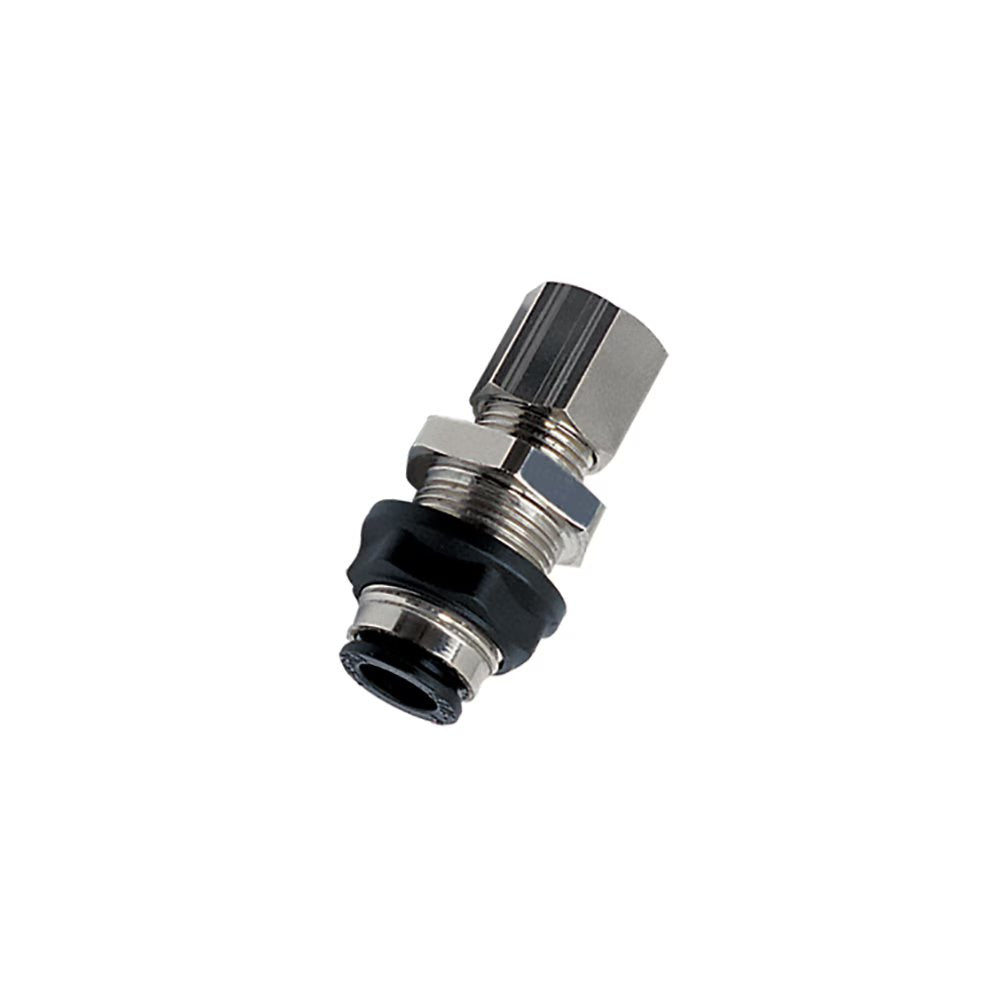

3146 08 00 by Parker | Legris Bulkhead Connector Fitting | 8 mm Push-to-Connect x 8 mm Tube Compression | 18 mm Hex | 41 mm Length | Straight | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings:3146 Equal Mixed Bulkhead Connector
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $200.26 |
| 20–59 | $181.08 |
| 60+ | $159.78 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | F1 | F2 | F3 | K (Max) | L1 | L2 | ØT (Min) | Kg |
| 3146 04 00 | 4 mm | 13 mm | 13 mm | 10 mm | 7 mm | 17.5 mm | 17.5 mm | 10.5 mm | .018 Kg |
| 3146 06 00 | 6 mm | 15 mm | 17 mm | 13 mm | 8 mm | 19 mm | 18 mm | 12.5 mm | .028 Kg |
| 3146 08 00 | 8 mm | 18 mm | 19 mm | 14 mm | 8 mm | 20.5 mm | 20.5 mm | 15.5 mm | .036 Kg |
| 3146 10 00 | 10 mm | 22 mm | 22 mm | 19 mm | 8.5 mm | 23 mm | 24.5 mm | 18.5 mm | .062 Kg |
| 3146 12 00 | 12 mm | 26 mm | 25 mm | 22 mm | 8.5 mm | 27 mm | 25 mm | 22.5 mm | .095 Kg |
| 3146 14 00 | 14 mm | 29 mm | 29 mm | 24 mm | 10.5 mm | 27 mm | 27 mm | 25.5 mm | .124 Kg |
Push-in connection with compression fitting
