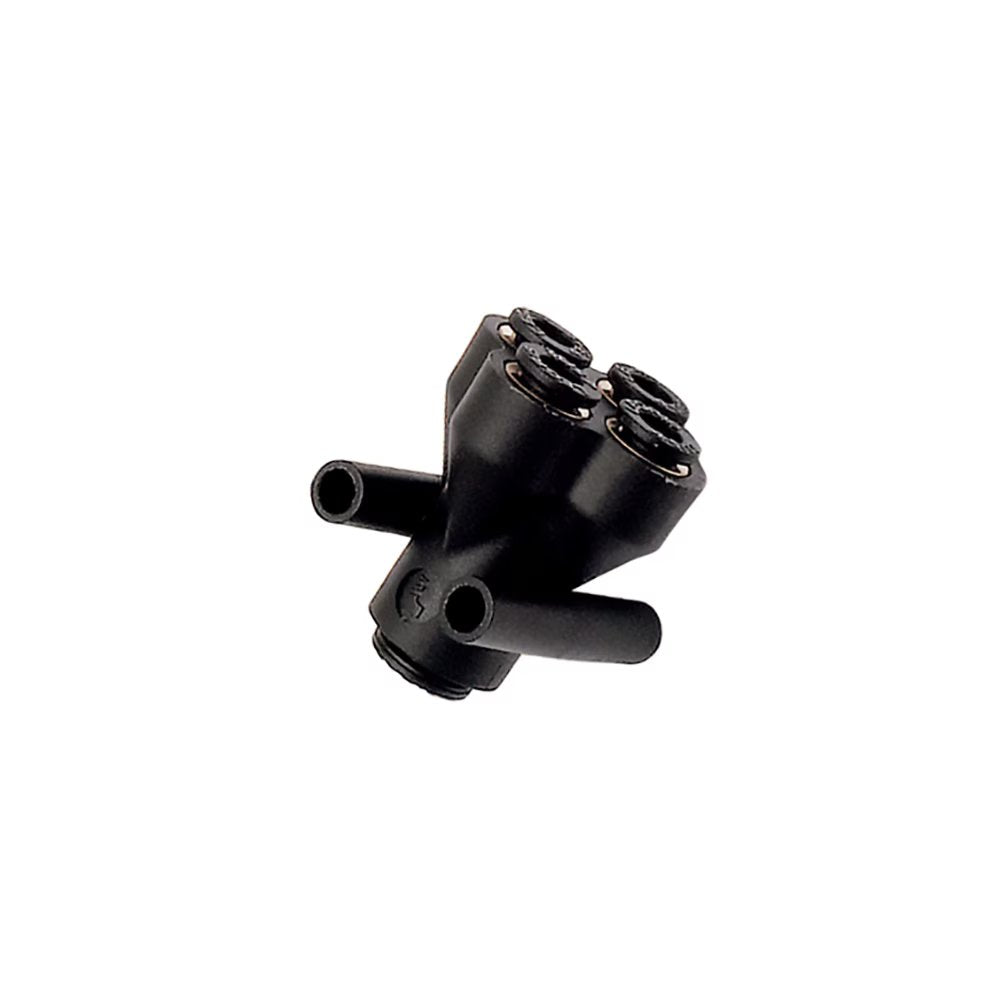

3144 04 56 by Parker | Legris Multiple Fittings | 5/32" Push-to-Connect x 1/4" Push-to-Connect | 1.18" Length | Double Y | Nylon | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Multiple Fittings:Equal and Unequal Multiple Y Piece
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $146.04 |
| 20–59 | $132.06 |
| 60+ | $116.52 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Double Y
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | ØD1 | K | K1 | L | N | N1 | ØT | Kg |
| 3144 04 04 | 4 mm | 4 mm | 25.5 mm | 21 mm | 30.5 mm | 10 mm | 8.5 mm | 3.7 mm | .015 Kg |
| 3144 04 06 | 4 mm | 6 mm | 25.5 mm | 21 mm | 30.5 mm | 10 mm | 8.5 mm | 3.7 mm | .013 Kg |
| 3144 04 56 | 5/32" | 1/4" | 1.00" | .83" | 1.20" | .39" | .34" | .15" | .011 Kg |
| 3144 06 06 | 6 mm | 6 mm | 31.5 mm | 26.5 mm | 37.5 mm | 12 mm | 10 mm | 3.7 mm | .032 Kg |
| 3144 06 08 | 6 mm | 8 mm | 31.5 mm | 26.5 mm | 38 mm | 12 mm | 10 mm | 3.7 mm | .026 Kg |
