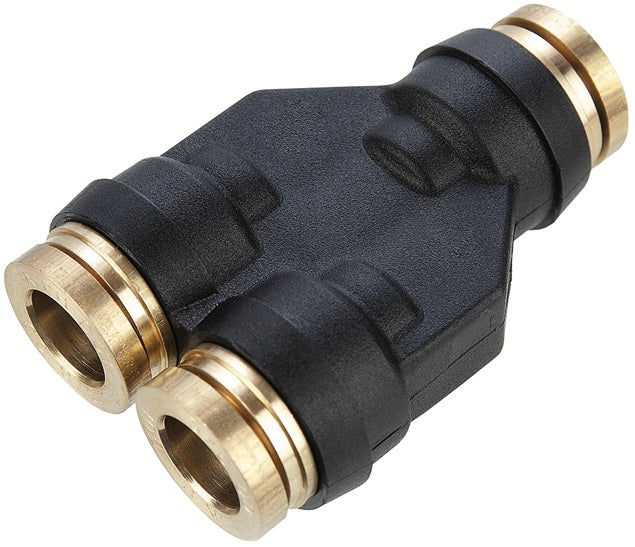

31406000DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Y Union | 3/8" Tube OD | Composite/Brass

31406000DOT Legris by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Y Union | 3/8" Tube OD | Composite/Brass

Sale price$23.98

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Push-In Y Union | Tube End x Tube End x Tube End

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.
Buy More, Save More!
Quantity Price Each
10–39 $22.54
40–79 $20.38
80+ $17.99
Discounts applied in cart/checkout.

Product Data:

Shape:

Y

Ends Configuration:
  • 3/8in Push-to-Connect
  • 3/8in Push-to-Connect
  • Some Ends Match
Material(s):
  • Plastic
  • Brass
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body (Unless noted below)
  • Brass collet
  • Stainless steel tube support
  • Nitrile Rubber seal
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • Meets D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3.
  • 3/8" and below fittings can be rotated with your hands.
Part Number Tube O.D.
31405600DOT 1/4"
31406000DOT 3/8"
