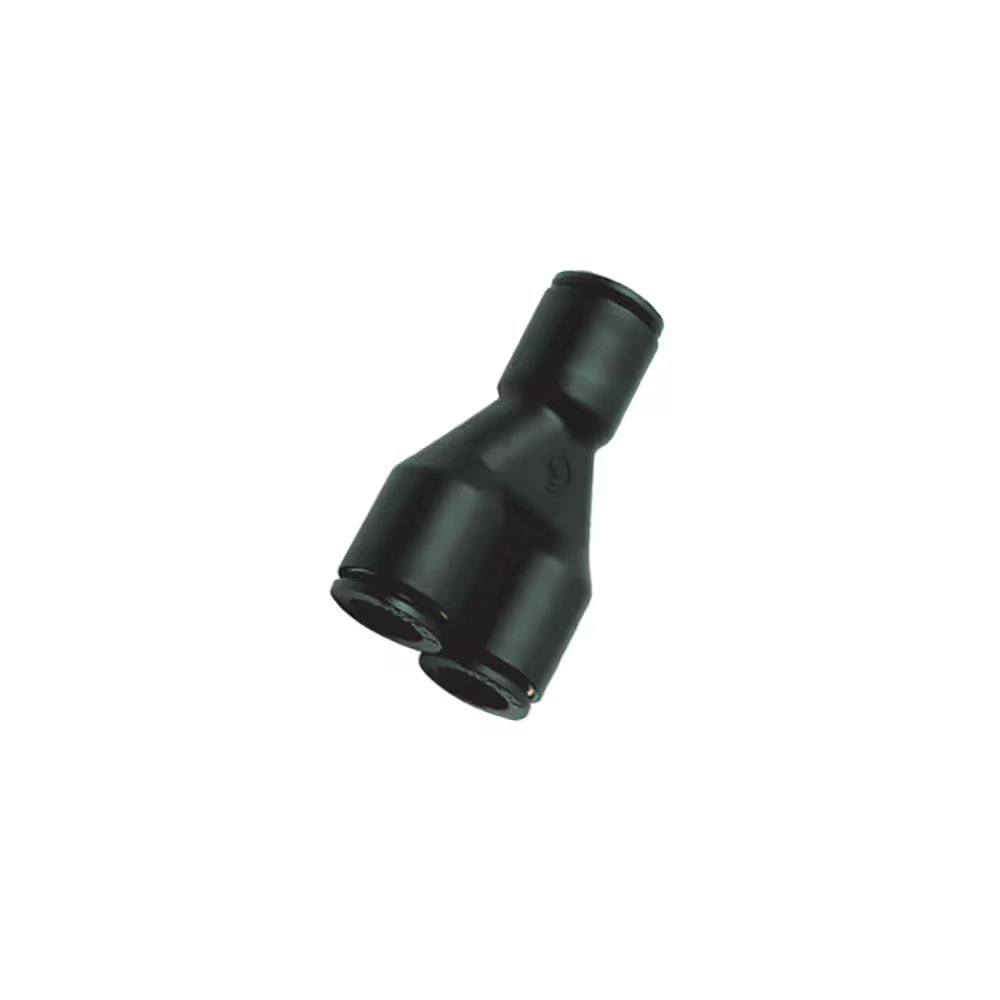

3140 10 12 by Parker | Legris Push-In Fitting | 10 mm Push-to-Connect x 12 mm Push-to-Connect | 57 mm Length | Y | Polymer | Pack of 10

3140 10 12 by Parker | Legris Push-In Fitting | 10 mm Push-to-Connect x 12 mm Push-to-Connect | 57 mm Length | Y | Polymer | Pack of 10

Sale price$130.53
Quantity Price Each
50–99 $117.48
100+ $104.42
Discounts applied at checkout.

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3140 Equal and Unequal Single Y Piece

Package Quantity: 10 Units

Product Data:

Brand:
  • LF 3000®
Series:
  • 3140 Series
Shape:

Y
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD ØD1 H K L N Kg
3140 04 00 4 mm 4 mm 17.5 mm 8.5 mm 28.5 mm 9 mm .002 Kg
3140 04 06 4 mm 6 mm 17.5 mm 10.5 mm 33 mm 9 mm .002 Kg
3140 06 00 6 mm 6 mm 21.5 mm 10.5 mm 35 mm 11 mm .004 Kg
3140 06 08 6 mm 8 mm 22.5 mm 13.5 mm 41 mm 11.5 mm .005 Kg
3140 08 00 8 mm 8 mm 28 mm 13.5 mm 45 mm 14.5 mm .006 Kg
3140 08 10 8 mm 10 mm 28 mm 16 mm 47 mm 14.5 mm .008 Kg
3140 10 00 10 mm 10 mm 33 mm 16 mm 53 mm 17 mm .010 Kg
3140 10 12 10 mm 12 mm 33 mm 19 mm 57 mm 19 mm .012 Kg
3140 12 00 12 mm 12 mm 39 mm 19 mm 57 mm 20 mm .017 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
