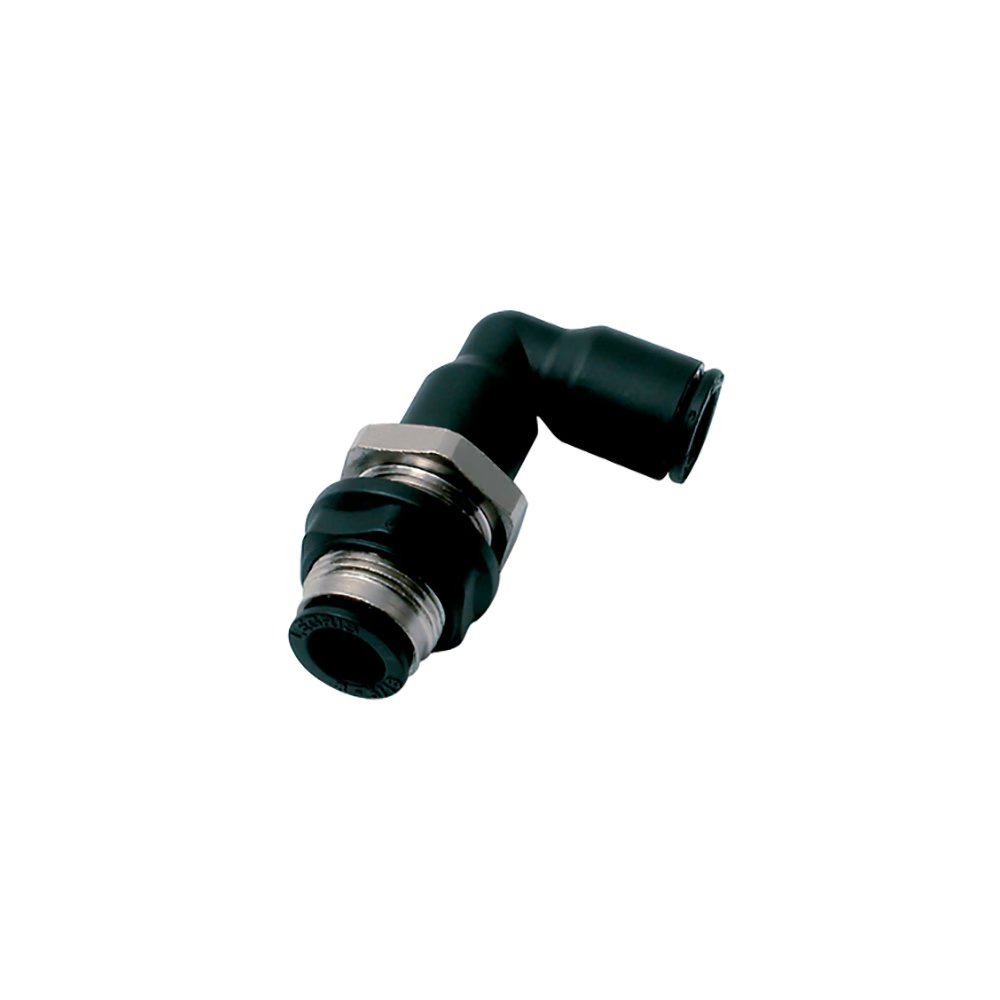

3139 62 00 by Parker | Equal Bulkhead | 1/2" Push-to-Connect x 1/2" Push-to-Connect | 29 mm Hex (F1) | 27 mm Hex (F2) | 90° Elbow | Nylon | Pack of 10
Parker Fluid Connections Division

3139 62 00 by Parker | Equal Bulkhead | 1/2" Push-to-Connect x 1/2" Push-to-Connect | 29 mm Hex (F1) | 27 mm Hex (F2) | 90° Elbow | Nylon | Pack of 10

Sale price$236.49

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3139 - equal bulkhead elbow tube to tube

Package Quantity: 10 Units

Product Data:

Brand:
  • LF 3000®
Series:
  • 3139 Series
Shape:

90° Elbow
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD F1 F2 G H K (max) L ØT (min) Oz
3139 53 00 1/8" 13 mm 13 mm .35" .71" .28" .57" .41" .67 Oz
3139 56 00 1/4" 18 mm 17 mm .43" .87" .32" .71" .61" .85 Oz
3139 60 00 3/8" 22 mm 22 mm .63" 1.08" .33" 1.00" .73" 2.80 Oz
3139 62 00 1/2" 29 mm 27 mm .87" 1.54" .41" 1.38" 1.00" 4.34 Oz

The plastic nut is fitted with an “O” ring to optimize sealing in relation to the panel.
