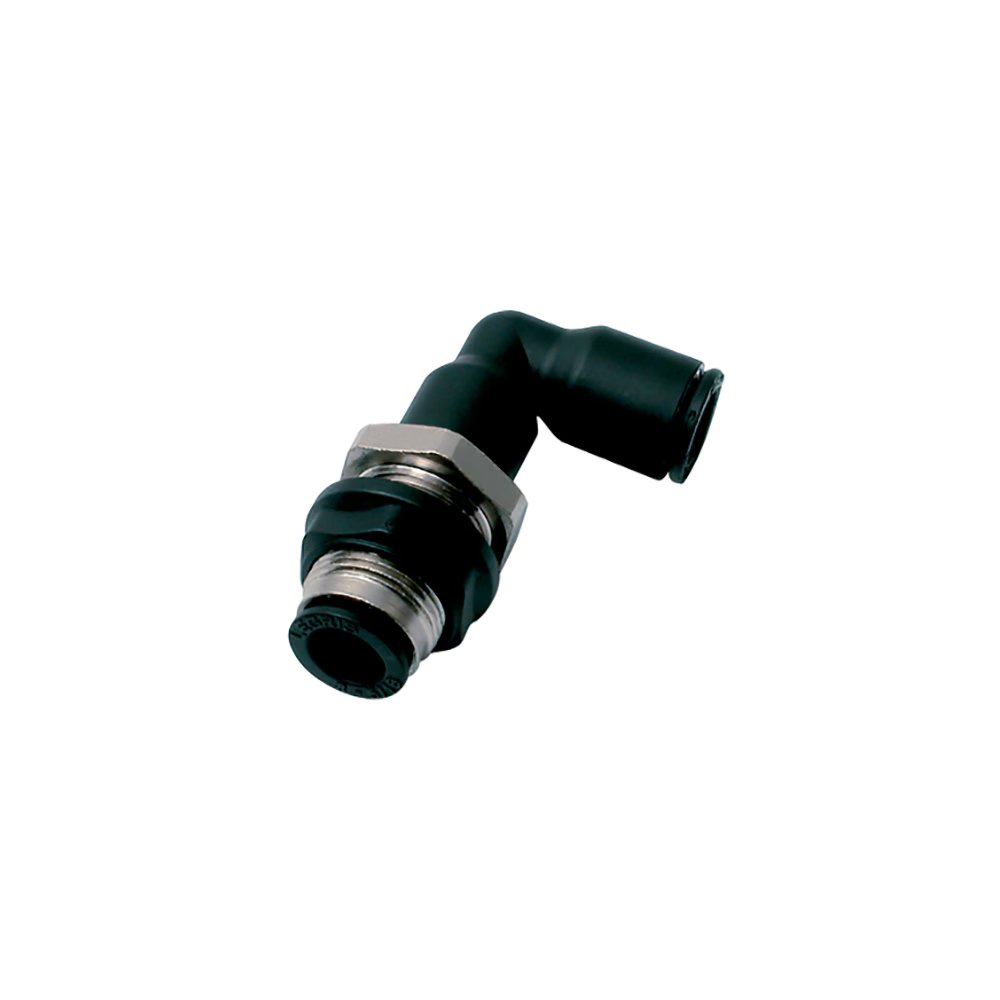

3139 08 00 by Parker | Legris Bulkhead Connector Swivel Fitting | 8 mm Push-to-Connect | 19 mm Hex | 90° Elbow | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings:3139 Equal Bulkhead Elbow
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $184.79 |
| 20–59 | $167.10 |
| 60+ | $147.44 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | F | F1 | G | H | K (Max) | L | ØT (Min) | Kg |
| 3139 04 00 | 4 mm | 13 mm | 13 mm | 8.5 mm | 17 mm | 6.5 mm | 14.5 mm | 10.5 mm | .014 Kg |
| 3139 06 00 | 6 mm | 17 mm | 15 mm | 10.5 mm | 19.5 mm | 7 mm | 17.5 mm | 12.5 mm | .021 Kg |
| 3139 08 00 | 8 mm | 19 mm | 18 mm | 13.5 mm | 24 mm | 8 mm | 23 mm | 15.5 mm | .032 Kg |
| 3139 10 00 | 10 mm | 22 mm | 22 mm | 16 mm | 28 mm | 8.5 mm | 26 mm | 18.5 mm | .048 Kg |
| 3139 12 00 | 12 mm | 24 mm | 26 mm | 19 mm | 33 mm | 8.5 mm | 31 mm | 22.5 mm | .084 Kg |
| 3139 14 00 | 14 mm | 27 mm | 29 mm | 25.5 mm | 37.5 mm | 10.5 mm | 36 mm | 25.5 mm | .117 Kg |
The body swivels for positioning purposes.
