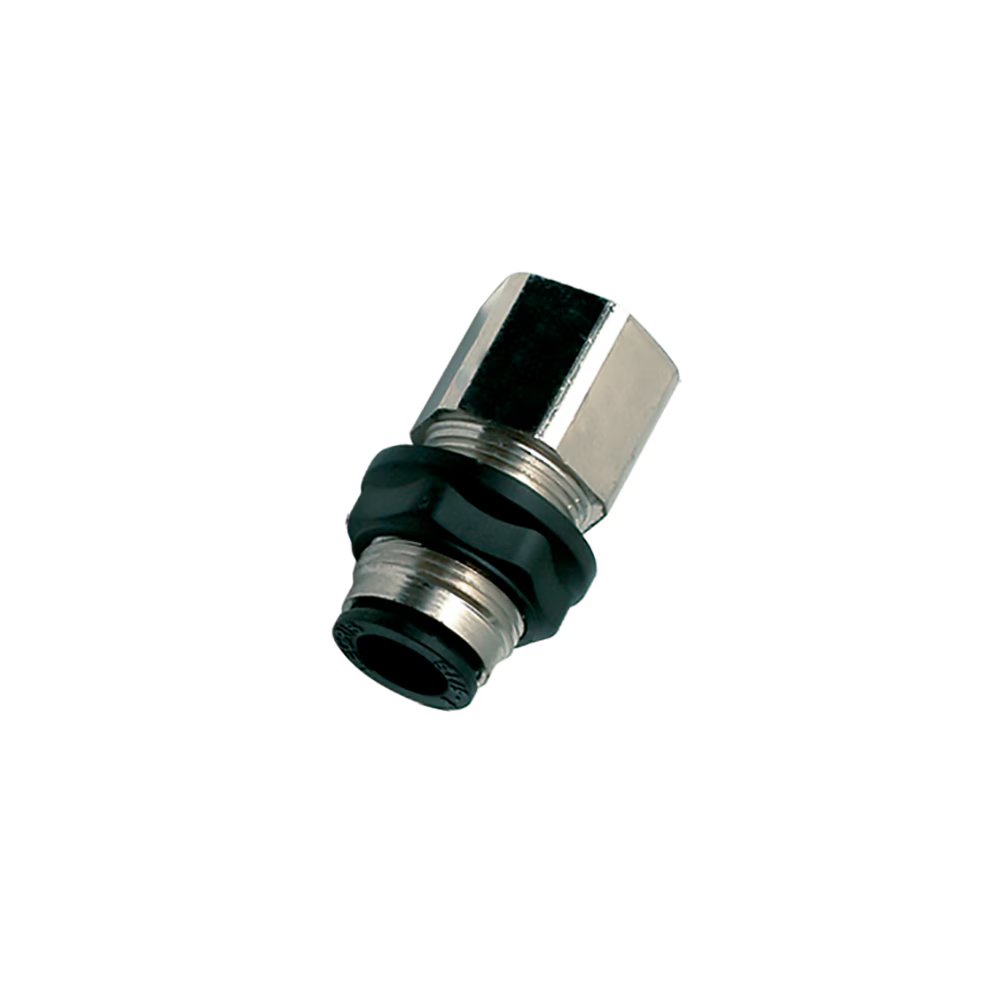

3136 16 17 by Parker | Legris Bulkhead Connector Fitting | 16mm Push-to-Connect x 3/8" Female BSPP Thread | 29mm Hex | Straight | Nickel-Plated Brass | Pack of 5

3136 16 17 by Parker | Legris Bulkhead Connector Fitting | 16mm Push-to-Connect x 3/8" Female BSPP Thread | 29mm Hex | Straight | Nickel-Plated Brass | Pack of 5

Sale price$247.37

by Parker Hannifin
LF 3000® Push-In Fittings / Bulkhead Connector Fittings:3136 Bulkhead Connector, Female BSPP Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–19 $232.53
20–59 $210.26
60+ $185.53
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3136 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F1 F2 K (Max) L1 L2 ØT (Min) Kg
3136 04 10 4 mm 1/8" 9.5 mm 13 mm 13 mm 7 mm 17 mm 11.5 mm 10.5 mm .015 Kg
3136 04 13 4 mm 1/4" 13.5 mm 13 mm 16 mm 7 mm 17 mm 15.5 mm 10.5 mm .021 Kg
3136 06 10 6 mm 1/8" 9.5 mm 15 mm 15 mm 8 mm 19 mm 10.5 mm 12.5 mm .021 Kg
3136 06 13 6 mm 1/4" 13.5 mm 15 mm 17 mm 7 mm 19 mm 15.5 mm 12.5 mm .027 Kg
3136 06 17 6 mm 3/8" 12 mm 15 mm 22 mm 8 mm 19 mm 16.5 mm 12.5 mm .041 Kg
3136 08 10 8 mm 1/8" 9.5 mm 18 mm 17 mm 8 mm 20.5 mm 10.5 mm 15.5 mm .029 Kg
3136 08 13 8 mm 1/4" 13.5 mm 18 mm 17 mm 8 mm 20.5 mm 14.5 mm 15.5 mm .029 Kg
3136 10 17 10 mm 3/8" 14 mm 22 mm 22 mm 8.5 mm 23 mm 16 mm 18.5 mm .050 Kg
3136 12 17 12 mm 3/8" 14 mm 26 mm 24 mm 8.5 mm 27 mm 16 mm 22.5 mm .079 Kg
3136 12 21 12 mm 1/2" 19.5 mm 26 mm 27 mm 8.5 mm 27 mm 21.5 mm 22.5 mm .098 Kg
3136 16 17 16 mm 3/8" 12 mm 29 mm 29 mm 10.5 mm 30 mm 15 mm 27.5 mm .125 Kg
3136 16 21 16 mm 1/2" 15 mm 29 mm 29 mm 10.5 mm 30 mm 19.5 mm 27.5 mm .126 Kg
