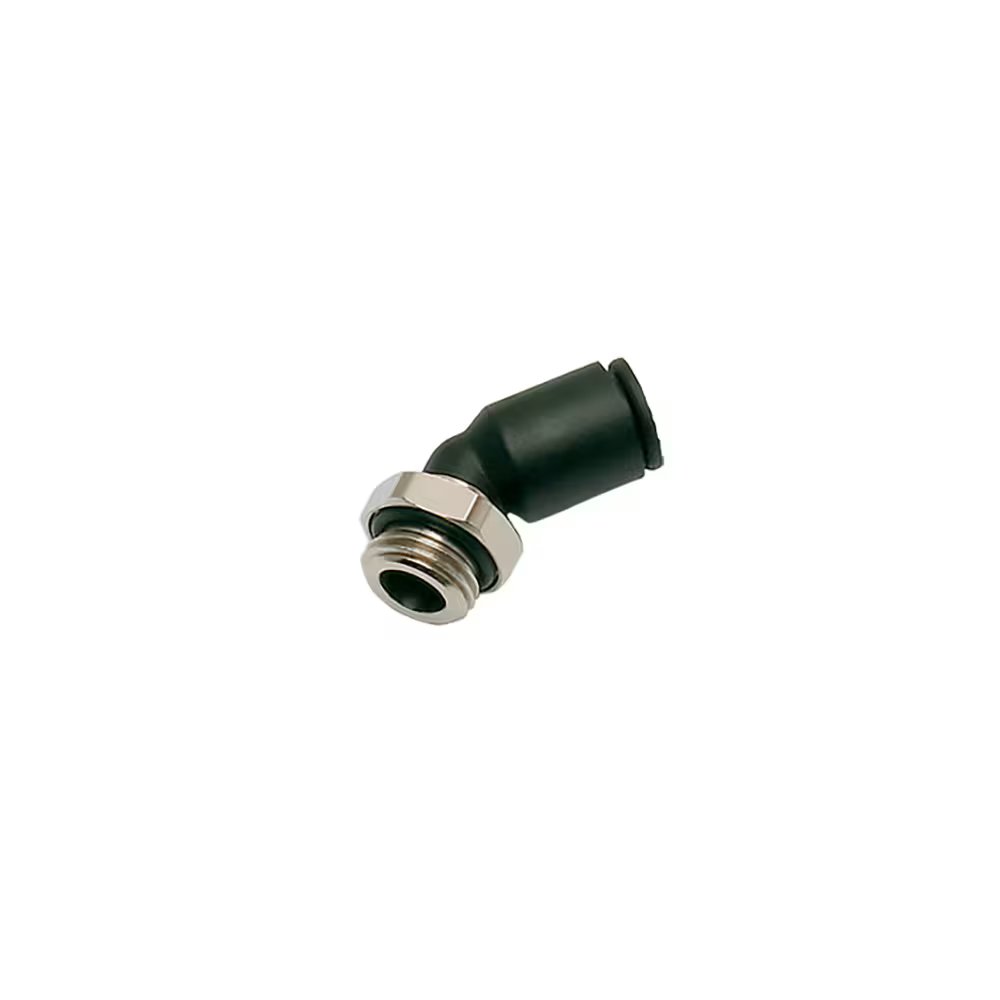

3133 10 13 by Parker | Legris Stud Fitting | 10 mm Push-to-Connect x 1/4" Male Swivel BSPP Thread | 16 mm Hex | 45° Elbow | Polymer | Pack of 10

3133 10 13 by Parker | Legris Stud Fitting | 10 mm Push-to-Connect x 1/4" Male Swivel BSPP Thread | 16 mm Hex | 45° Elbow | Polymer | Pack of 10

Sale price$75.93

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3133 45° Elbow, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $71.37
20–59 $64.54
60+ $56.95
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3113 Series
Shape:

45° Elbow
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F G H L Kg
3133 04 19 4 mm M5x0.8 3.5 mm 8 mm 9 mm 23 mm 13 mm .003 Kg
3133 04 10 4 mm 1/8" 4.5 mm 13 mm 9 mm 20.5 mm 13 mm .006 Kg
3133 06 19 6 mm M5x0.8 3.5 mm 8 mm 11 mm 28 mm 14.5 mm .003 Kg
3133 06 10 6 mm 1/8" 4.5 mm 13 mm 11 mm 24 mm 14.5 mm .006 Kg
3133 06 13 6 mm 1/4" 5.5 mm 16 mm 1 mm 24 mm 14.5 mm .011 Kg
3133 08 10 8 mm 1/8" 4.5 mm 13 mm 13.5 mm 31 mm 19.5 mm .009 Kg
3133 08 13 8 mm 1/4" 5.5 mm 16 mm 13.5 mm 29 mm 19.5 mm .012 Kg
3133 08 17 8 mm 3/8" 5.5 mm 20 mm 13.5 mm 29 mm 19.5 mm .017 Kg
3133 10 13 10 mm 1/4" 5.5 mm 16 mm 16 mm 35 mm 23 mm .014 Kg
3133 10 17 10 mm 3/8" 5.5 mm 20 mm 16 mm 33.5 mm 23 mm .017 Kg
3133 10 21 10 mm 1/2" 7 mm 24 mm 16 mm 33.5 mm 23 mm .026 Kg
3133 12 13 12 mm 1/4" 5.5 mm 16 mm 19 mm 40.5 mm 26 mm .016 Kg
3133 12 17 12 mm 3/8" 5.5 mm 20 mm 19 mm 39 mm 26 mm .019 Kg
3133 12 21 12 mm 1/2" 7 mm 24 mm 19 mm 39 mm 26 mm .029 Kg

The body swivels for positioning purposes.

This model prevents distortion of the tube.
