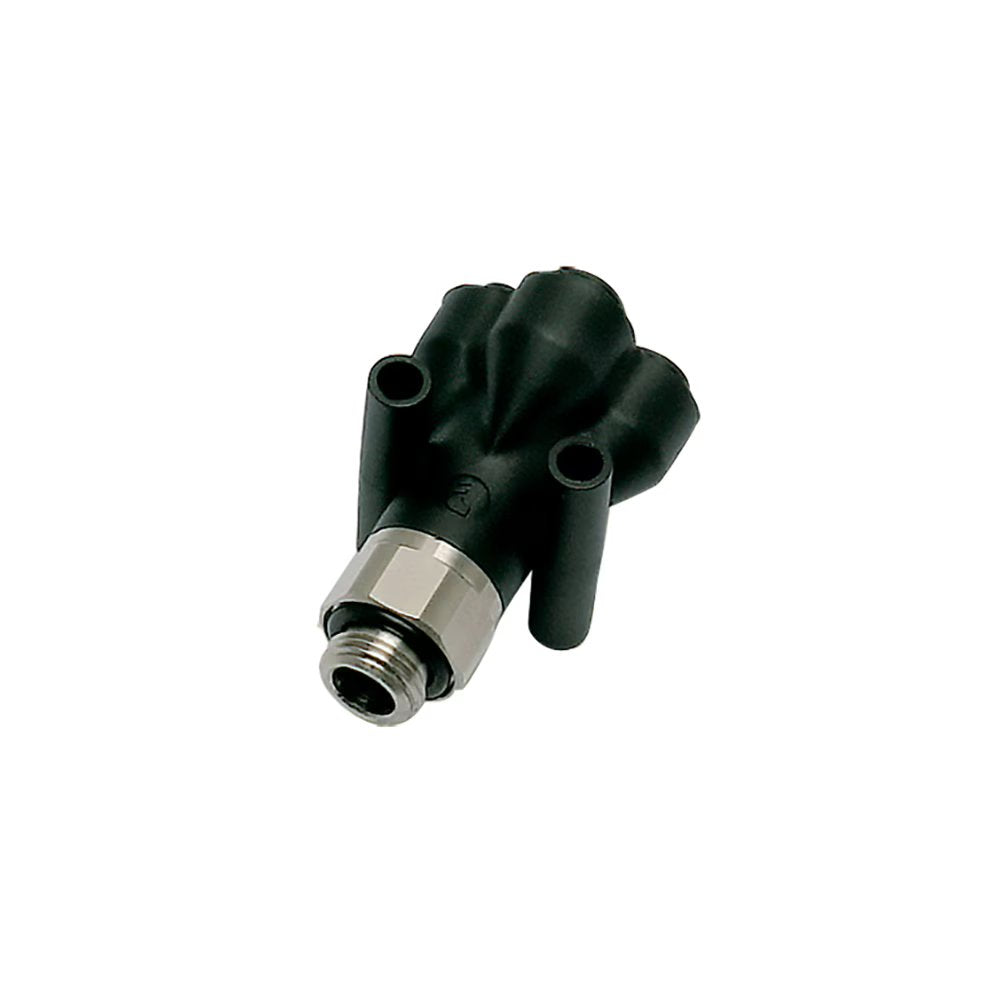

3132 06 10 by Parker | Legris Stud Fitting | 6 mm Push-to-Connect x 1/8" Male Swivel BSPP Thread | 19 mm Hex | Double Y | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3132 Double Y, Male BSPP Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $211.68 |
| 20–59 | $191.41 |
| 60+ | $168.89 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Double Y
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | H | K | K1 | N | N1 | ØT | Kg |
| 3132 04 10 | 4 mm | 1/8" | 5 mm | 13 mm | 41 mm | 25.5 mm | 21 mm | 10 mm | 8.5 mm | 3.7 mm | .022 Kg |
| 3132 04 13 | 4 mm | 1/4" | 5.5 mm | 16 mm | 40 mm | 25.5 mm | 21 mm | 10 mm | 8.5 mm | 3.7 mm | .026 Kg |
| 3132 06 10 | 6 mm | 1/8" | 5 mm | 19 mm | 53.5 mm | 31.5 mm | 26.5 mm | 12 mm | 10 mm | 3.7 mm | .041 Kg |
| 3132 06 13 | 6 mm | 1/4" | 5.5 mm | 19 mm | 52.5 mm | 31.5 mm | 26.5 mm | 12 mm | 10 mm | 3.7 mm | .042 Kg |
The body swivels for positioning purposes.
