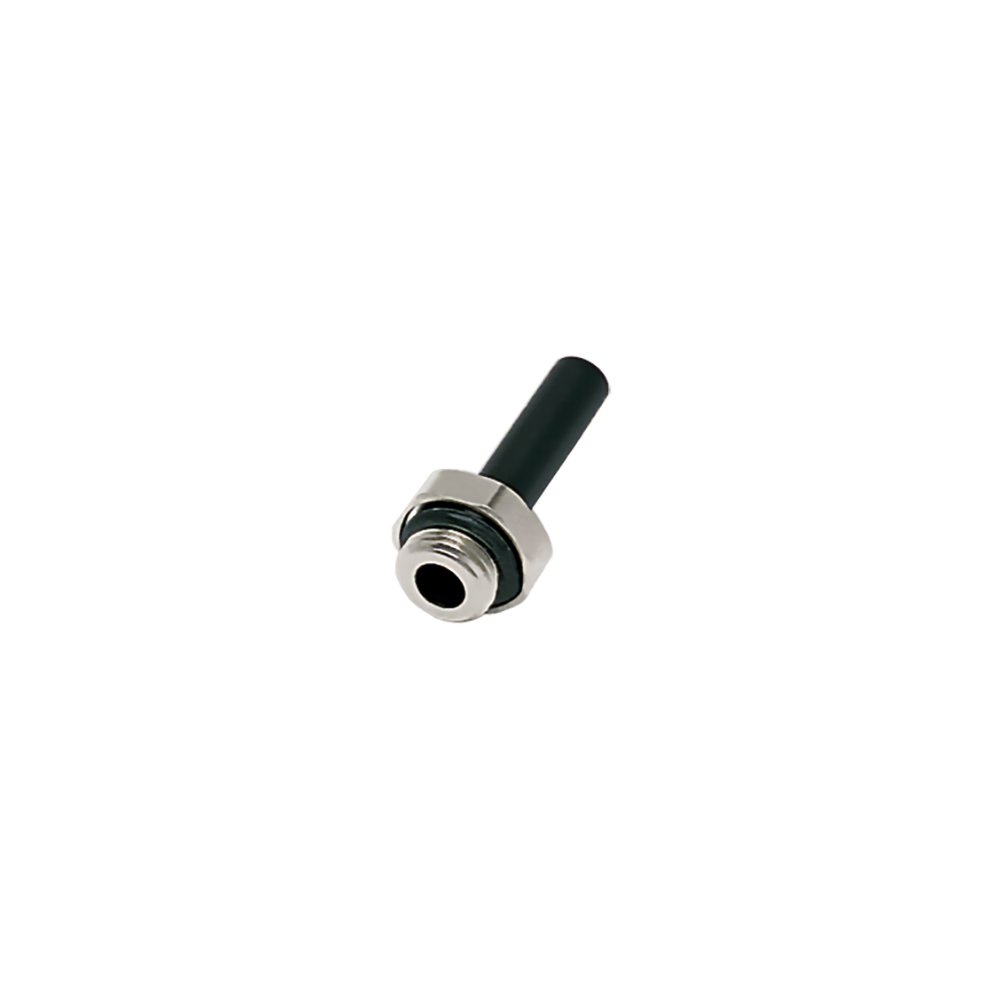

3131 04 20 by Parker | Legris Stud Fitting | 5/32" Tube Stem x 10-32 Male UNF Thread | 8 mm Hex | 1.24" Length | Straight | Nylon | Pack of 10

3131 04 20 by Parker | Legris Stud Fitting | 5/32" Tube Stem x 10-32 Male UNF Thread | 8 mm Hex | 1.24" Length | Straight | Nylon | Pack of 10

Sale price$151.70

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3131 Stud Standpipe, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $142.60
20–59 $128.95
60+ $113.78
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3131 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F H H1 Kg
3131 04 20 5/32" 10-32 .14" 8 mm 1.24" .14" .002 Kg
3131 04 19 4 mm M5x0.8 3.5 mm 8 mm 31 mm 16 mm .002 Kg
3131 04 10 4 mm 1/8" 5 mm 13 mm 30 mm 13.5 mm .005 Kg
3131 04 13 4 mm 1/4" 5.5 mm 16 mm 31 mm 13.5 mm .010 Kg
3131 06 10 6 mm 1/8" 5 mm 13 mm 32 mm 13.5 mm .005 Kg
3131 06 13 6 mm 1/4" 5.5 mm 16 mm 33 mm 13.5 mm .010 Kg
3131 08 10 8 mm 1/8" 5 mm 13 mm 35.5 mm 12.5 mm .008 Kg
3131 08 13 8 mm 1/4" 5.5 mm 16 mm 34.5 mm 10.5 mm .010 Kg
3131 08 17 8 mm 3/8" 5.5 mm 20 mm 34.5 mm 10.5 mm .015 Kg
3131 10 13 10 mm 1/4" 5.5 mm 16 mm 43.5 mm 17.5 mm .012 Kg
3131 10 17 10 mm 3/8" 5.5 mm 20 mm 41.5 mm 15.5 mm .015 Kg
3131 10 21 10 mm 1/2" 7 mm 24 mm 41.5 mm 15.5 mm .024 Kg
3131 12 17 12 mm 3/8" 5.5 mm 20 mm 42 mm 12 mm .015 Kg
3131 12 21 12 mm 1/2" 7 mm 24 mm 43.5 mm 12 mm .024 Kg
3131 14 17 14 mm 3/8" 5.5 mm 20 mm 46.5 mm 14 mm .016 Kg
3131 14 21 14 mm 1/2" 7 mm 24 mm 48 mm 13.5 mm .025 Kg
