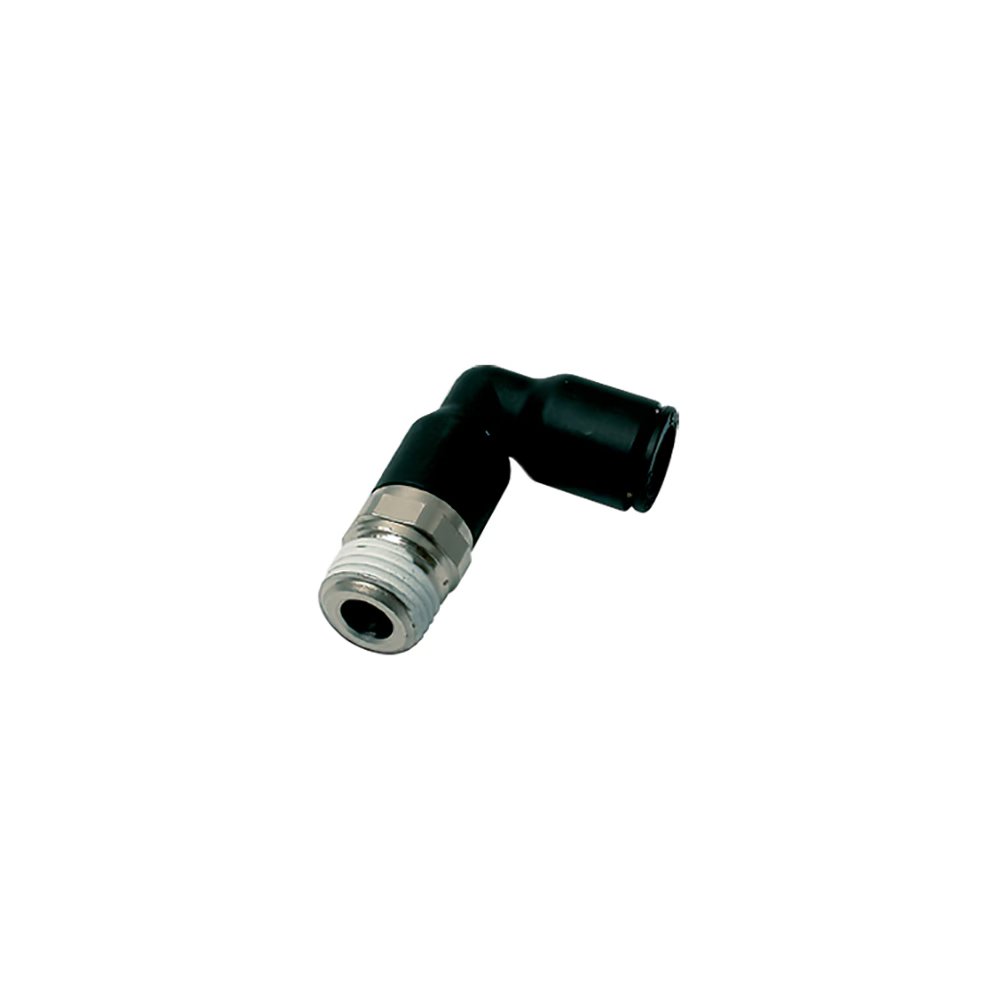

3129 10 17 by Parker | Legris Stud Fitting | 10 mm Push-to-Connect x 3/8" Male Swivel BSPT Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 10

3129 10 17 by Parker | Legris Stud Fitting | 10 mm Push-to-Connect x 3/8" Male Swivel BSPT Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 10

Sale price$239.73

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3129 Extended Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $225.35
30–59 $203.77
60+ $179.80
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3129 Series
Shape:

90° Elbow
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C F G H L Kg
3129 04 10 4 mm 1/8" 10 mm 8.5 mm 23 mm 19 mm .008 Kg
3129 04 13 4 mm 1/4" 14 mm 8.5 mm 23.5 mm 19 mm .018 Kg
3129 06 10 6 mm 1/8" 10 mm 10.5 mm 27 mm 22.5 mm .010 Kg
3129 06 13 6 mm 1/4" 14 mm 10.5 mm 27.5 mm 22.5 mm .020 Kg
3129 08 10 8 mm 1/8" 13 mm 13.5 mm 34.5 mm 29.5 mm .018 Kg
3129 08 13 8 mm 1/4" 14 mm 13.5 mm 32.5 mm 29.5 mm .022 Kg
3129 08 17 8 mm 3/8" 17 mm 13.5 mm 33 mm 29.5 mm .032 Kg
3129 10 13 10 mm 1/4" 15 mm 16 mm 39.5 mm 34.5 mm .031 Kg
3129 10 17 10 mm 3/8" 17 mm 16 mm 39.5 mm 34.5 mm .042 Kg
3129 10 21 10 mm 1/2" 21 mm 16 mm 39.5 mm 34.5 mm .058 Kg
3129 12 13 12 mm 1/4" 19 mm 19 mm 45.5 mm 40.5 mm .051 Kg
3129 12 17 12 mm 3/8" 19 mm 19 mm 45.5 mm 40.5 mm .047 Kg
3129 12 21 12 mm 1/2" 21 mm 19 mm 45.5 mm 40.5 mm .053 Kg
3129 14 17 14 mm 3/8" 21 mm 22 mm 51.5 mm 46.5 mm .065 Kg
3129 14 21 14 mm 1/2" 21 mm 2 mm 51.5 mm 46.5 mm .071 Kg

Pre-coated thread

The body swivels for positioning purposes.
