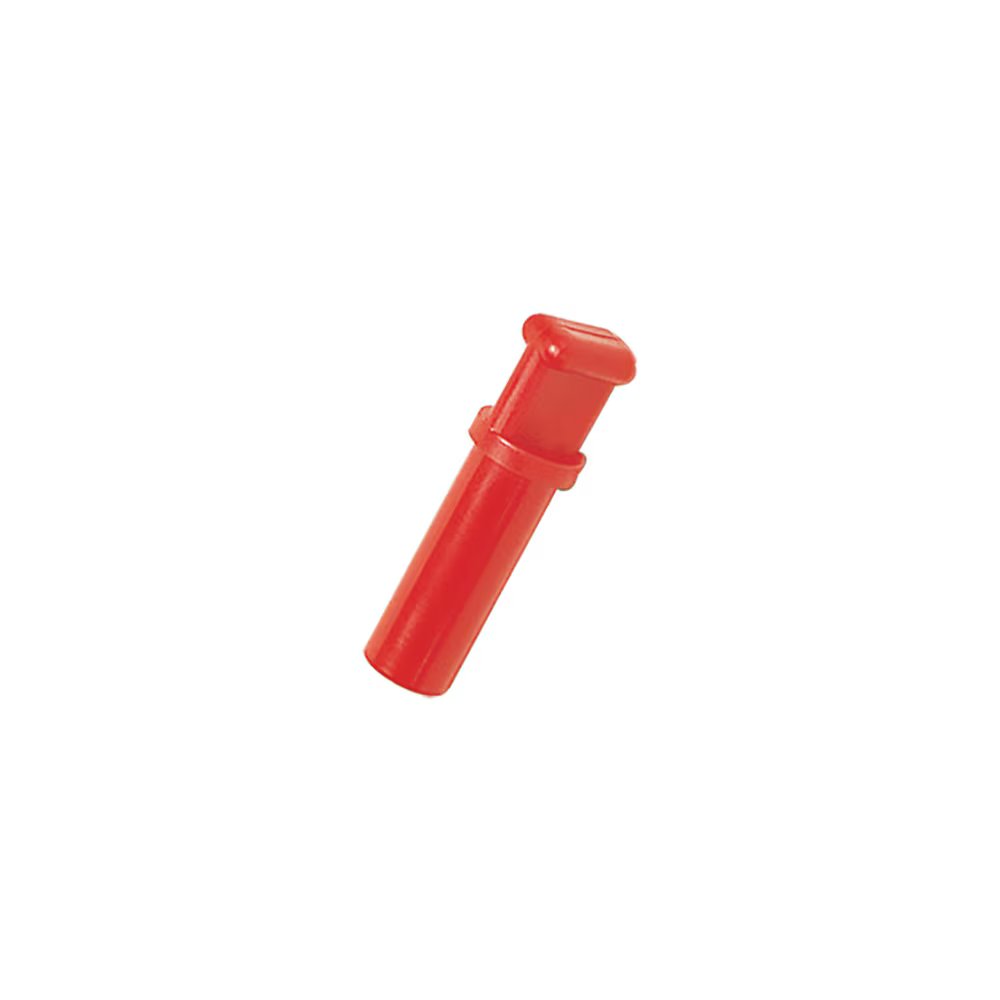

3126 08 00 by Parker | Legris Plug-In Fittings | 8 mm Stem | 35 mm Length | Polymer | Pack of 50
by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3126 Blanking Plug
Package Quantity: 50 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $76.66 |
| 20–59 | $69.32 |
| 60+ | $61.16 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
No Orientation
Ends Configuration:
Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||
|---|---|---|---|---|---|
| Part Number | ØD | G | L | L1 | Kg |
| 3126 03 00 | 3 mm | 6 mm | 25 mm | 13.5 mm | .001 Kg |
| 3126 04 00 | 4 mm | 4 mm | 30 mm | 15.5 mm | .001 Kg |
| 3126 06 00 | 6 mm | 8 mm | 33 mm | 16.5 mm | .001 Kg |
| 3126 08 00 | 8 mm | 10 mm | 35 mm | 17.5 mm | .001 Kg |
| 3126 10 00 | 10 mm | 12 mm | 42 mm | 21 mm | .002 Kg |
| 3126 12 00 | 12 mm | 14 mm | 45 mm | 22 mm | .003 Kg |
| 3126 14 00 | 14 mm | 16 mm | 49 mm | 23.5 mm | .005 Kg |
| 3126 16 00* | 16 mm | 19 mm | 57 mm | 30.5 mm | .064 Kg |
*Nickel-plated brass
