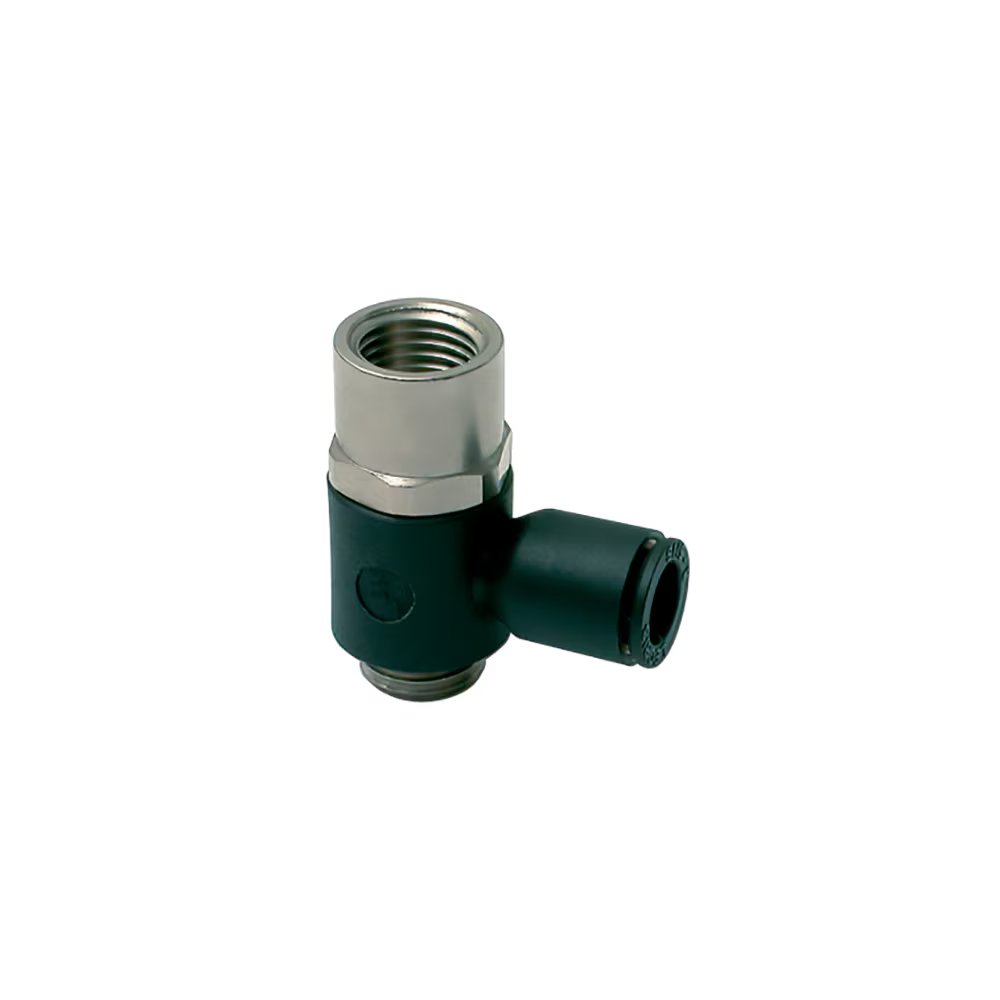

3124 06 13 by Parker | Legris Banjo Fittings | 6 mm Push-to-Connect x 1/4" Male/Female BSPP Thread | 38.5 mm Length | Banjo | Polymer | Pack of 10

3124 06 13 by Parker | Legris Banjo Fittings | 6 mm Push-to-Connect x 1/4" Male/Female BSPP Thread | 38.5 mm Length | Banjo | Polymer | Pack of 10

Sale price$197.02

by Parker Hannifin
Banjo Fittings:3124 - banjo with female BSPP bolt metric tube to BSPP or M5

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $185.20
20–59 $167.47
60+ $147.77
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3124 Series
Shape:

Tee

Ends Configuration:
  • 6mm Push-to-Connect
  • 1/4in Male BSPP
  • 1/4in Female BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F G H L1 L Kg
3124 04 10 4 mm 1/4" 4 mm 13 mm 8.5 mm 25.5 mm 7 mm 18.5 mm .012 Kg
3124 06 13 6 mm 1/4" 5.5 mm 17 mm 10.5 mm 33 mm 9 mm 22 mm .031 Kg
3124 08 17 8 mm 3/8" 5.5 mm 20 mm 13.5 mm 37.5 mm 11 mm 29 mm .043 Kg

This product family was developed to allow assembly of a function fitting on a cylinder

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
