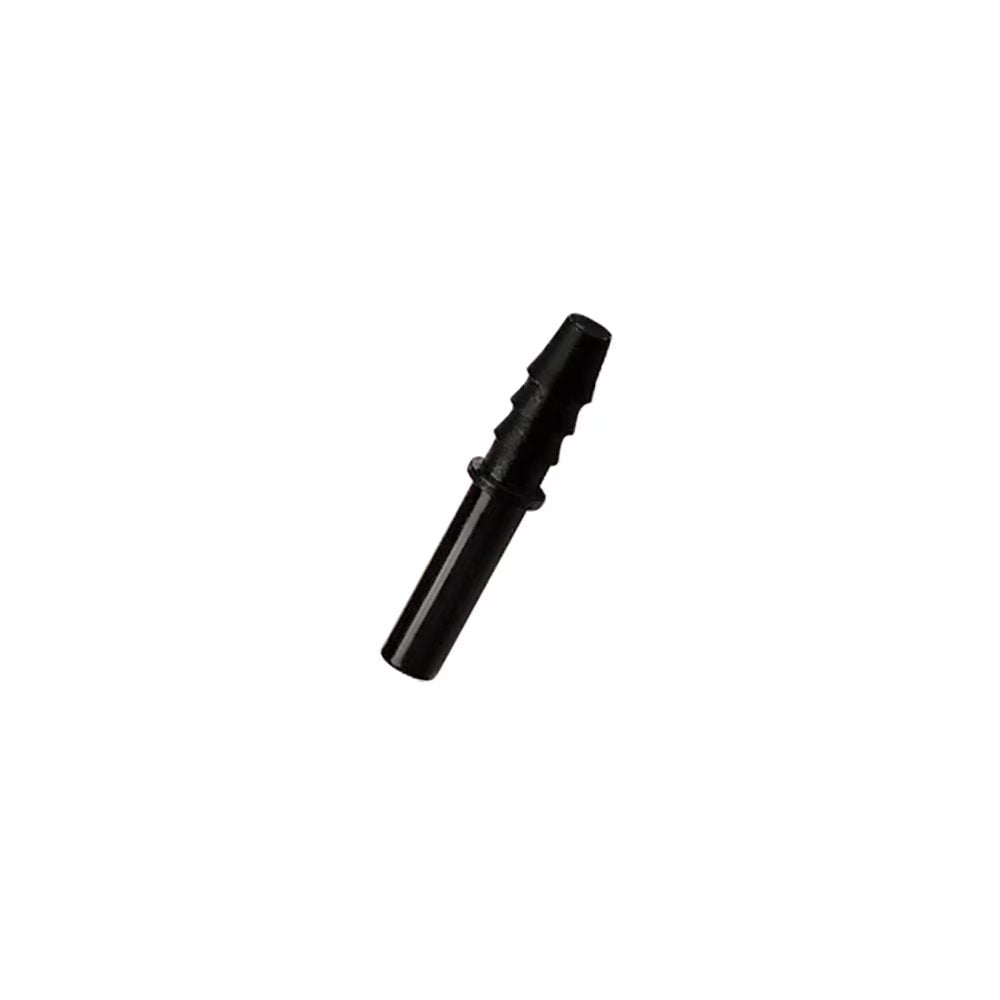

3122 08 56 by Parker | Legris Plug-In Fittings | 8 mm Tube Stem x 6.3 mm Barb | 39.5 mm Length | Straight | Polymer | Pack of 10

3122 08 56 by Parker | Legris Plug-In Fittings | 8 mm Tube Stem x 6.3 mm Barb | 39.5 mm Length | Straight | Polymer | Pack of 10

Sale price$45.35
Quantity Price Each
50–99 $40.82
100+ $36.28
Discounts applied at checkout.

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3122 Plug-In Barb Connector

Package Quantity: 10 Units

Product Data:

Brand:
  • LF 3000®
Series:
  • 3122 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 ØD3 L L1 L2 Kg
3122 04 53 4 mm 3.2 mm - 37 mm 25 mm 17 mm .004 Kg
3122 04 05 4 mm 5 mm - 37 mm 25 mm 17 mm .001 Kg
3122 06 05 6 mm 5 mm - 39 mm 25 mm 17 mm .001 Kg
3122 08 56 8 mm 6.3 mm - 39.5 mm 21 mm 17 mm .001 Kg
3122 08 08 8 mm 8 mm - 44.5 mm 26 mm 22 mm .001 Kg
3122 10 56 10 mm 6.3 mm - 45 mm 24.5 mm 17 mm .002 Kg
3122 10 08 10 mm 8 mm - 50 mm 39.5 mm 22 mm .002 Kg
3122 12 08 12 mm 8 mm - 50 mm 26 mm 22 mm .004 Kg
3122 12 10 12 mm 10 mm - 48.5 mm 25.5 mm 22.5 mm .002 Kg
3122 12 62 12 mm 12.5 mm - 57 mm 32 mm 27.5 mm .004 Kg
3122 14 62 14 mm 12.5 mm - 62 mm 35 mm 27.5 mm .006 Kg
3122 56 55* 1/4" 3/16" .27" 1.65" 1.00" .67" .006 Kg
3122 60 08 3/8" .32" .39" 1.97" 1.16" .87" .004 Kg
