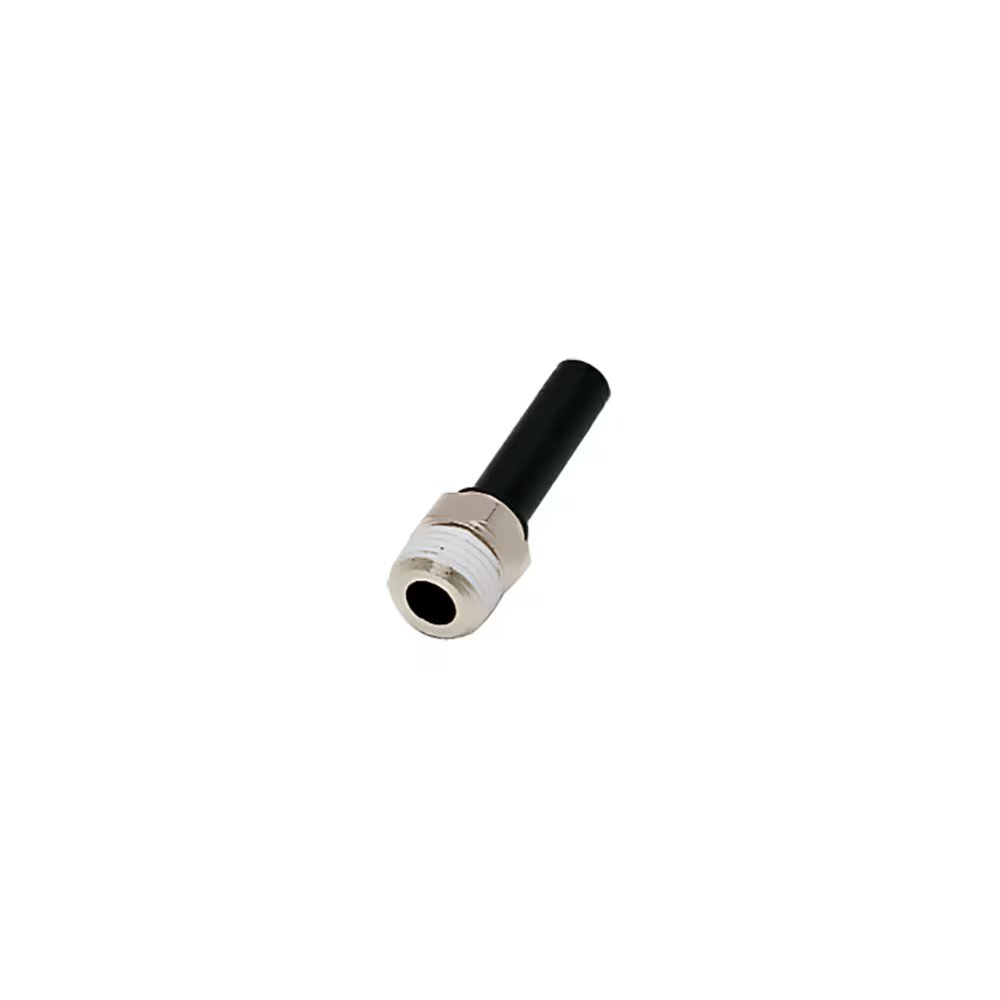

3121 08 10 by Parker | Legris Stud Fitting | 8 mm Push-to-Connect x 1/8" Male BSPT Thread | 10 mm Hex | Straight | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3121 Stud Standpipe, Male BSPT Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $81.98 |
| 20–59 | $74.13 |
| 60+ | $65.41 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | H | H1 | Kg |
| 3121 04 10 | 4 mm | 1/8" | 10 mm | 26 mm | 14 mm | .005 Kg |
| 3121 04 13 | 4 mm | 1/4" | 14 mm | 26.5 mm | 14.5 mm | .014 Kg |
| 3121 06 10 | 6 mm | 1/8" | 10 mm | 28 mm | 14 mm | .005 Kg |
| 3121 06 13 | 6 mm | 1/4" | 14 mm | 28.5 mm | 14.5 mm | .014 Kg |
| 3121 08 10 | 8 mm | 1/8" | 10 mm | 29.5 mm | 11 mm | .005 Kg |
| 3121 08 13 | 8 mm | 1/4" | 14 mm | 28.5 mm | 10 mm | .012 Kg |
| 3121 10 13 | 10 mm | 1/4" | 15 mm | 36 mm | 15.5 mm | .012 Kg |
| 3121 10 17 | 10 mm | 3/8" | 17 mm | 36 mm | 017 mm | .017 Kg |
| 3121 10 21 | 10 mm | 1/2" | 21 mm | 36 mm | 15.5 mm | .032 Kg |
| 3121 12 17 | 12 mm | 3/8" | 17 mm | 36.5 mm | 12 mm | .018 Kg |
| 3121 12 21 | 12 mm | 1/2" | 21 mm | 36.5 mm | 12 mm | .030 Kg |
Pre-coated thread
