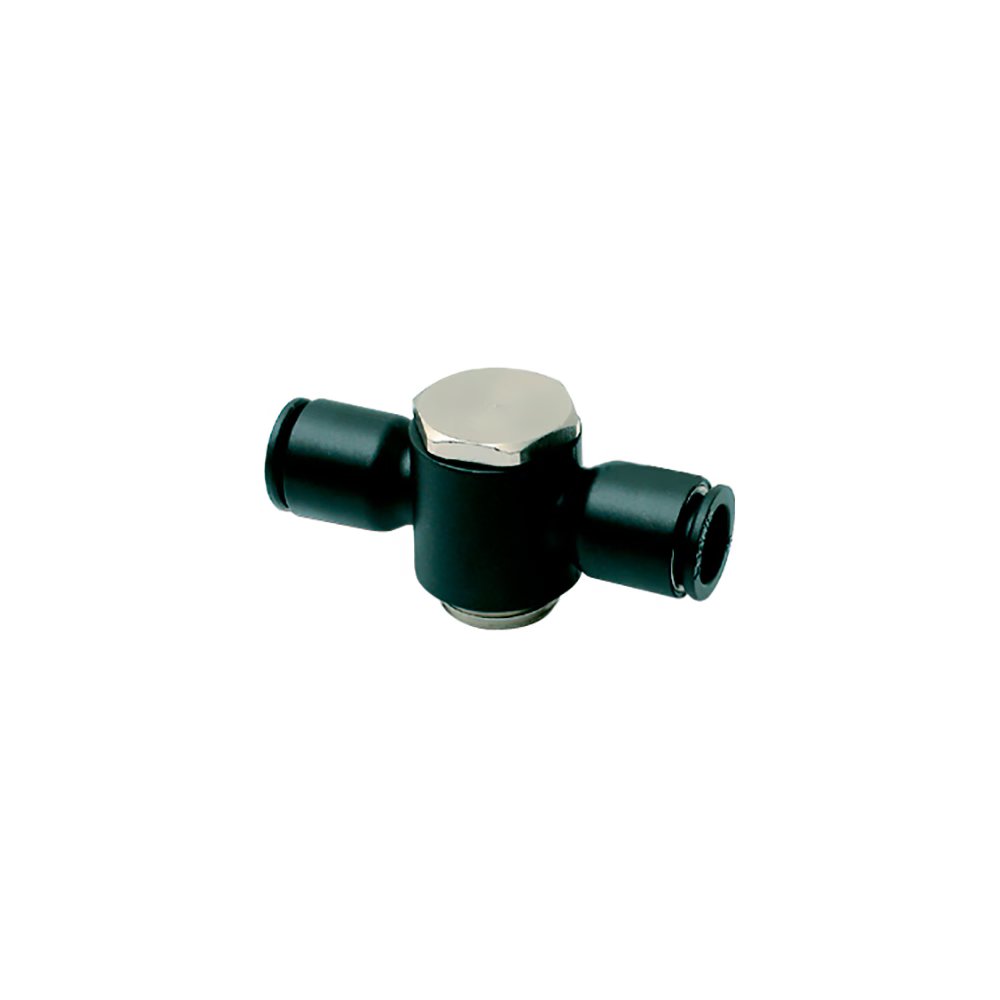

3119 06 13 by Parker | Legris Banjo Fittings | 6 mm Tube Size x 1/4" Male BSPP Thread | 53 mm Length | Double Banjo | Polymer | Pack of 10

3119 06 13 by Parker | Legris Banjo Fittings | 6 mm Tube Size x 1/4" Male BSPP Thread | 53 mm Length | Double Banjo | Polymer | Pack of 10

Sale price$124.73

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3119 Double Banjo, BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $117.25
20–59 $106.02
60+ $93.55
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3119 Series
Shape:

Banjo

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • 1/4in Male BSPP
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F G H L/2 Kg
3119 04 19* 4 mm M5x0.8 4 mm - 8.5 mm 13 mm 8 mm .005 Kg
3119 06 10 4 mm 1/8" 4 mm 13 mm 11 mm 17 mm 20 mm .014 Kg
3119 06 13 6 mm 1/4" 5.5 mm 17 mm 13.5 mm 21 mm 26.5 mm .035 Kg
3119 08 13 8 mm 1/4" 5.5 mm 17 mm 13.5 mm 21 mm 27 mm .026 Kg
3119 08 17 8 mm 3/8" 5.5 mm 20 mm 16 mm 24.5 mm 30.5 mm .053 Kg

*With screwdriver slot
