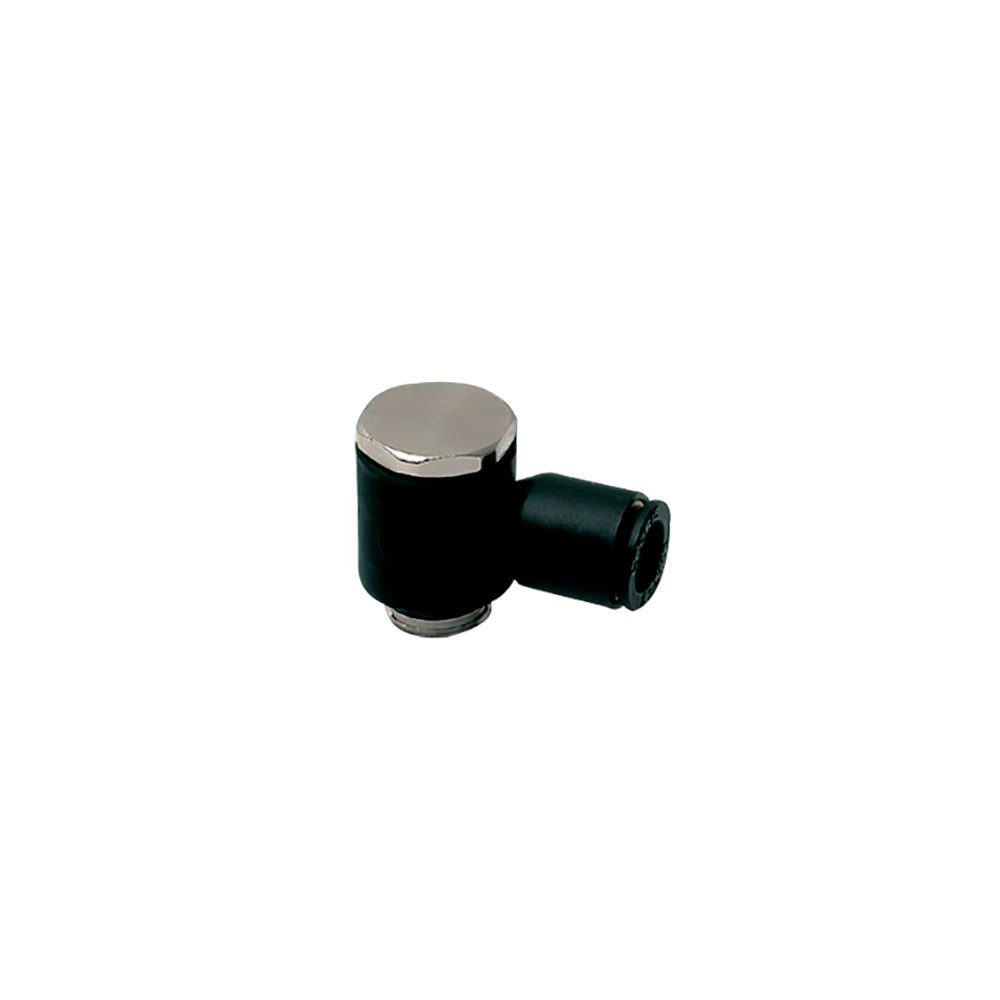

3118 06 13 by Parker | Legris Banjo Fittings | 6 mm Tube Size x 1/4" Male BSPP Thread | 31.50 mm Length | Banjo | Polymer | Pack of 10

3118 06 13 by Parker | Legris Banjo Fittings | 6 mm Tube Size x 1/4" Male BSPP Thread | 31.50 mm Length | Banjo | Polymer | Pack of 10

Sale price$108.90

by Parker Hannifin
LF 3000® Push-In Fittings / Banjo Fittings:3118 Single Banjo, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $102.37
20–59 $92.57
60+ $81.68
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3118 Series
Shape:

90 Degree

Ends Configuration:
  • 6mm Push-to-Connect
  • 1/4in Male BSPP
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C E F G H L1 L2 Kg
3118 03 09* 3 mm M3x0.5 3 mm - 8.5 mm 13 mm 5 mm 16 mm .005 Kg
3118 04 19* 4 mm M5x0.8 4 mm - mm 8.5 mm 13 mm 5 mm 16.5 mm .004 Kg
3118 04 10 4 mm 1/8" 4 mm 13 mm 8.5 mm 17 mm 7 mm 18.5 mm .012 Kg
3118 06 19* 6 mm M5x0.8 4 mm - mm 10.5 mm 13 mm 7 mm 18.5 mm .004 Kg
3118 06 10 6 mm 1/8" 4 mm 13 mm 10.5 mm 17 mm 7 mm 20 mm .013 Kg
3118 06 13 6 mm 1/4" 5.5 mm 17 mm 10.5 mm 21 mm 9.5 mm 22 mm .023 Kg
3118 08 10 8 mm 1/8" 4 mm 13 mm 13.5 mm 16.5 mm 7 mm 25 mm .014 Kg
3118 08 13 8 mm 1/4" 5.5 mm 17 mm 13.5 mm 21 mm 9 mm 27 mm .024 Kg
3118 08 17 8 mm 3/8" 5.5 mm 20 mm 13.5 mm 24.5 mm 11 mm 29 mm .038 Kg
3118 10 13 10 mm 1/4" 5.5 mm 17 mm 16 mm 21 mm 9.5 mm 29 mm .025 Kg
3118 10 17 10 mm 3/8" 5.5 mm 20 mm 16 mm 24.5 mm 11 mm 31 mm .039 Kg
3118 10 21 10 mm 1/2" 8 mm 25 mm 19 mm 27.5 mm 13.5 mm 36.5 mm .083 Kg
3118 12 17 12 mm 3/8" 5.5 mm 20 mm 19 mm 24.5 mm 11 mm 34.5 mm .040 Kg
3118 12 21 12 mm 1/2" 8 mm 25 mm 19 mm 27.5 mm 13.5 mm 36.5 mm .075 Kg

*With screwdriver slot
