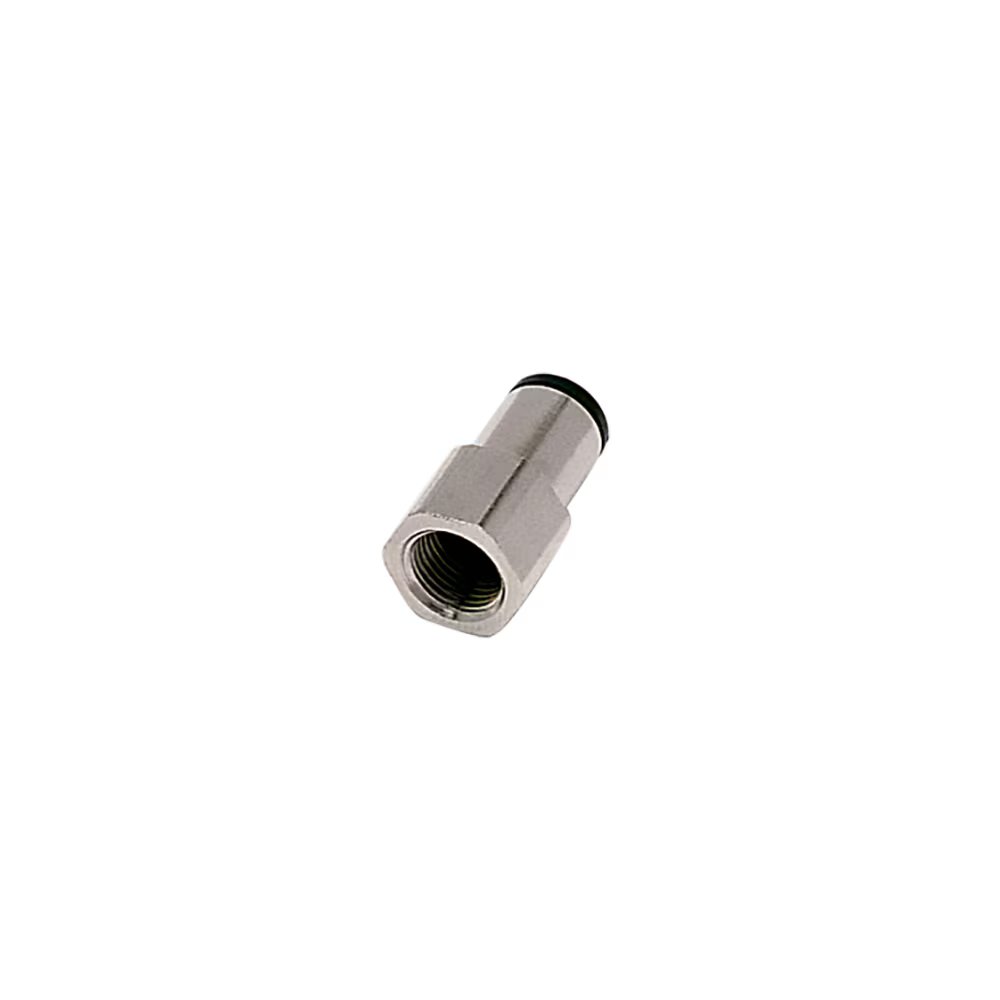

3114 08 17 by Parker | Legris Stud Fitting | 8 mm Push-to-Connect x 3/8" Female BSPP Thread | 19 mm Hex | 34 mm Length | Straight | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3114 Stud Fitting, Female BSPP and Metric Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $105.95 |
| 20–59 | $95.80 |
| 60+ | $84.53 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | H | Kg |
| 3114 04 19 | 4 mm | M5x0.8 | 6.5 mm | 8 mm | 19.5 mm | .005 Kg |
| 3114 04 10 | 4 mm | 1/8" | 9.5 mm | 13 mm | 22.5 mm | .010 Kg |
| 3114 04 13 | 4 mm | 1/4" | 13.5 mm | 16 mm | 26.5 mm | .015 Kg |
| 3114 06 10 | 6 mm | 1/8" | 9.5 mm | 13 mm | 24.5 mm | .011 Kg |
| 3114 06 13 | 6 mm | 1/4" | 13.5 mm | 16 mm | 28.5 mm | .016 Kg |
| 3114 08 10 | 8 mm | 1/8" | 9.5 mm | 13 mm | 29 mm | .015 Kg |
| 3114 08 13 | 8 mm | 1/4" | 13.5 mm | 16 mm | 33 mm | .021 Kg |
| 3114 08 17 | 8 mm | 3/8" | 14 mm | 19 mm | 34 mm | .025 Kg |
| 3114 10 13 | 10 mm | 1/4" | 13.5 mm | 16 mm | 36 mm | .028 Kg |
| 3114 10 17 | 10 mm | 3/8" | 14 mm | 19 mm | 36 mm | .027 Kg |
| 3114 10 21 | 10 mm | 1/2" | 19.5 mm | 24 mm | 41.5 mm | .047 Kg |
| 3114 12 13 | 12 mm | 1/4" | 14 mm | 19 mm | 39.5 mm | .09 Kg |
| 3114 12 17 | 12 mm | 3/8" | 14 mm | 19 mm | 40 mm | .033 Kg |
| 3114 12 21 | 12 mm | 1/2" | 19.5 mm | 24 mm | 45.5 mm | .052 Kg |
| 3114 14 17 | 14 mm | 3/8" | 14 mm | 22 mm | 42.5 mm | .057 Kg |
| 3114 16 21 | 16 mm | 1/2" | 15 mm | 27 mm | 49 mm | .096 Kg |
