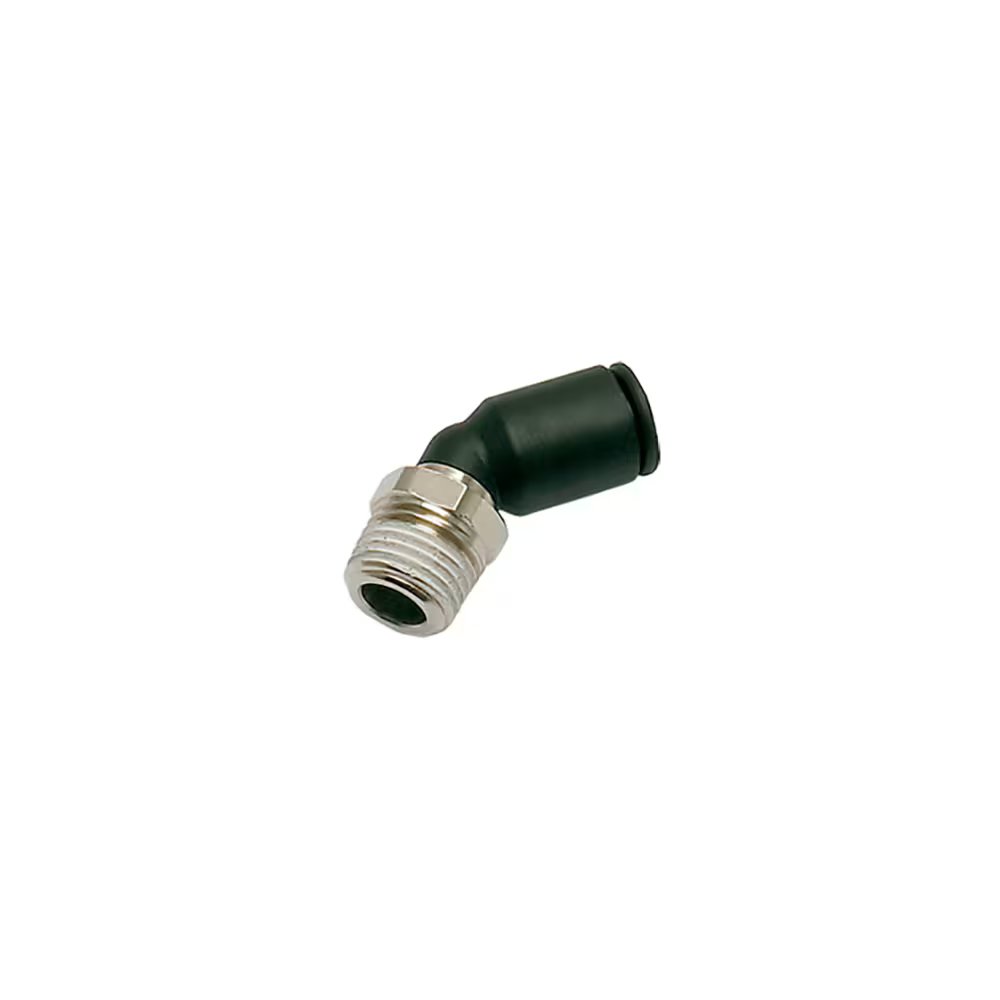

3113 56 11 by Parker | LF3000® Push-to-Connect Fittings | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 11 mm Hex | 45° Elbow | Nylon | Pack of 10

3113 56 11 by Parker | LF3000® Push-to-Connect Fittings | 1/4" Push-to-Connect x 1/8" Male NPT Thread | 11 mm Hex | 45° Elbow | Nylon | Pack of 10

Sale price$56.49

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3133/3113 - 45° male elbow fractional inch tube to male NPT or UNF

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $53.10
40–79 $48.02
80+ $42.37
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3113 Series
Shape:

45° Elbow
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD NPT / UNF (C) F G H L Oz
3133 53 20 1/8" 10-32 8 mm .35" .91" .49" .28 Oz
3113 53 08 1/8" 1/16" 10 mm .35" .83" .49" .21 Oz
3113 53 11 1/8" 1/8" 11 mm .35" .81" .49" .28 Oz
3113 53 14 1/8" 1/4" - - - - -
3113 55 11* 3/16" 1/8" 11 mm .43" 1.06" .67" .28 Oz
3113 04 11 5/32" 1/8" - - - - -
3113 04 14 5/32" 1/4" - - - - -
3113 04 20 5/32" 10-32 8 mm .43" 1.06" .57" .28 Oz
3113 56 20 1/4" 10-32 8 mm .35" .92" .51" .26 Oz
3113 56 11 1/4" 1/8" 11 mm .43" .98" .57" .28 Oz
3113 56 14 1/4" 1/4" 14 mm .43" .98" .57" .60 Oz
3113 08 11 5/16" 1/8" - - - - -
3113 08 14 5/16" 1/4" - - - - -
3113 08 18 5/16" 3/8" - - - - -
3113 60 11 3/8" 1/8" 15 mm .63" 1.36" .90" .65 Oz
3113 60 14 3/8" 1/4" 17 mm .63" 1.36" .91" .71 Oz
3113 60 18 3/8" 3/8" 18 mm .63" 1.36" .91" .81 Oz
