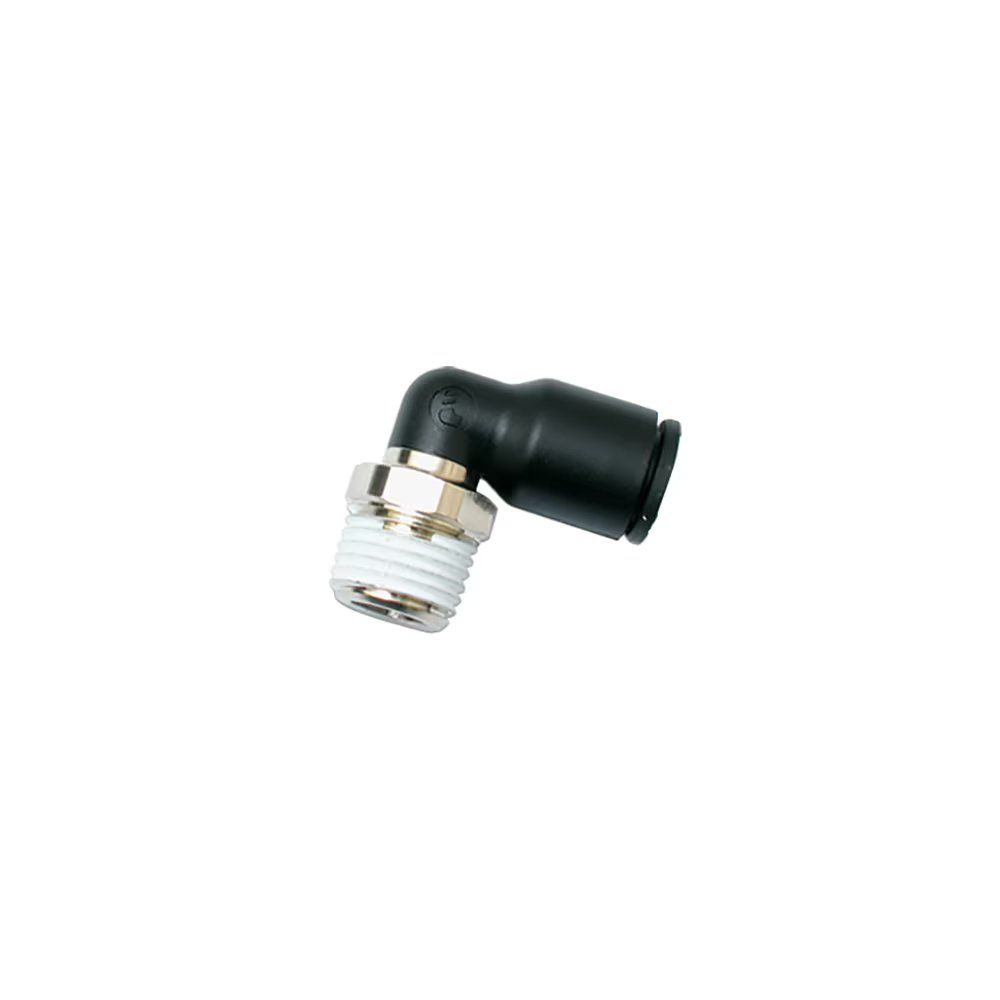

3109 60 17 by Parker | Legris Stud Fitting | 3/8" Push-to-Connect x 3/8" Male Swivel BSPT Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3109 Stud Elbow, Male BSPT Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $80.05 |
| 30–59 | $72.39 |
| 60+ | $63.87 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | G | H | L | Kg |
| 3109 53 10 | 1/8" | 1/8" | 10 mm | 8.6 mm | 13.5 mm | 14.5 mm | .011 Kg |
| 3109 56 10 | 1/4" | 1/8" | 10 mm | 11 mm | 17 mm | 18 mm | .006 Kg |
| 3109 56 13 | 1/4" | 1/4" | 14 mm | 11 mm | 17 mm | 18 mm | .013 Kg |
| 3109 60 13 | 3/8" | 1/4" | 15 mm | 16 mm | 22.1 mm | 26.4 mm | .016 Kg |
| 3109 60 17 | 3/8" | 3/8" | 17 mm | 16 mm | 22.1 mm | 26.4 mm | .054 Kg |
| 3109 62 13 | 1/2" | 1/4" | 20 mm | 22.1 mm | 31 mm | 35.1 mm | .064 Kg |
| 3109 62 17 | 1/2" | 3/8" | 20 mm | 22.1 mm | 31 mm | 35.1 mm | .067 Kg |
| 3109 62 21 | 1/2" | 1/2" | 24 mm | 22.1 mm | 28.4 mm | 35.1 mm | .046 Kg |
Pre-coated thread
The body swivels for positioning purposes.
5/32”(4 mm) and 5/16”(8 mm) are also available.
