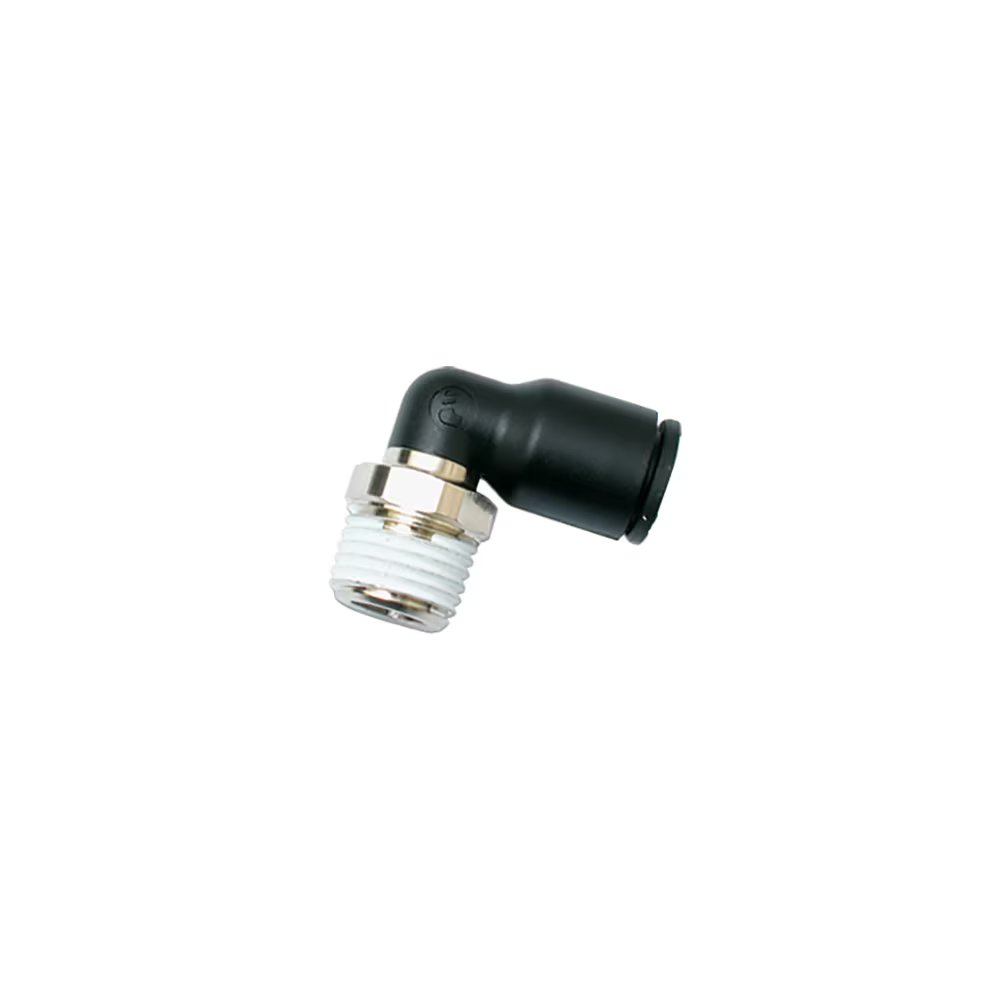

3109 12 22 by Parker | Legris Stud Fitting | 12mm Push-to-Connect x 1/2" Male Swivel NPT Thread | 22mm Hex | 90° Elbow | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3109 Stud Elbow, Male NPT Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $158.85 |
| 20–59 | $143.64 |
| 60+ | $126.74 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | G | H | L | Kg |
| 3109 04 20 | 5/32" | 10-32 | 8 mm | .33" | .53" | .55" | .006 Kg |
| 3109 04 11 | 4 mm | 1/8" | 11 mm | 8.4 mm | 13.5 mm | 14 mm | .007 Kg |
| 3109 04 14 | 4 mm | 1/4" | 14 mm | 8.4 mm | 14 mm | 14 mm | .016 Kg |
| 3109 06 11 | 6 mm | 1/8" | 11 mm | 10.5 mm | 15.5 mm | 16 mm | .007 Kg |
| 3109 06 14 | 6 mm | 1/4" | 14 mm | 10.5 mm | 16 mm | 16 mm | .016 Kg |
| 3109 08 11 | 8 mm | 1/8" | 11 mm | 13.5 mm | 19 mm | 23.1 mm | .009 Kg |
| 3109 08 14 | 8 mm | 1/4" | 14 mm | 13.5 mm | 18 mm | 23.1 mm | .009 Kg |
| 3109 08 18 | 5/16" | 3/8" | 18 mm | .53" | .73" | .91" | .021 Kg |
| 3109 10 14 | 10 mm | 1/4" | 15 mm | 16 mm | 23 mm | 26.5 mm | .017 Kg |
| 3109 10 18 | 10 mm | 3/8" | 18 mm | 16 mm | 22 mm | 26.5 mm | .023 Kg |
| 3109 10 22 | 10 mm | 1/2" | 22 mm | 16 mm | 23 mm | 26.5 mm | .046 Kg |
| 3109 12 22 | 12 mm | 1/2" | 22 mm | 19 mm | 26 mm | 31 mm | .048 Kg |
Pre-coated thread
The body swivels for positioning purposes.
