3109 10 17 by Parker | Legris Stud Fitting | 10 mm Push-to-Connect x 3/8" Male Swivel BSPT Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 10

3109 10 17 by Parker | Legris Stud Fitting | 10 mm Push-to-Connect x 3/8" Male Swivel BSPT Thread | 17 mm Hex | 90° Elbow | Polymer | Pack of 10

Sale price$136.41

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3109 Stud Elbow, Male BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $128.23
20–59 $115.95
60+ $102.31
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3109 Series
Shape:

90° Elbow
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C F G H L Kg
3109 04 10 4 mm 1/8" 10 mm 8.5 mm 13 mm 14 mm .006 Kg
3109 04 13 4 mm 1/4" 14 mm 8.5 mm 14 mm 14 mm .015 Kg
3109 04 17 4 mm 3/8" 17 mm 8.5 mm 13.5 mm 14 mm .019 Kg
3109 06 10 6 mm 1/8" 10 mm 10.5 mm 15.5 mm 16 mm .006 Kg
3109 06 13 6 mm 1/4" 14 mm 10.5 mm 16 mm 16 mm .015 Kg
3109 06 17 6 mm 3/8" 17 mm 10.5 mm 16 mm 16 mm .020 Kg
3109 06 21 6 mm 1/2" 21 mm 10.5 mm 16.5 mm 16 mm .035 Kg
3109 08 10 8 mm 1/8" 10 mm 13.5 mm 19 mm 23 mm .007 Kg
3109 08 13 8 mm 1/4" 14 mm 13.5 mm 18 mm 23 mm .014 Kg
3109 08 17 8 mm 3/8" 17 mm 13.5 mm 18 mm 23 mm .018 Kg
3109 08 21 8 mm 1/2" 21 mm 13.5 mm 19.5 mm 23 mm .032 Kg
3109 10 10 10 mm 1/8" 15 mm 16 mm 23 mm 26.5 mm .012 Kg
3109 10 13 10 mm 1/4" 15 mm 16 mm 22 mm 26.5 mm .014 Kg
3109 10 17 10 mm 3/8" 17 mm 16 mm 22 mm 26.5 mm .020 Kg
3109 10 21 10 mm 1/2" 21 mm 16 mm 22 mm 26.5 mm .034 Kg
3109 12 13 12 mm 3/8" 15 mm 19 mm 25 mm 31 mm .016 Kg
3109 12 17 12 mm 3/8" 17 mm 19 mm 25 mm 31 mm .022 Kg
3109 12 21 12 mm 1/2" 21 mm 19 mm 25 mm 31 mm .037 Kg
3109 14 17 14 mm 3/8" 20 mm 22 mm 30.5 mm 35.5 mm .031 Kg
3109 14 21 14 mm 1/2" 24 mm 22 mm 28.5 mm 35.5 mm .042 Kg
3109 16 17 16 mm 3/8" 27 mm 27 mm 53 mm 39 mm .106 Kg
3109 16 21 16 mm 1/2" 27 mm 27 mm 53 mm 39 mm .104 Kg

Pre-coated thread

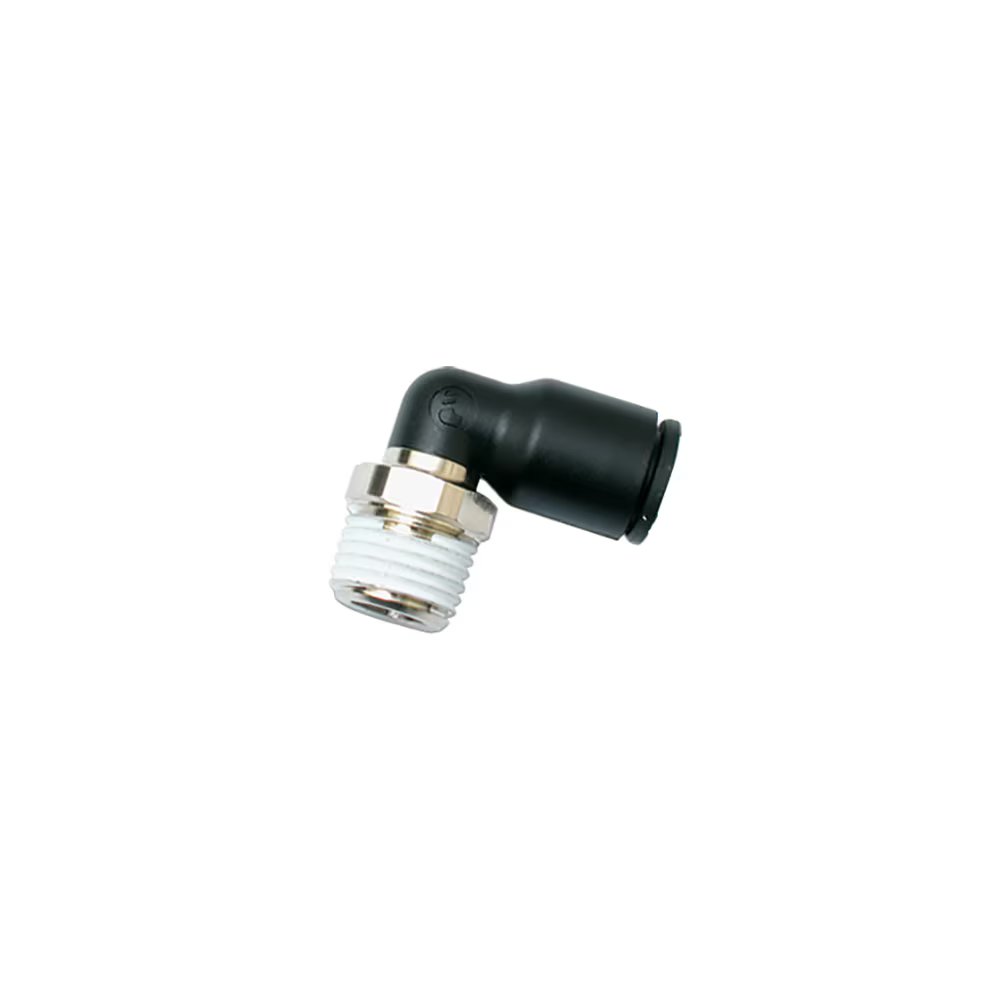

The body swivels for positioning purposes.
