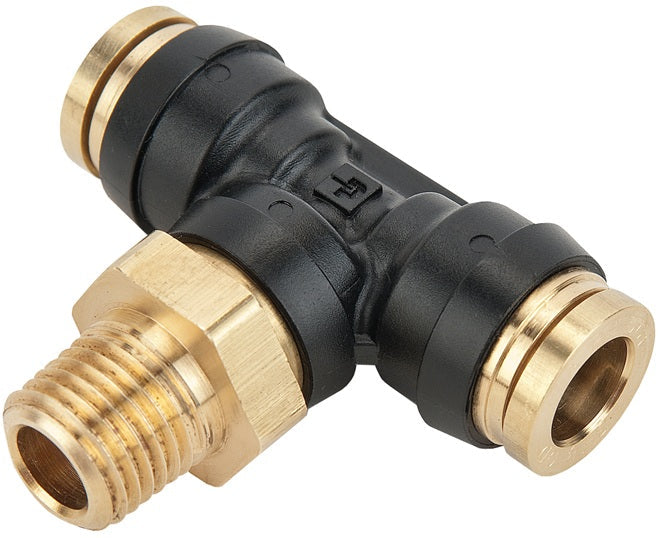

31086022DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Male Branch Tee | 1/2" Male NPT x 3/8" Tube OD x 3/8" Tube OD | Composite/Brass

31086022DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Male Branch Tee | 1/2" Male NPT x 3/8" Tube OD x 3/8" Tube OD | Composite/Brass

Sale price$29.28

Dixon Valve & Coupling
Legris D.O.T. Push-In Fitting | Male Branch Tee | Tube End x Tube End x Male NPT

Designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle.
Buy More, Save More!
Quantity Price Each
10–39 $27.52
40–79 $24.89
80+ $21.96
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 3/8in Push-to-Connect
  • 1/2in Male NPT
Material(s):
  • Plastic
  • Brass
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body (Unless noted below)
  • Brass collet
  • Stainless steel tube support
  • Nitrile Rubber seal
  • Brass threads
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • 1/4", 3/8", and 1/2" diameters meet D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3.
  • Fitting can be oriented 360°, allowing proper positioning of the fitting.
Part Number Tube O.D. Male NPT
31085611DOT 1/4" 1/8"
31085614DOT 1/4" 1/4"
31085618DOT 1/4" 3/8"
31086014DOT 3/8" 1/4"
31086018DOT 3/8" 3/8"
31086022DOT 3/8" 1/2"
31086214DOT 1/2" 1/4"
31086218DOT 1/2" 3/8"
31086222DOT 1/2" 1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
