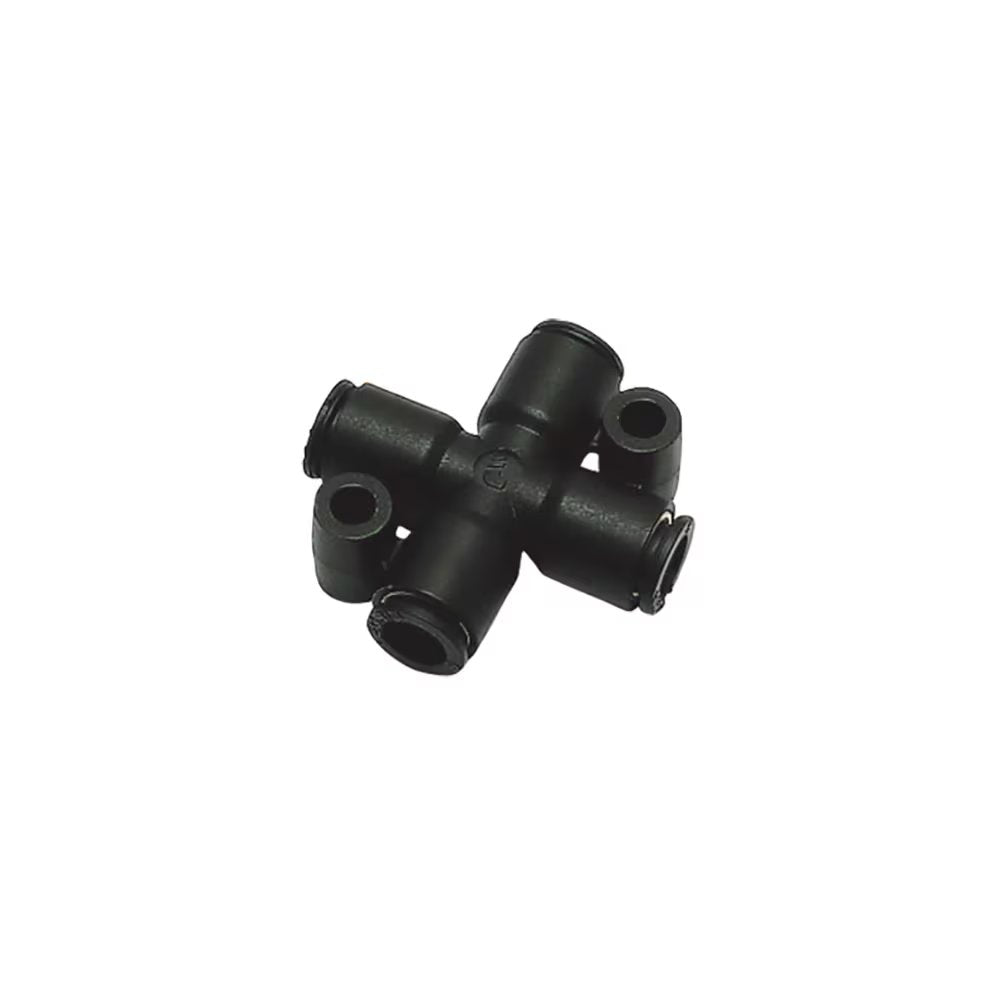

3107 08 06 by Parker | Legris Push-In Fitting | 6 mm Push-to-Connect x 6 mm Push-to-Connect x 8 mm Push-to-Connect | 46 mm Length | Cross | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3107 Equal and Unequal Cross
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $127.13 |
| 20–59 | $114.95 |
| 60+ | $101.43 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Cross
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | ØD1 | ØD2 | G | H | N | ØT | Kg |
| 3107 04 00 | 4 mm | 4 mm | 4 mm | 11 mm | 36 mm | 20 mm | 4.2 mm | .014 Kg |
| 3107 04 06 | 6 mm | 4 mm | 6 mm | 11 mm | 36 mm | 20 mm | 4.2 mm | .009 Kg |
| 3107 06 04 | 4 mm | 4 mm | 6 mm | 11 mm | 36 mm | 20 mm | 4.2 mm | .011 Kg |
| 3107 06 00 | 6 mm | 6 mm | 6 mm | 11 mm | 36 mm | 20 mm | 4.2 mm | .005 Kg |
| 3107 06 08 | 8 mm | 6 mm | 8 mm | 11 mm | 46 mm | 22.5 mm | 4.2 mm | .022 Kg |
| 3107 08 06 | 6 mm | 6 mm | 8 mm | 13.5 mm | 46 mm | 22.5 mm | 4.2 mm | .022 Kg |
| 3107 08 00 | 8 mm | 8 mm | 8 mm | 13.5 mm | 46 mm | 22.5 mm | 4.2 mm | .009 Kg |
