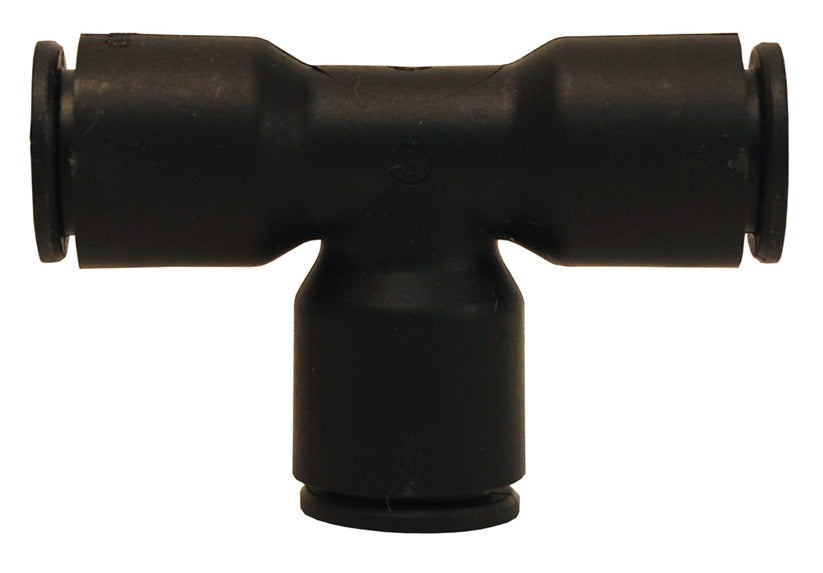

31041000 by Dixon Valve | Legris Metric Push-In Fitting | Union | Tee | 10mm Tube OD x 10mm Tube OD x 10mm Tube OD | Nylon

31041000 by Dixon Valve | Legris Metric Push-In Fitting | Union | Tee | 10mm Tube OD x 10mm Tube OD x 10mm Tube OD | Nylon

Sale price$27.19

Dixon Valve & Coupling
Metric Push-In Fitting | Union | Tee | Tube End x Tube End x Tube End

Compatible tubing: semi-rigid nylon, polyurethane and polyethylene tube.
Buy More, Save More!
Quantity Price Each
10–39 $25.56
40–79 $23.11
80+ $20.39
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 10mm Push-to-Connect
  • 10mm Push-to-Connect
  • Some Ends Match
Material(s):
  • Nylon
Features:
  • Positive seal: sealing and holding is accomplished instantaneously.
  • Reusable: connect and disconnect numerous times.
  • Full flow: fitting seals on outside diameter of tubing.
Construction:
  • Black glass-filled nylon body
  • Polypropylene release button
  • Silicone free
  • Nitrile Rubber D-seal
Installation:
  • Quick connect and disconnect, no tools required.
  • To connect, simply push tubing in.
  • To disconnect, press the release ring towards the fitting and pull tubing out.
Specifications:
  • Temperature Range: -4°F to 175°F (-20°C to 79°C)
  • Vacuum capability: vacuum of 28" Hg (99% vacuum)
  • Pressure Rating: 290 PSI at 70°F (21°C)
Part Number Tube O.D.
31040600 6mm
31041000 10mm

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
