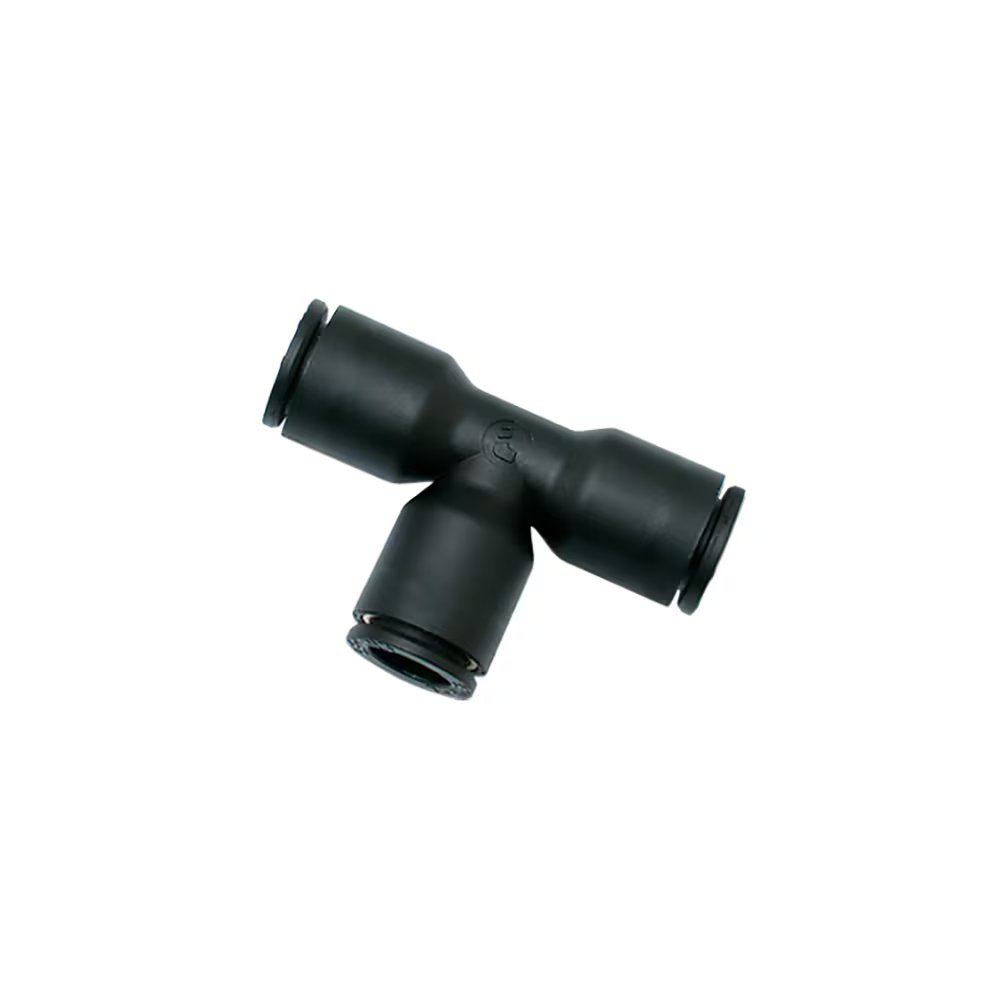

3104 53 00 by Parker | Legris Push-In Fitting | 1/8" Push-to-Connect x 1/8" Push-to-Connect | 29 mm Length | Tee | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3104 Equal and Unequal Tee
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $69.97 |
| 40–79 | $63.27 |
| 80+ | $55.83 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | ØD1 | G | H | L/2 | Kg |
| 3104 04 56 | 5/32" | 1/4" | 11 mm | 23.5 mm | 18 mm | .008 Kg |
| 3104 53 00 | 1/8" | 1/8" | 8.4 mm | 19 mm | 14.5 mm | .003 Kg |
| 3104 53 56 | 1/8" | 1/4" | 11 mm | 23.5 mm | 18 mm | .011 Kg |
| 3104 55 00 | 3/16" | 3/16" | 11 mm | 27.2 mm | 21.6 mm | .016 Kg |
| 3104 56 04 | 1/4" | 5/32" | 11 mm | 23.5 mm | 18.5 mm | .014 Kg |
| 3104 56 00 | 1/4" | 1/4" | 11 mm | 23 mm | 24 mm | .003 Kg |
| 3104 56 53 | 1/4" | 1/8" | 11 mm | 23.5 mm | 18.5 mm | .007 Kg |
| 3104 56 60 | 1/4" | 1/8" | 16 mm | 33.5 mm | 24.5 mm | .017 Kg |
| 3104 60 56 | 3/8" | 1/4" | 16 mm | 32.5 mm | 25.5 mm | .019 Kg |
| 3104 60 00 | 3/8" | 3/8" | 16 mm | 34 mm | 26 mm | .009 Kg |
| 3104 62 00 | 1/2" | 1/2" | 22 mm | 46 mm | 35 mm | .026 Kg |
| 3104 62 56 | 1/2" | 1/4" | 22.1 mm | 45.2 mm | 35.3 mm | .059 Kg |
| 3104 62 60 | 1/2" | 3/8" | 22 mm | 46 mm | 35 mm | .047 Kg |
5/32”(4 mm) and 5/16”(8 mm) also available
