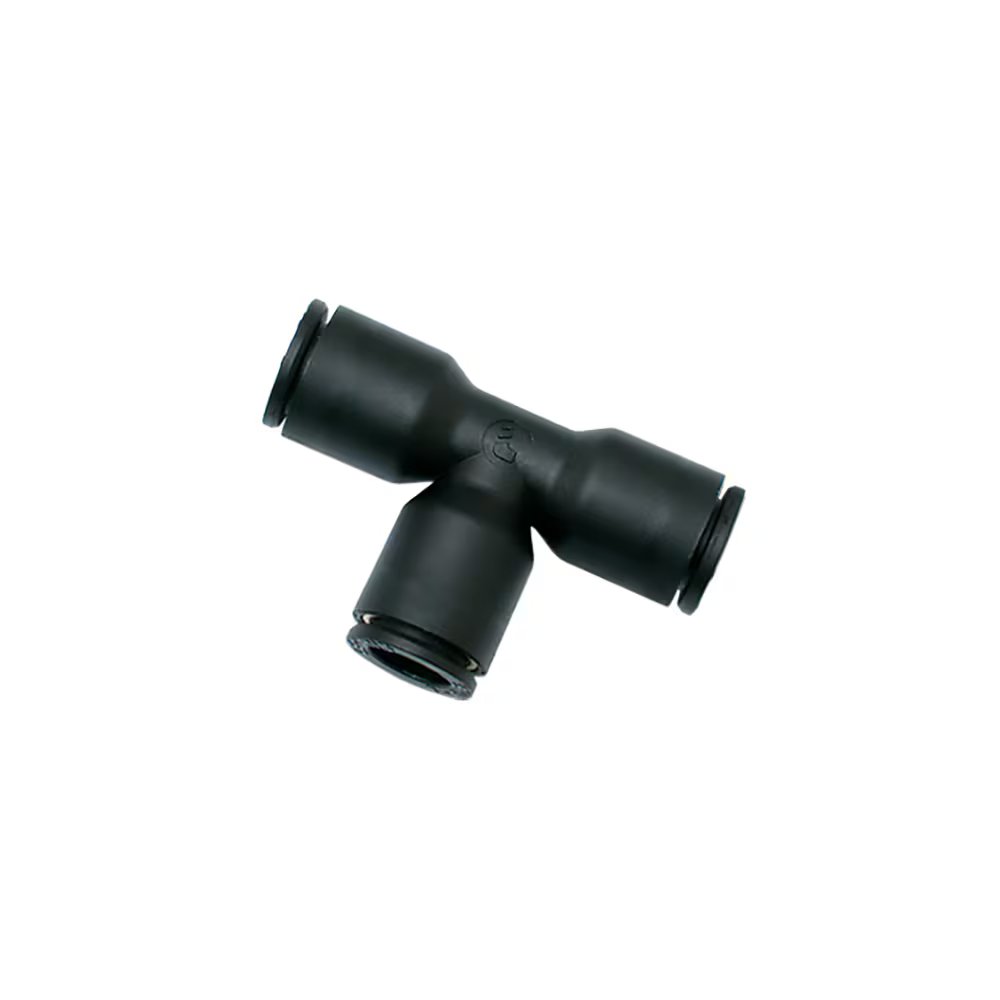

3104 16 12 by Parker | Legris Push-In Fitting | 16 mm Push-to-Connect x 12 mm Push-to-Connect | 78 mm Length | Tee | Polymer | Pack of 5

3104 16 12 by Parker | Legris Push-In Fitting | 16 mm Push-to-Connect x 12 mm Push-to-Connect | 78 mm Length | Tee | Polymer | Pack of 5

Sale price$208.55
Quantity Price Each
50–99 $187.70
100+ $166.84
Discounts applied at checkout.

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3104 Equal and Unequal Tee

Package Quantity: 5 Units

Product Data:

Brand:
  • LF 3000®
Series:
  • 3104 Series
Shape:

Tee
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD ØD1 G H L/2 Kg
3104 03 00 3 mm 3 mm 8.5 mm 19 mm 14.5 mm .004 Kg
3104 04 00 4 mm 4 mm 8.5 mm 19 mm 14.5 mm .002 Kg
3104 04 06 4 mm 6 mm 10.5 mm 22.5 mm 17.5 mm .007 Kg
3104 06 04 6 mm 4 mm 10.5 mm 22.5 mm 17.5 mm .005 Kg
3104 06 00 6 mm 6 mm 10.5 mm 22.5 mm 17.5 mm .003 Kg
3104 06 08 6 mm 8 mm 13.5 mm 29.5 mm 23 mm .015 Kg
3104 08 06 8 mm 6 mm 13.5 mm 29.5 mm 23 mm .009 Kg
3104 08 00 8 mm 8 mm 13.5 mm 29.5 mm 23 mm .006 Kg
3104 08 10 8 mm 10 mm 16 mm 34.5 mm 26.5 mm .020 Kg
3104 10 08 10 mm 8 mm 16 mm 34.5 mm 26.5 mm .014 Kg
3104 10 00 10 mm 10 mm 16 mm 34.5 mm 26.5 mm .009 Kg
3104 10 12 10 mm 12 mm 19 mm 40.5 mm 31 mm .033 Kg
3104 12 10 12 mm 10 mm 19 mm 40.5 mm 31 mm .023 Kg
3104 12 00 12 mm 12 mm 19 mm 40.5 mm 31 mm .014 Kg
3104 14 08 14 mm 8 mm 22 mm 46 mm 35.5 mm .054 Kg
3104 14 00 14 mm 14 mm 22 mm 26 mm 35.5 mm .022 Kg
3104 16 12 16 mm 12 mm 27 mm 52.5 mm 39 mm .088 Kg
3104 16 00 16 mm 16 mm 27 mm 52 mm 39 mm .063 Kg
