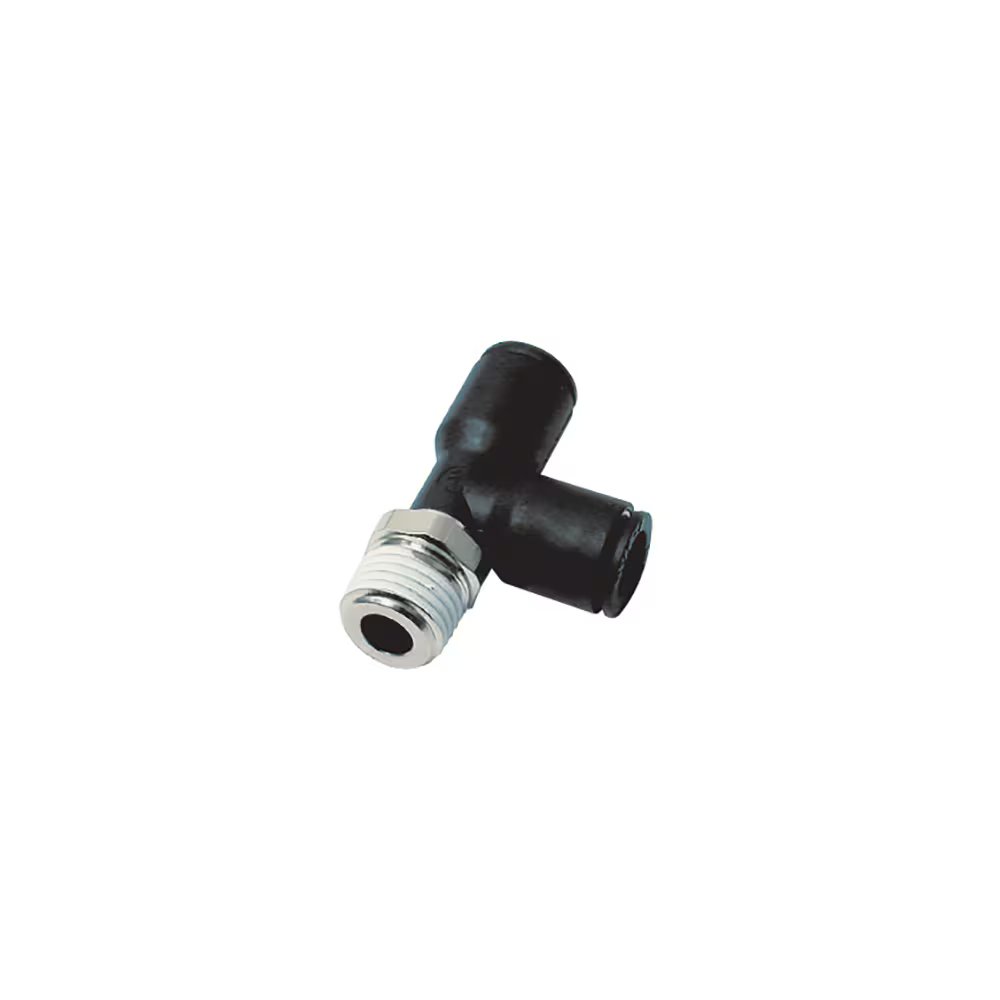

3103 08 11 by Parker | LF3000® Push-to-Connect Fittings | 5/16" Push-to-Connect x 5/16" Push-to-Connect x 1/8" Male NPT Thread | 11 mm Hex | Tee | Nylon | Pack of 10

3103 08 11 by Parker | LF3000® Push-to-Connect Fittings | 5/16" Push-to-Connect x 5/16" Push-to-Connect x 1/8" Male NPT Thread | 11 mm Hex | Tee | Nylon | Pack of 10

Sale price$91.87

by Parker Hannifin
LF3000® Push-to-Connect Fittings:3102 - unequal union elbow fractional inch tube to tube

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $86.36
20–59 $78.09
60+ $68.90
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3103 Series
Shape:

Tee
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD NPT / UNF (C) F G H H1 L Oz
3103 53 20 1/8" 10-32 8 mm .33" .92" .35" .57" .19 Oz
3103 53 08 1/8" 1/16" 10 mm .33" .93" .35" .57" .24 Oz
3103 53 11 1/8" 1/8" 11 mm .33" .93" .35" .57" .31 Oz
3103 04 20 1/8" 10-32 8 mm .33" 1.02" .45" .57" .18 Oz
3103 04 11 5/32" 1/"8 11 mm .33" .93" .53" .57" .32 Oz
3103 04 14 5/32" 1/4" 14 mm .33" .94" .37" .57" .64 Oz
3103 55 11* 3/16" 1/8" 11 mm .45" 1.31" .45" .85" .63 Oz
3103 56 11 1/4" 1/8" 11 mm .43" 1.16" .45" .69" .39 Oz
3103 56 14 1/4" 1/4" 14 mm .43" 1.12" .41" .69" .58 Oz
3103 56 18 1/4" 3/8" 18 mm .43" 1.14" .43" .69" .84 Oz
3103 08 11 5/16" 1/8" 11 mm .53" 1.38" .49" .91" .50 Oz
3103 08 14 5/16" 1/4" 14 mm .53" 1.34" .45" .91" .69 Oz
3103 08 18 5/16" 3/8" 18 mm .53" 1.36" .47" .91" .97 Oz
3103 60 11 3/8" 1/8" 15 mm .63" 1.63" .60" 1.04" .81 Oz
3103 60 14 3/8" 1/4" 15 mm .63" 1.63" .60" 1.04" .81 Oz
3103 60 18 3/8" 3/8" 18 mm .63" 1.60" .55" 1.04" 1.19 Oz
3103 60 22 3/8" 1/2" 22 mm .63" 1.63" .59" 1.04" 1.97 Oz
3103 62 14 1/2" 1/4" 20 mm .87" 2.17" .79" 1.38" 1.85 Oz
3103 62 18 1/2" 3/8" 20 mm .87" 2.17" .79" 1.38" 1.93 Oz
3103 62 22 1/2" 1/2" 24 mm .87" 2.07" .79" 1.38" 2.19 Oz
