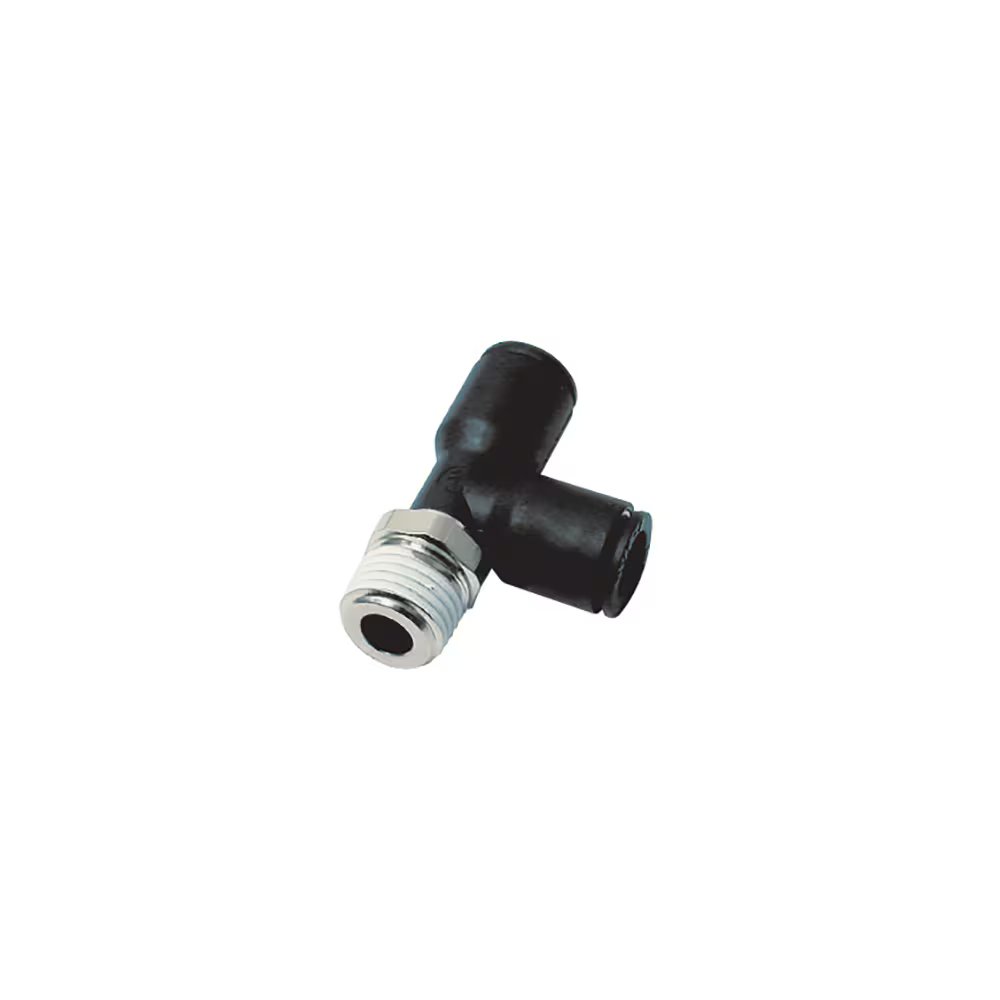

3103 06 10 by Parker | Legris Stud Fitting | 6 mm Push-to-Connect x 1/8" Male Swivel BSPT Thread | 10 mm Hex | Tee | Polymer | Pack of 10

3103 06 10 by Parker | Legris Stud Fitting | 6 mm Push-to-Connect x 1/8" Male Swivel BSPT Thread | 10 mm Hex | Tee | Polymer | Pack of 10

Sale price$75.90

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3103 Stud Run Tee, BSPT Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $71.35
20–59 $64.52
60+ $56.93
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3103 Series
Shape:

Tee
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C F G H H1 L Kg
3103 04 10 4 mm 1/8" 10 mm 8.5 mm 23.5 mm 9 mm 14.5 mm .006 Kg
3103 04 13 4 mm 1/4" 14 mm 8.5 mm 24 mm 9.5 mm 14.5 mm .015 Kg
3103 06 10 6 mm 1/8" 10 mm 10.5 mm 27.5 mm 10 mm 17.5 mm .007 Kg
3103 06 13 6 mm 1/4" 14 mm 10.5 mm 28 mm 10.5 mm 17.5 mm .016 Kg
3103 08 10 8 mm 1/8" 10 mm 13.5 mm 35 mm 12 mm 23 mm .009 Kg
3103 08 13 8 mm 1/4" 14 mm 13.5 mm 34 mm 11 mm 23 mm .015 Kg
3103 08 17 8 mm 3/8" 17 mm 13.5 mm 34 mm 11 mm 23 mm .020 Kg
3103 10 13 10 mm 1/4" 15 mm 16 mm 40.5 mm 14 mm 26.5 mm .017 Kg
3103 10 17 10 mm 3/8" 17 mm 16 mm 40.5 mm 14 mm 26.5 mm .022 Kg
3103 10 21 10 mm 1/2" 21 mm 16 mm 40.5 mm 14 mm 26.5 mm .035 Kg
3103 12 13 12 mm 1/4" 15 mm 19 mm 46.5 mm 15.5 mm 31 mm .021 Kg
3103 12 17 12 mm 3/8" 17 mm 19 mm 46.5 mm 15.5 mm 31 mm .026 Kg
3103 12 21 12 mm 1/2" 21 mm 19 mm 46.5 mm 15.5 mm 31 mm .041 Kg
3103 14 21 14 mm 1/2" 24 mm 22 mm 52.5 mm 17.5 mm 35.5 mm .049 Kg
3103 16 17 16 mm 3/8" 27 mm 27 mm 78 mm 27 mm 38.5 mm .126 Kg
3103 16 21 16 mm 1/2" 27 mm 27 mm 78 mm 27 mm 38.5 mm .124 Kg

Pre-coated thread

The body swivels for positioning purposes.
