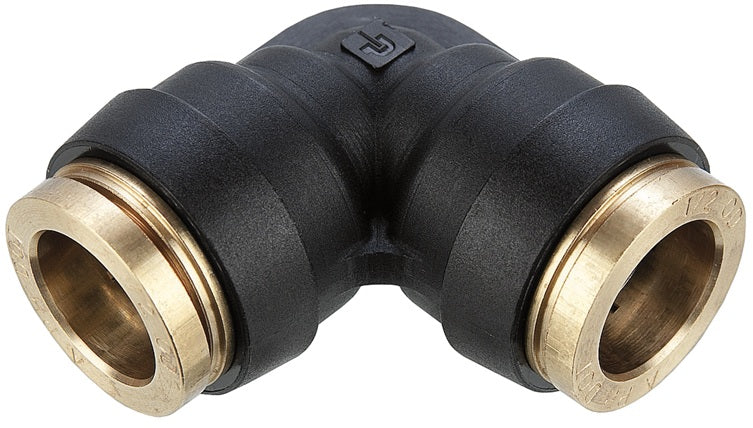

31020400DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Union 90° Elbow | 5/32" Tube OD | Brass Body/Composite

31020400DOT Legris by Dixon Valve | D.O.T. Push-In Fitting | Union 90° Elbow | 5/32" Tube OD | Brass Body/Composite

Sale price$28.71
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Suitable fluids: compressed air only.
  • Full 360° rotation, but lock into place preventing accidental movement of fitting.
  • 3/8" and below can be rotated with your hands; 1/2" and above require a wrench for rotating.
Materials:
  • Composite body (Unless noted below)
  • Brass collet
  • Stainless steel tube support
  • Brass threads
  • Nitrile Rubber seal
Specifications:
  • Maximum operating pressure: 250 PSI at ambient temperature 70°F (21°C)
  • Temperature range: -40°F to 200°F (-40°C to 93°C)
Approvals:
  • 5/32" diameter meets D.O.T. FMVSS571.106, SAE J2494, and SAE J2494-3.
  • 1/4", 3/8", and 1/2" diameters meet D.O.T. FMVSS571.106, SAE J1131, and SAE J2494-3.
  • 5/32" and 3/16" have a black button.
Part Number Tube O.D.
31020400DOT* 5/32"
31025600DOT 1/4"
31026000DOT 3/8"
31026200DOT 1/2"

* Brass body

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 5/32in Push-to-Connect
  • 5/32in Push-to-Connect
  • Some Ends Match
Material(s):
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
