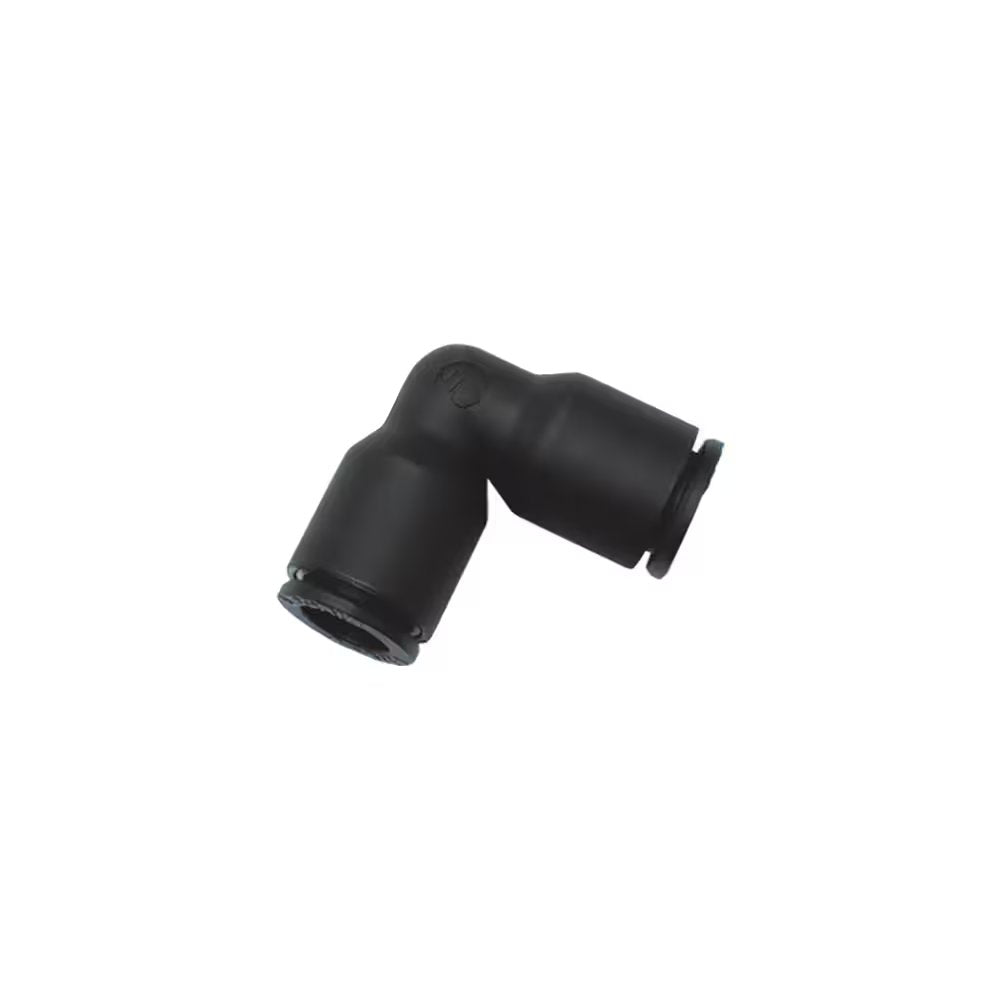

3102 53 56 by Parker | Unequal Union | 1/8" Push-to-Connect x 1/4" Push-to-Connect | .93" Length | 90° Elbow | Nylon | Pack of 10

3102 53 56 by Parker | Unequal Union | 1/8" Push-to-Connect x 1/4" Push-to-Connect | .93" Length | 90° Elbow | Nylon | Pack of 10

Sale price$63.21

by Parker Hannifin
LF3000® Push-to-Connect Fittings:3103 - male run tee fractional inch tube to tube to male NPT or UNF

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $59.42
40–79 $53.73
80+ $47.41
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3102 Series
Shape:

90° Elbow

Material(s):
  • Nickel-Plated Brass
  • Polymer
  • Stainless Steel
Product Features:
  • Stainless steel grab ring
  • Glass-reinforced nylon 6.6 body
  • Nitrile D-seal
  • Nylon release button
  • Corrosion and chemical resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone-Free
Markets:
  • Pneumatic
  • Industrial
  • Automation
  • Robotic
  • Printing
  • Packaging
  • Textile
Applications:
  • Air
  • Cutting Fluids
  • Inert Gases
  • Vacuum
Pressure Range
  • Up to 290 psi (20 bar)
    3/16" diameter up to 260 psi (8 bar) Maximum working pressure and temperature range are dependent on the type of tubing used
Temperature Range
  • -4° to +175° F (-20° to +80° C)
    3/16" diameter 5° to +155° F (-15° to +68° C)
Vacuum Capability
  • 28" Hg
Part Number ØD1 ØD2 G1 G2 L Oz
3102 53 56 1/8" 1/4" .43" .93" .93" .20 Oz
3102 04 56 5/32" 1/4" .43" .93" .93" .25 Oz
3102 60 56 3/8" 1/4" .63" 1.30" 1.33" .50 Oz
3102 60 62 3/8" 1/2" .87" 1.81" 1.81" .65 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
